Coalbrook Zurich 3TH Wall Mounted Basin Mixer (190mm Spout) ZU1011

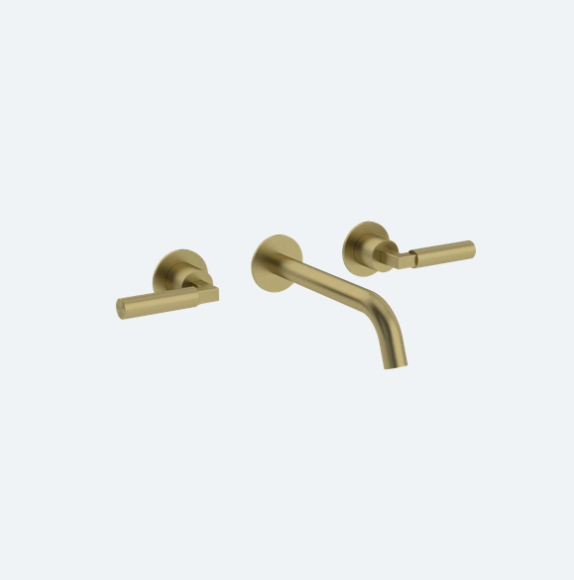

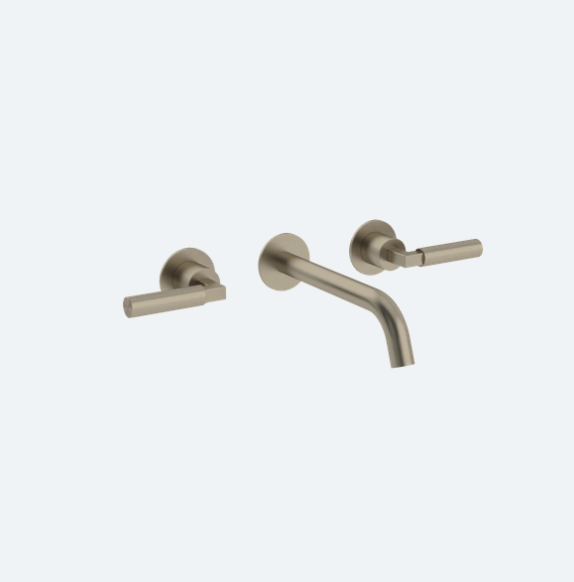

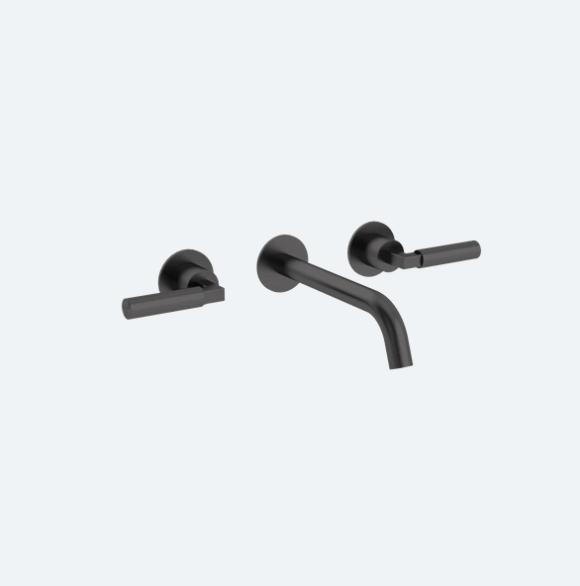

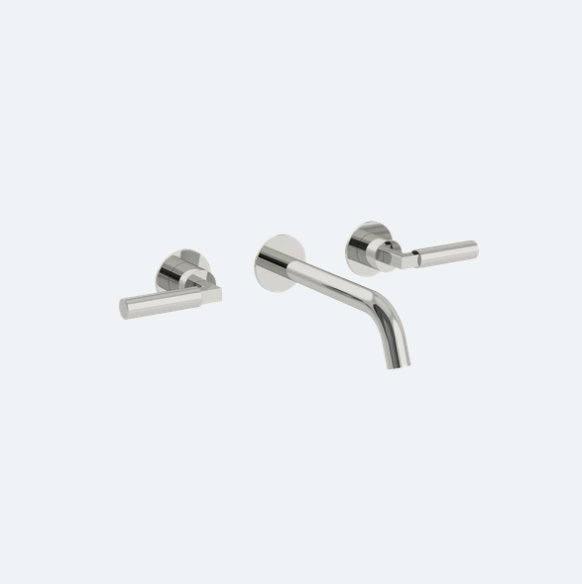

The Coalbrook Zurich ZU1011 is the wall mounted three-hole Zurich with a 190mm spout projection. Zurich is an ode to Swiss precision — round levers with a square handle fitted into a round hole, every turn precisely mapped. Available in 4 finishes: Brushed Brass, Chrome, Gunmetal and Brushed Nickel.

Home of Clay is a Coalbrook stockist, with the range on display at our Newcastle-under-Lyme showroom in Staffordshire.

Key features

• 190mm spout projection — The ZU1008 gives 165mm for a standard basin depth.
• Rough required, ordered separately — This mixer needs the CO1301 rough, which is not supplied with the tap.
• Square handle in a round hole — Zurich’s defining detail, and the reason the range reads as precise rather than merely plain.
• Coalescence lever options — Zurich levers can be specified in fine china, made in England, with twenty-four body and lever finish combinations. Ask us for the current options.

The rough is a separate order

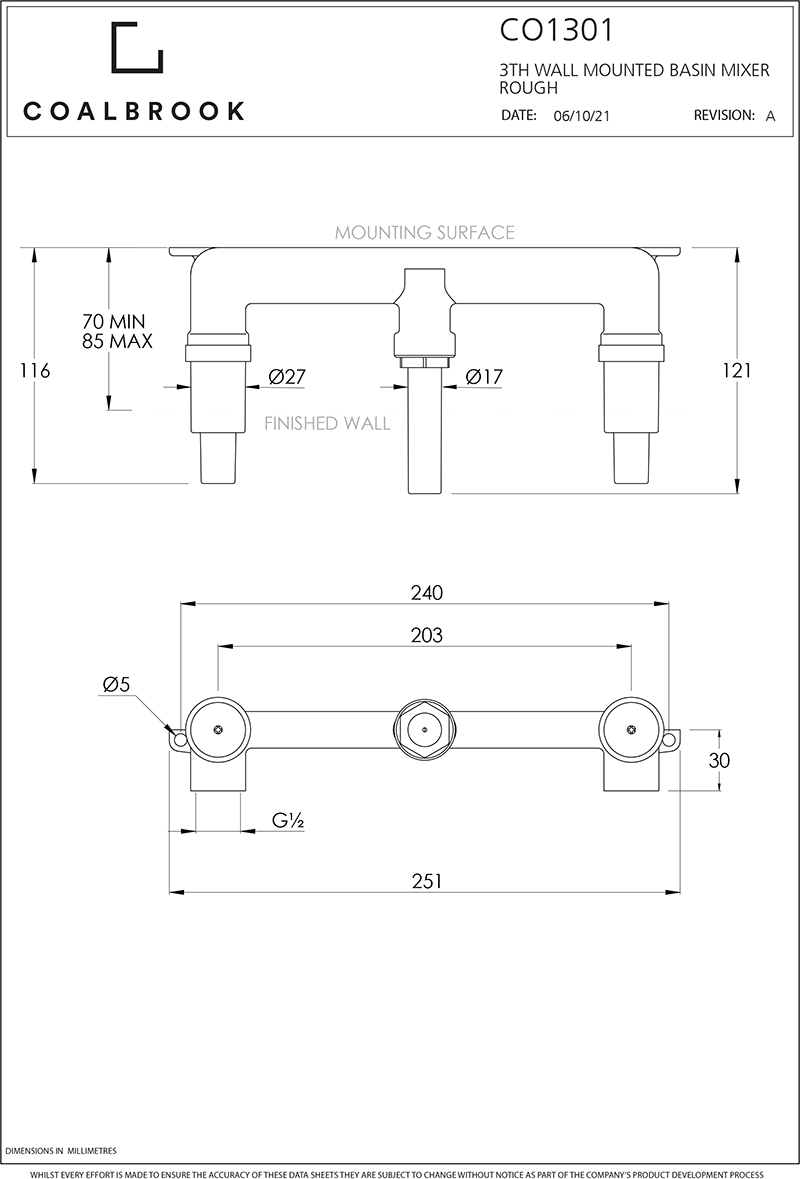

Every 3TH wall mounted basin mixer needs the CO1301 rough, and it is not included with the mixer. This is the part that catches people out: the rough goes into the wall at first fix, weeks before the visible brassware arrives. Order the mixer alone and the plumber turns up to a wall with nothing to install.

When you ask us to quote this mixer we will check the rough is on the order and quote both together. You can also see the CO1301 here.

Specifying the ZU1011

Measure from the finished wall face rather than the blockwork. Tile and adhesive can take 15mm or more off the effective projection, which is the difference between water landing centrally and landing at the back of the bowl.

Three wall penetrations have to line up with the basin below, a tighter tolerance than any deck mounted tap. Send us the basin model and the counter height and we will check the setting-out before anything is ordered.

A wall mounted tap clears the counter but leaves the pipework below the basin on show. The CO5004 exposed bottle trap in a matching finish stops being optional.

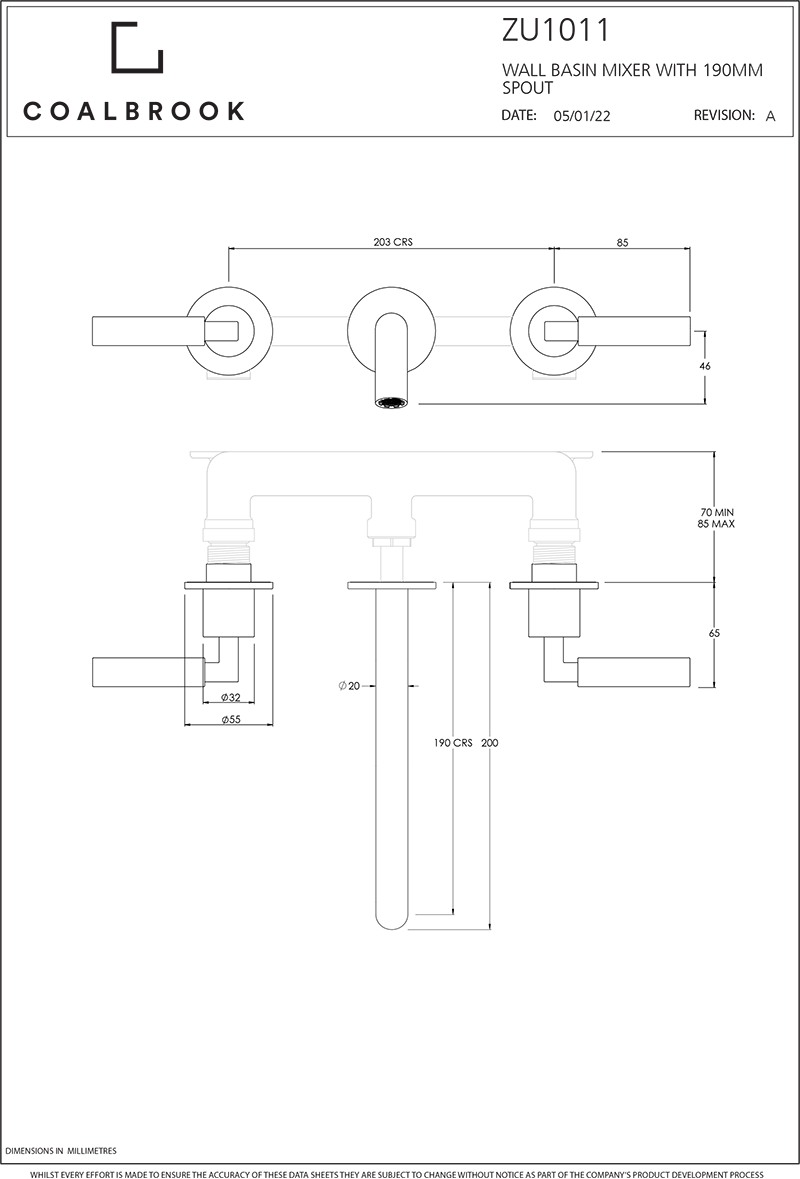

Technical specification

Pricing and availability

Contact us for price. Ask for Matt or Greg on 01782 617517 or email sales@homeofclay.co.uk with the finish you want, and we will come back to you the same working day with a price for the mixer and the rough together.
