Coalbrook Zurich 2TH Wall Mounted Basin Mixer with Plate ZU1009
Tell us the finish you want and we'll reply the same working day with a price and lead time.
- Free deliveryon orders over £500
- Price matchguarantee
- Expert adviceavailable
Product description

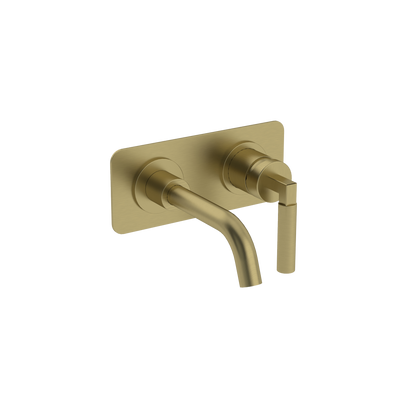

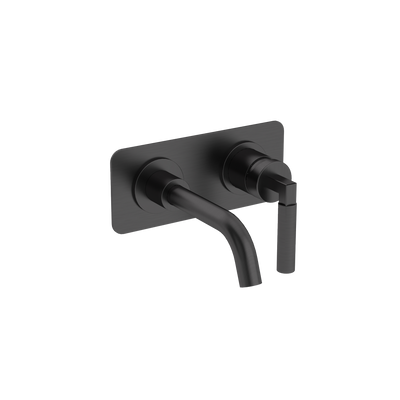

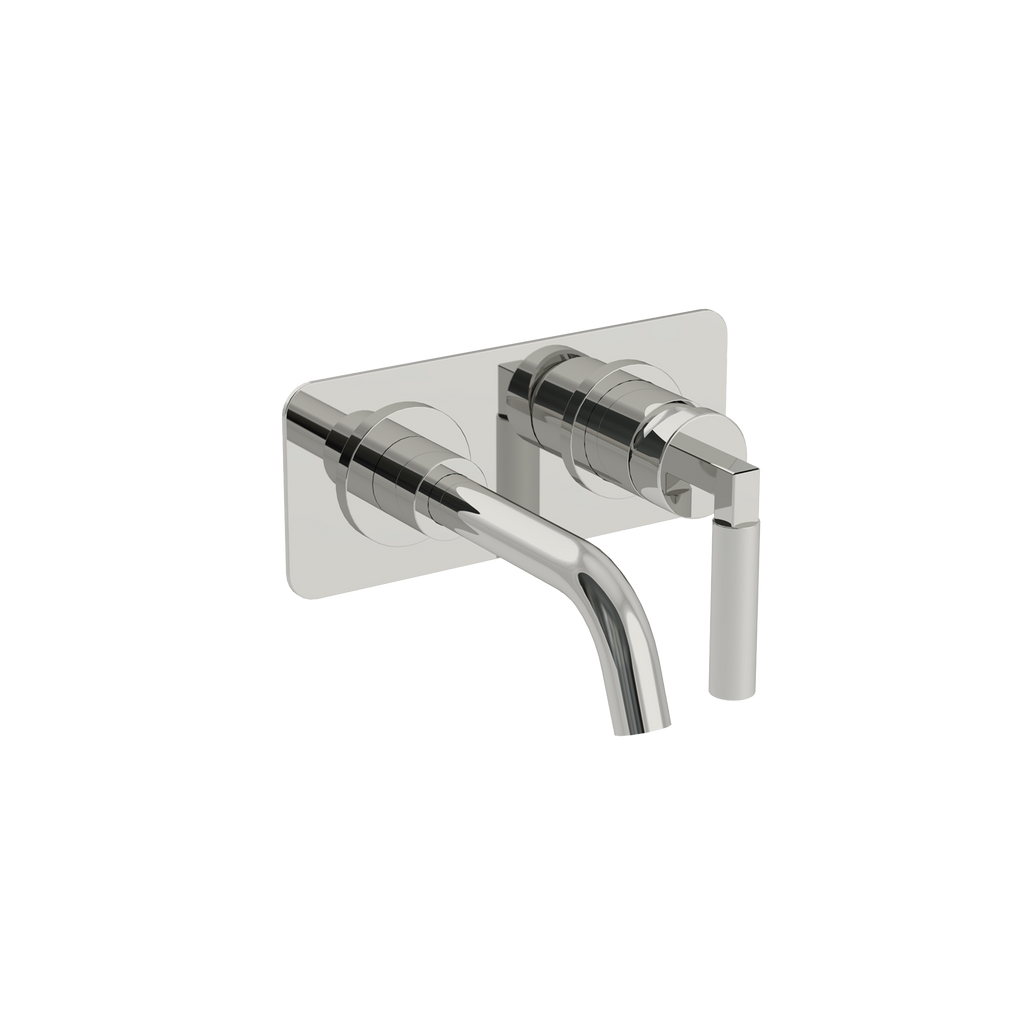

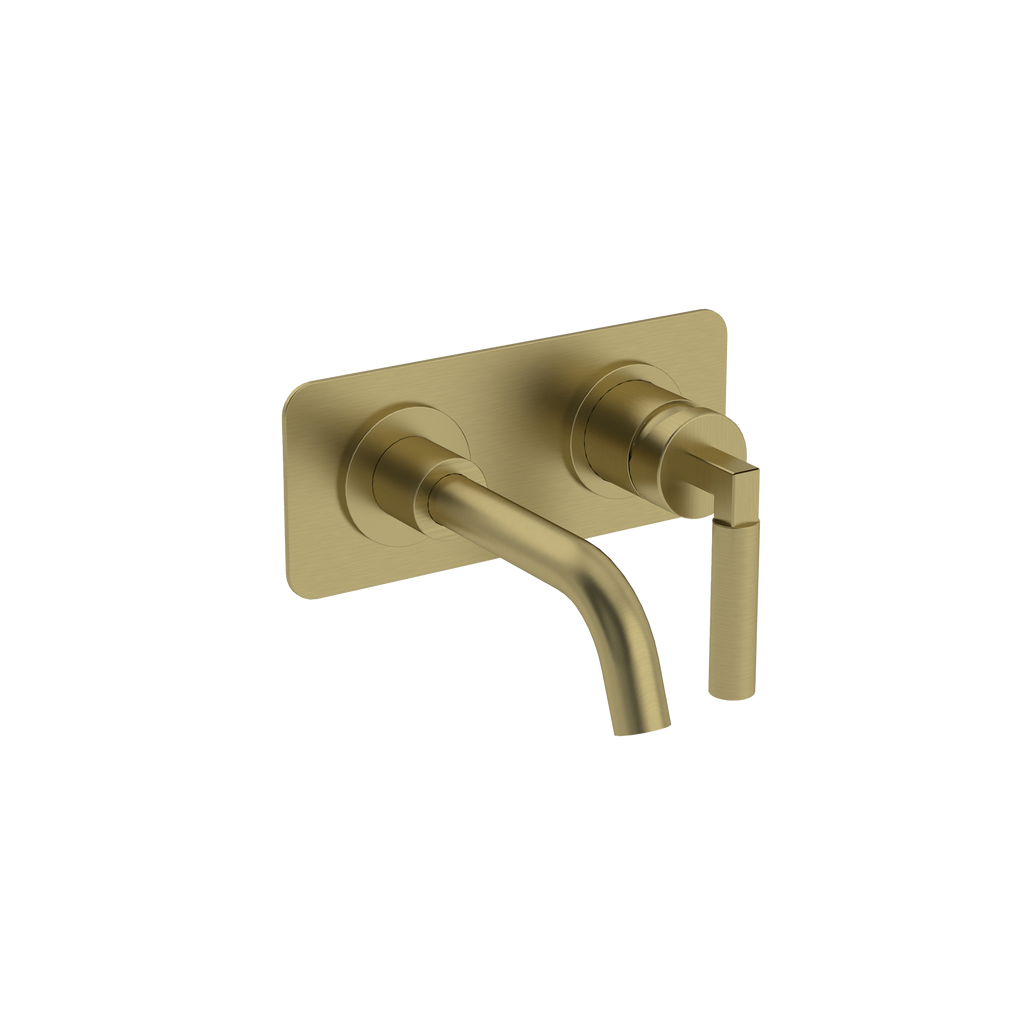

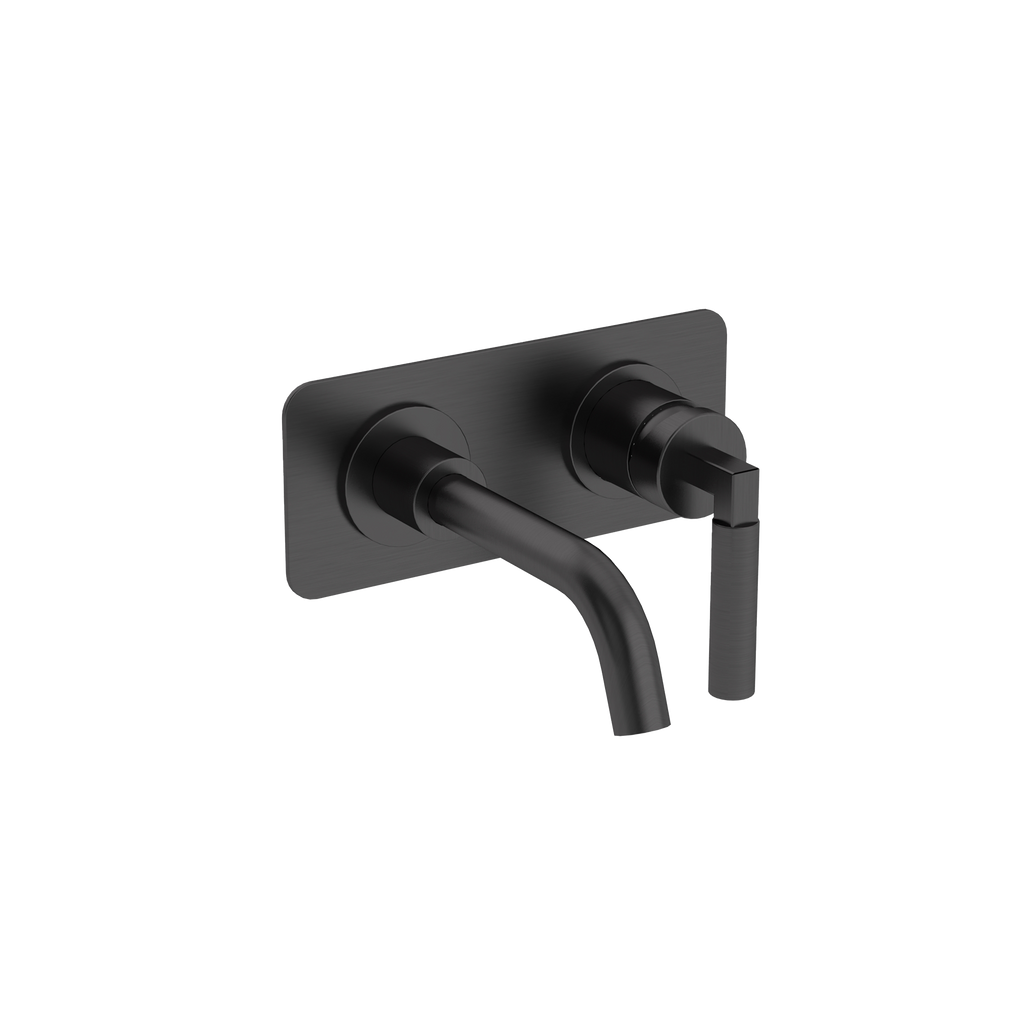

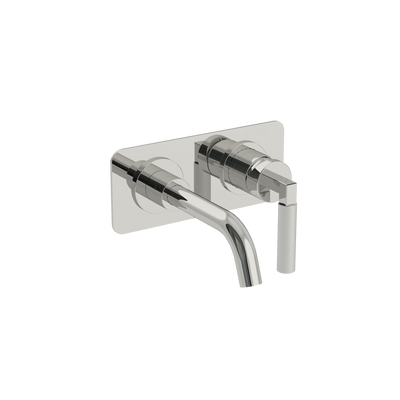

The Coalbrook Zurich ZU1009 is the 2 tap hole basin mixer with plate in the Zurich range, carrying the product code ZU1009. Zurich is the sharpest and most geometric of the four Coalbrook ranges, and the one that offers ceramic handle options alongside the metal levers. Available in 4 finishes: Brushed Brass, Chrome, Gunmetal and Brushed Nickel.
Home of Clay is a Coalbrook stockist, with the range on display at our Newcastle-under-Lyme showroom in Staffordshire.
The rough is a separate order
The 2TH wall mounted basin mixers need the CO1201 rough, and it is not included with the mixer. The rough goes into the wall at first fix, weeks before the visible brassware arrives, so it has to be on the order from the start. Order the mixer alone and the plumber turns up to a wall with nothing to install.
When you ask us to quote this mixer we will check the rough is on the order and quote both together. You can also see the CO1201 here.
Pricing and availability
Contact us for price. Ask for Matt or Greg on 01782 617517 or email sales@homeofclay.co.uk with the finish you want, and we will come back to you the same working day with a price and a lead time.
Key features
- Backplate supplied — Covers both wall penetrations in one piece rather than two separate escutcheons.
- First-fix installation — The concealed body goes into the wall before it is closed and tiled, weeks before the visible brassware arrives.
- Ceramic handle options — Zurich can be specified with ceramic handles as well as metal levers — ask us which options are current.
- Solid brass, hand-applied finish — Backed by Coalbrook’s manufacturer guarantee, which we confirm in writing when we quote.
- Rough required, ordered separately — This mixer needs the CO1201 rough, which is not supplied with the tap.
Technical information
- Brand
- Coalbrook
- Range
- Zurich
- Product code
- ZU1009
- Product type
- 2 tap hole basin mixer with plate, wall mounted
- Tap holes
- Two
- Supplied with
- Backplate
- Installation
- Concealed body, first fix required
- Approvals
- WRAS approved
- Rough
- CO1201 — required, ordered separately
- Construction
- Solid brass
- Finishes
- Brushed Brass, Chrome, Gunmetal, Brushed Nickel
- Availability
- From stock — confirm current lead time with us
- Price
- Contact us for price
- Product codes
- Brushed Brass ZU1009BB
- Chrome ZU1009CP
- Gunmetal ZU1009GM
- Brushed Nickel ZU1009BN
The plate is worth considering where pipework is going into an existing wall rather than new studwork. Separate escutcheons expose any misalignment between the two penetrations; a single plate hides it.
Wall mounted brassware is set out before the wall closes and cannot be adjusted afterwards. Send us the basin model and the counter height and we will check the setting-out with you before anything is ordered.
A wall mounted tap clears the counter but leaves the pipework below the basin on show. The CO5004 exposed bottle trap in a matching finish stops being optional.
Downloads
- Installation instructionsPDF – Manufacturer installation guide Download
