Impey Slimline Low Level Shower Tray (Various Sizes)
£593.29
Taxes included.
Shipping calculated at checkout.
SL358080
- Free deliveryon orders over £500
- Price matchguarantee
- Expert adviceavailable
Product description
The Impey Slimline is Impey's most versatile low-level shower tray, offering industry-leading average flow rates of 33 litres per minute. At just 35mm high it balances accessibility with exceptional drainage performance.
Slimline trays can be recessed into the floor or installed with perimeter ramps, and an offset waste position helps avoid underfloor obstructions. Supplied with a horizontal gravity drain as standard, or compatible with all other Impey tray drain options (pumped flow rate up to 8 l/min). 90mm drain aperture.
Lead time: 2–5 working days from order.
Key features
- Low-profile 35mm height
- Average flow rate of 33 l/min (tray size dependent); pumped up to 8 l/min
- Strong GRP construction supports up to 250kg (39 stone)
- Slip resistance classified to DIN 51097 Class A
- Offset waste to avoid underfloor obstructions
- Can be recessed into the floor

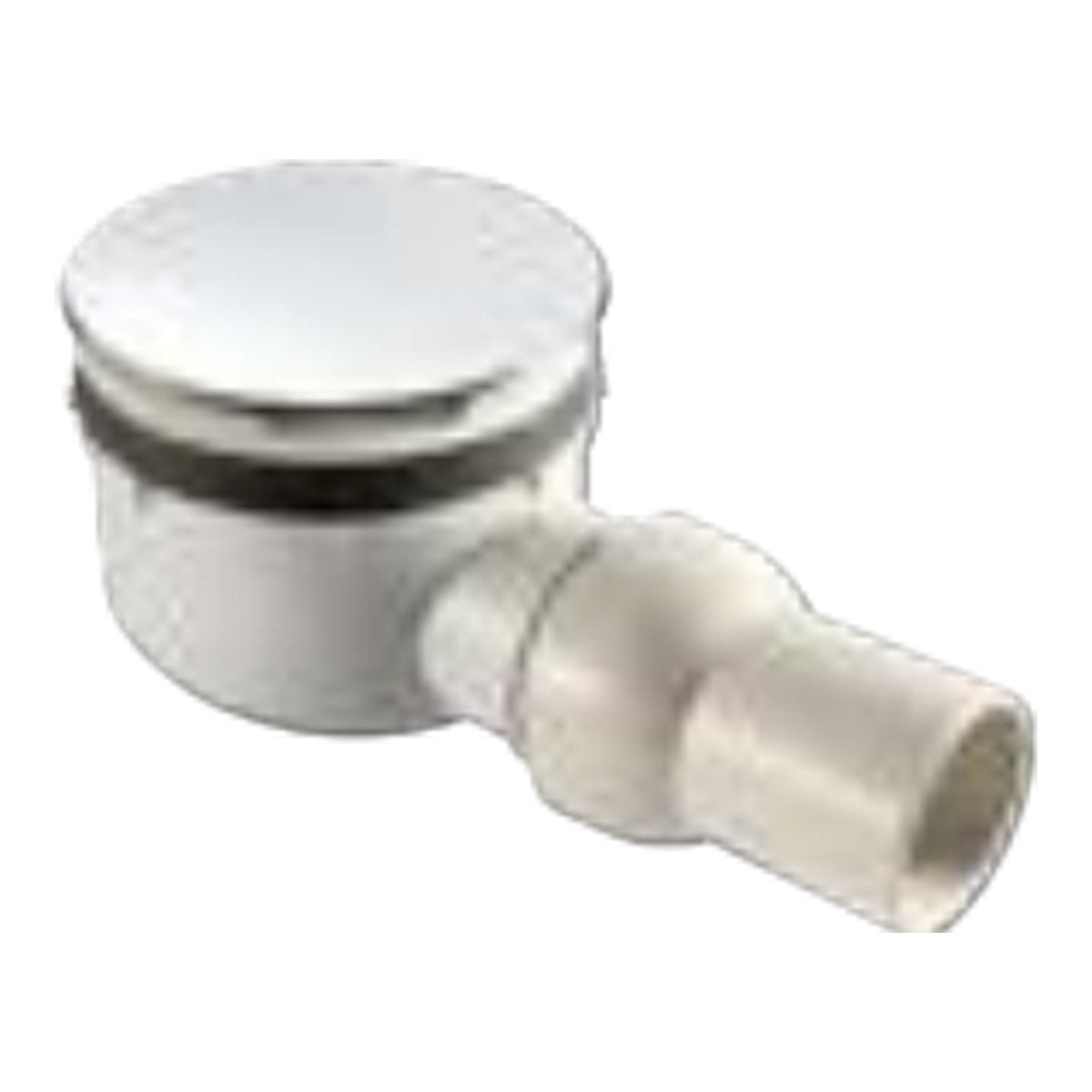

- Horizontal gravity drain supplied as standard

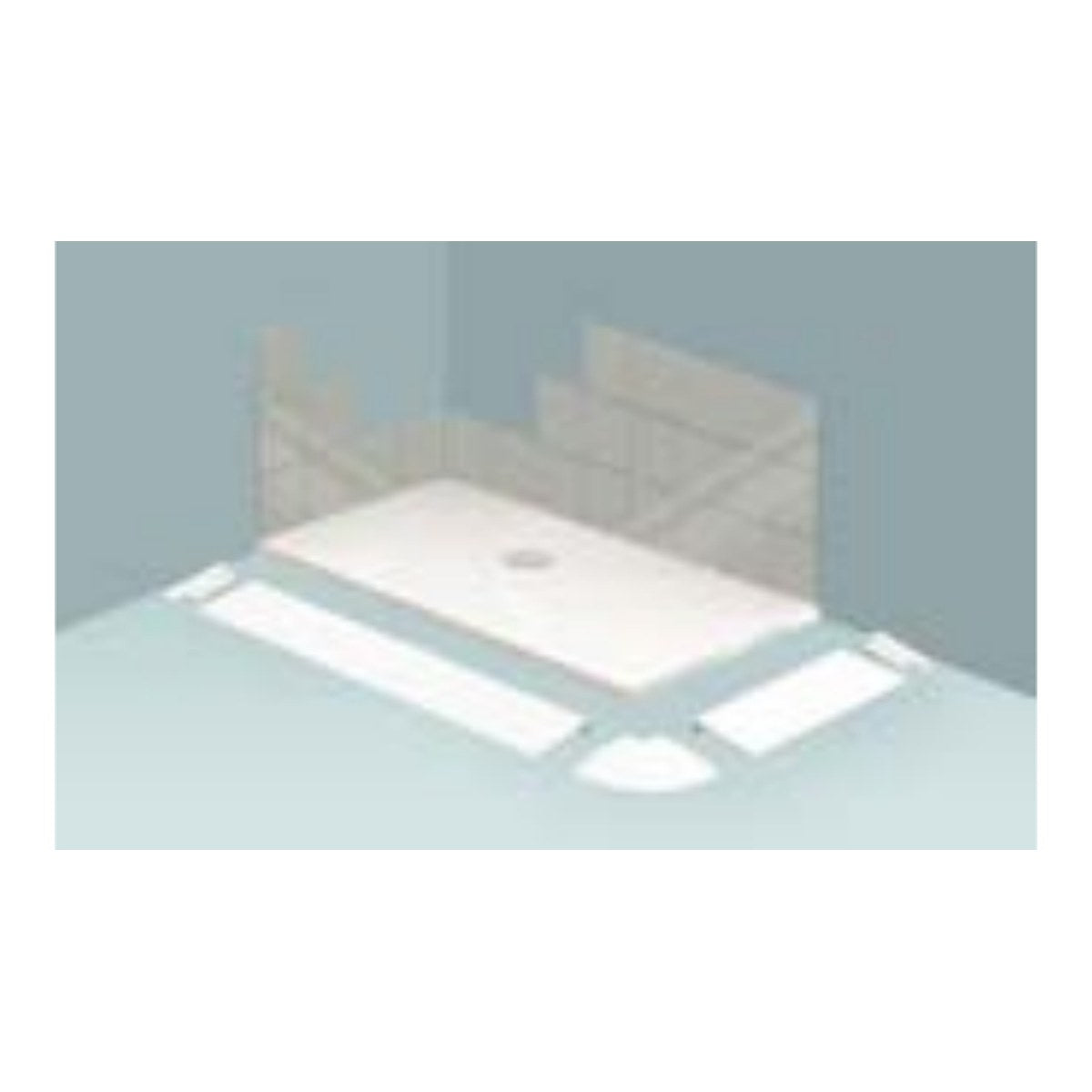

- Optional ramp kits, trimmable to suit tray size (2MR / 2MR KIT)
- Compatible with electric and mixer showers
- Self-adhesive waterproof Tiling Upstand included (3.5m roll, 120mm wide — code US12350)
- Designed to fit alongside Impey half-height shower doors and glass screens
- Lifetime Guarantee
Technical information
- Brand
- Impey
- Range
- Slimline
- Type
- Low-level shower tray

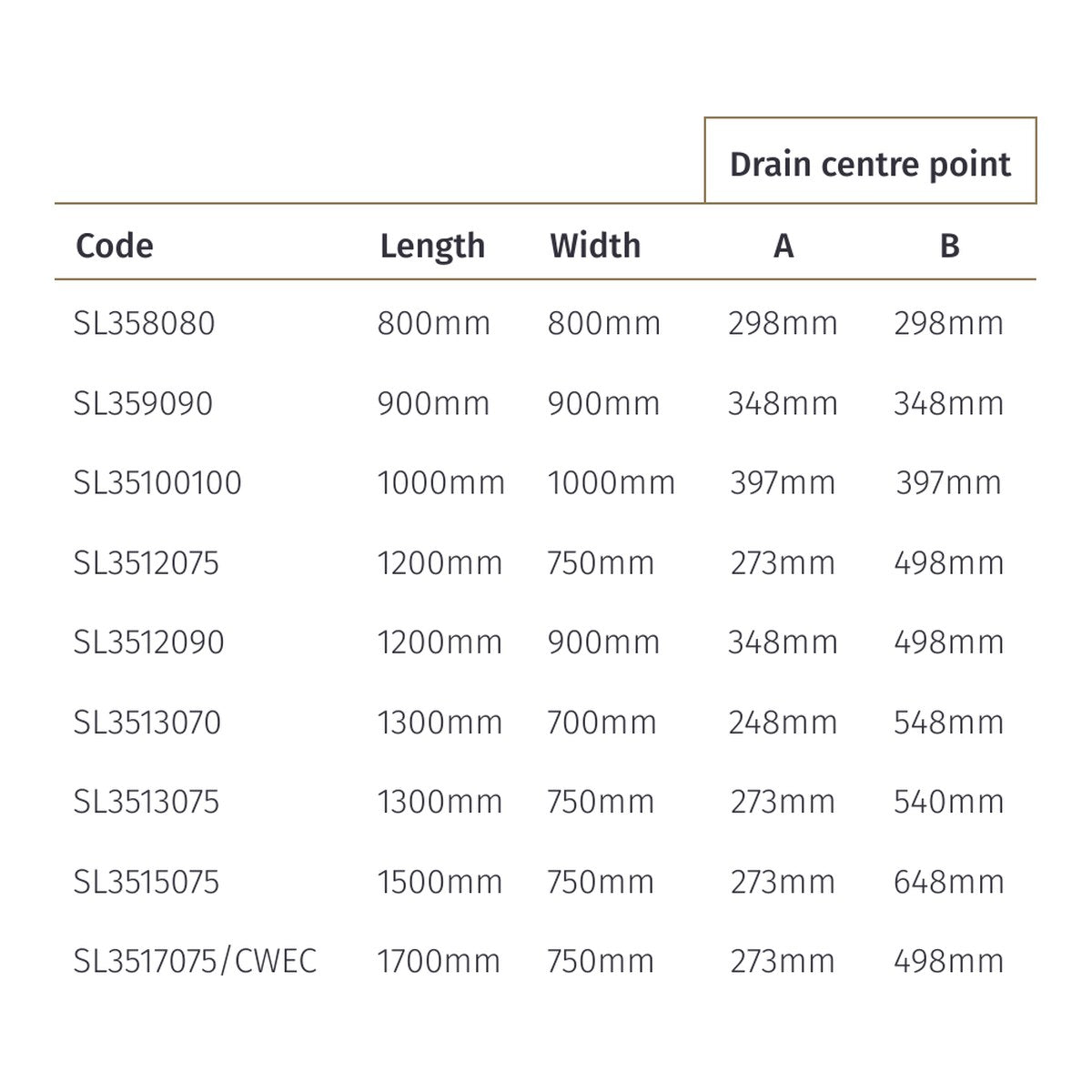

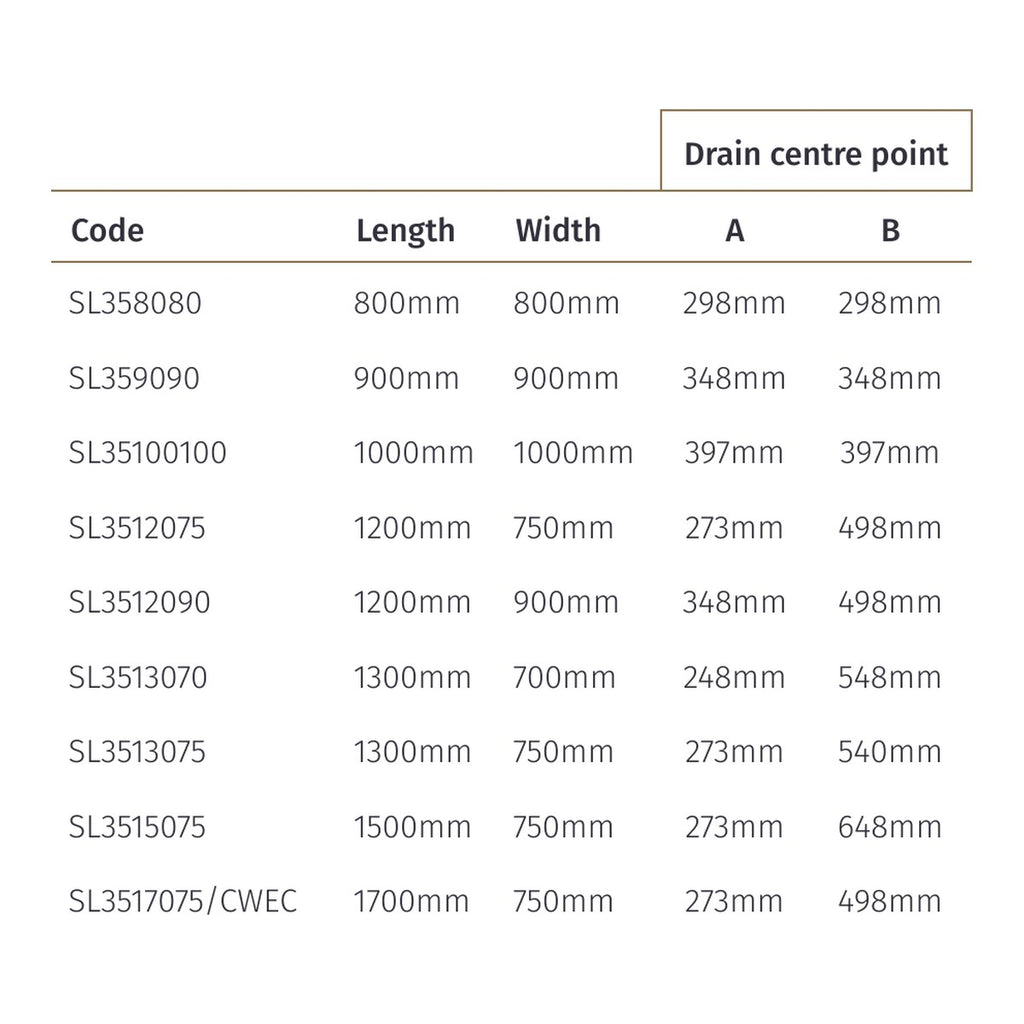

- Sizes

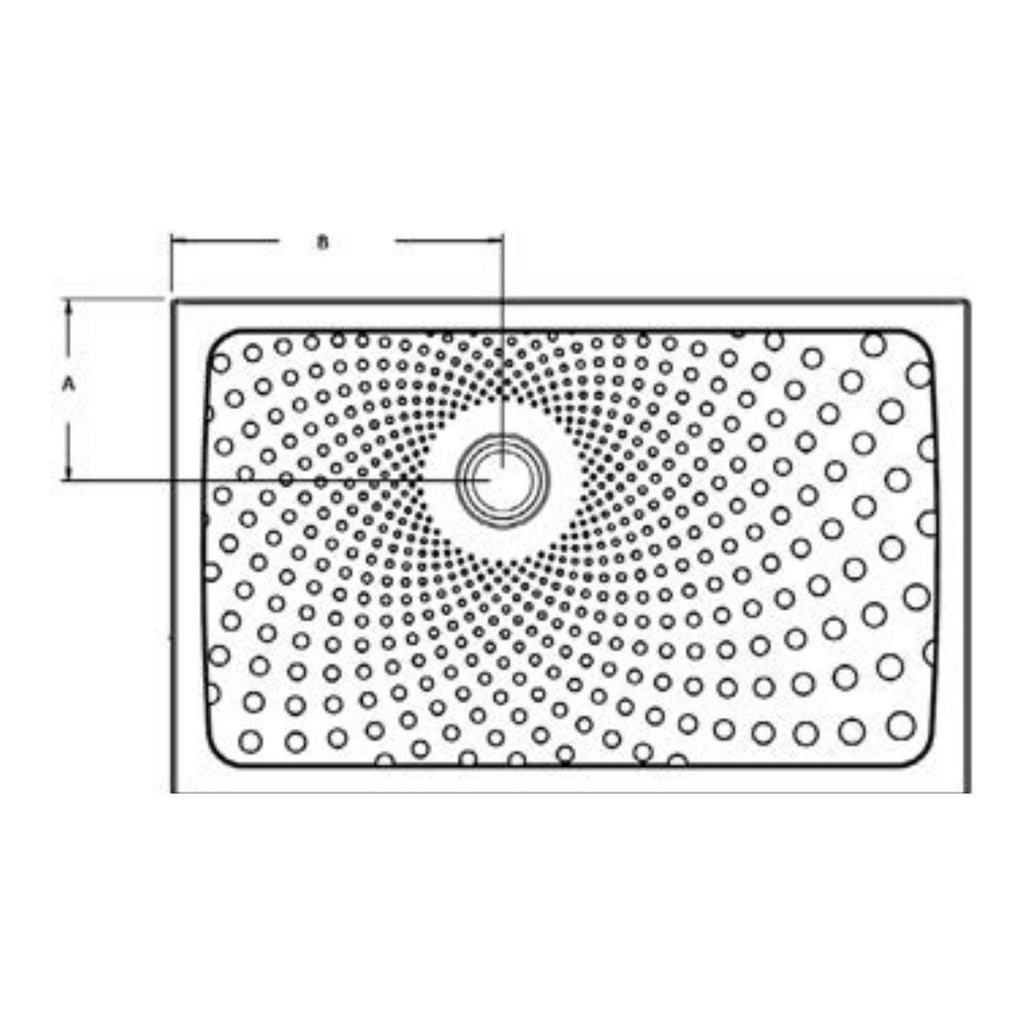

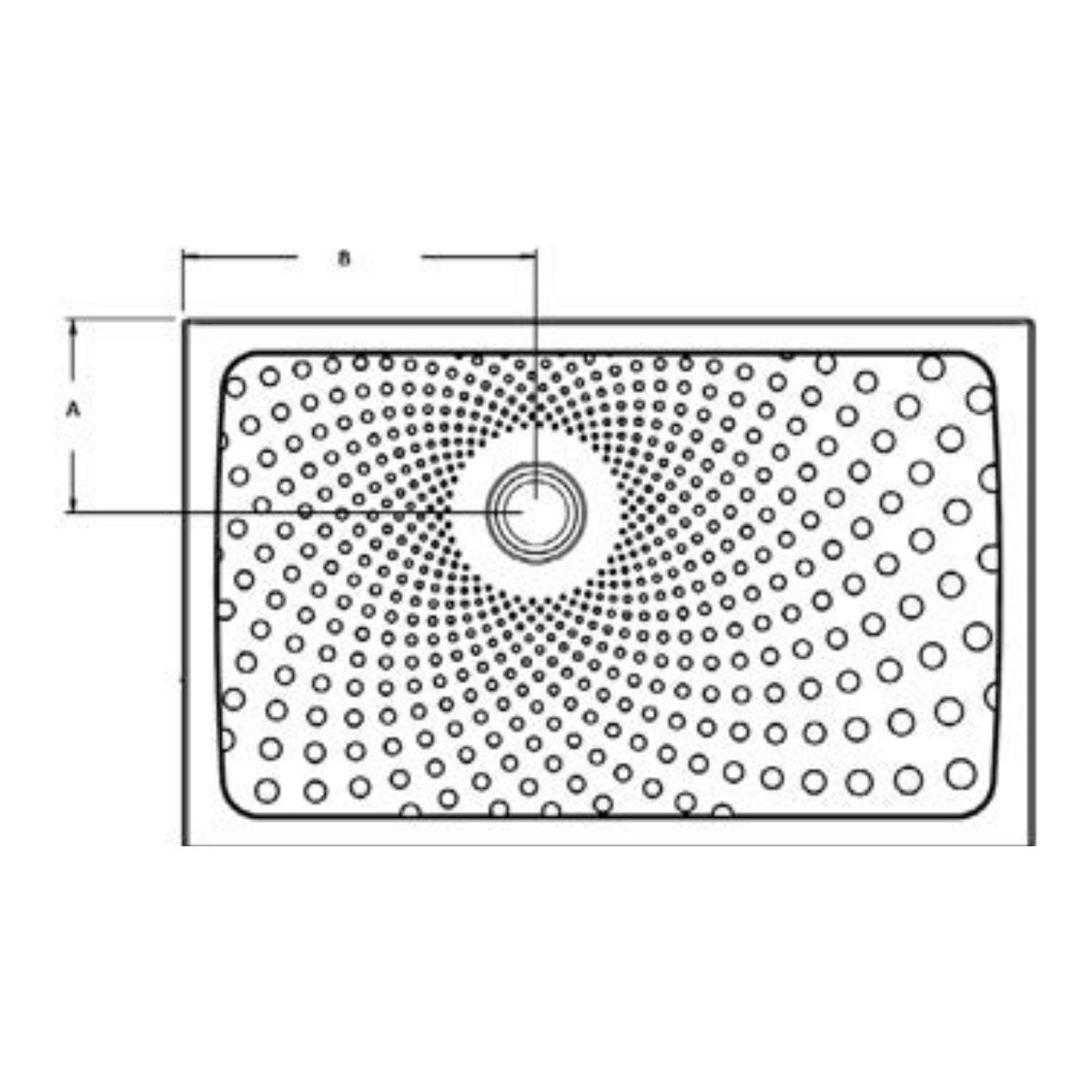

- SL358080: 800 x 800mm (drain centre A 298mm, B 298mm)
- SL359090: 900 x 900mm (drain centre A 348mm, B 348mm)
- SL35100100: 1000 x 1000mm (drain centre A 397mm, B 397mm)
- SL3512075: 1200 x 750mm (drain centre A 273mm, B 498mm)
- SL3512090: 1200 x 900mm (drain centre A 348mm, B 498mm)
- SL3513070: 1300 x 700mm (drain centre A 248mm, B 548mm)
- SL3513075: 1300 x 750mm (drain centre A 273mm, B 540mm)
- SL3515075: 1500 x 750mm (drain centre A 273mm, B 648mm)
- Height
- 35mm
- Material
- GRP
- Drainage
- Horizontal gravity drain supplied
- Average flow rate
- 33 l/min gravity (size dependent), 8 l/min pumped
- Drain aperture
- 90mm
- Maximum load
- 250kg (39 stone)
- Slip resistance
- DIN 51097 Class A
- Accessories
- SL35/EC75 750mm end cap; 2MR 2000mm ramp with 2 end caps; 2MR KIT ramp with end caps and corner
- Approvals
- CE tested to BS EN 14527
- Guarantee
- Lifetime
- Product codes
- 800 x 800mm SL358080
- 900 x 900mm SL359090
- 1000 x 1000mm SL35100100
- 1200 x 750mm SL3512075
- 1200 x 900mm SL3512090
- 1300 x 700mm SL3513070
- 1300 x 750mm SL3513075
- 1500 x 750mm SL3515075
Downloads
- Product data sheetPDF – Manufacturer product data sheet Download
