Impey Radiate Pumped Shower Tray

Product description

The Impey Radiate is a 40mm low-profile pumped shower tray for installations where gravity drainage isn't possible. All pipework is housed neatly within the depth of the tray, so there's no need to excavate or recess into the floor — ideal for multi-storey developments and refurbishments.

An acoustically tuned, ultra-quiet pumped drain and a water-channelling tread pattern direct water efficiently to the outlet, while the matte, slip-resistant surface gives confidence underfoot. Compatible with Whale waste pump systems; suitable for electric showers with a maximum flow rate of 8 l/min.

Lead time: 2–5 working days from order.

Key features

Low profile 40mm

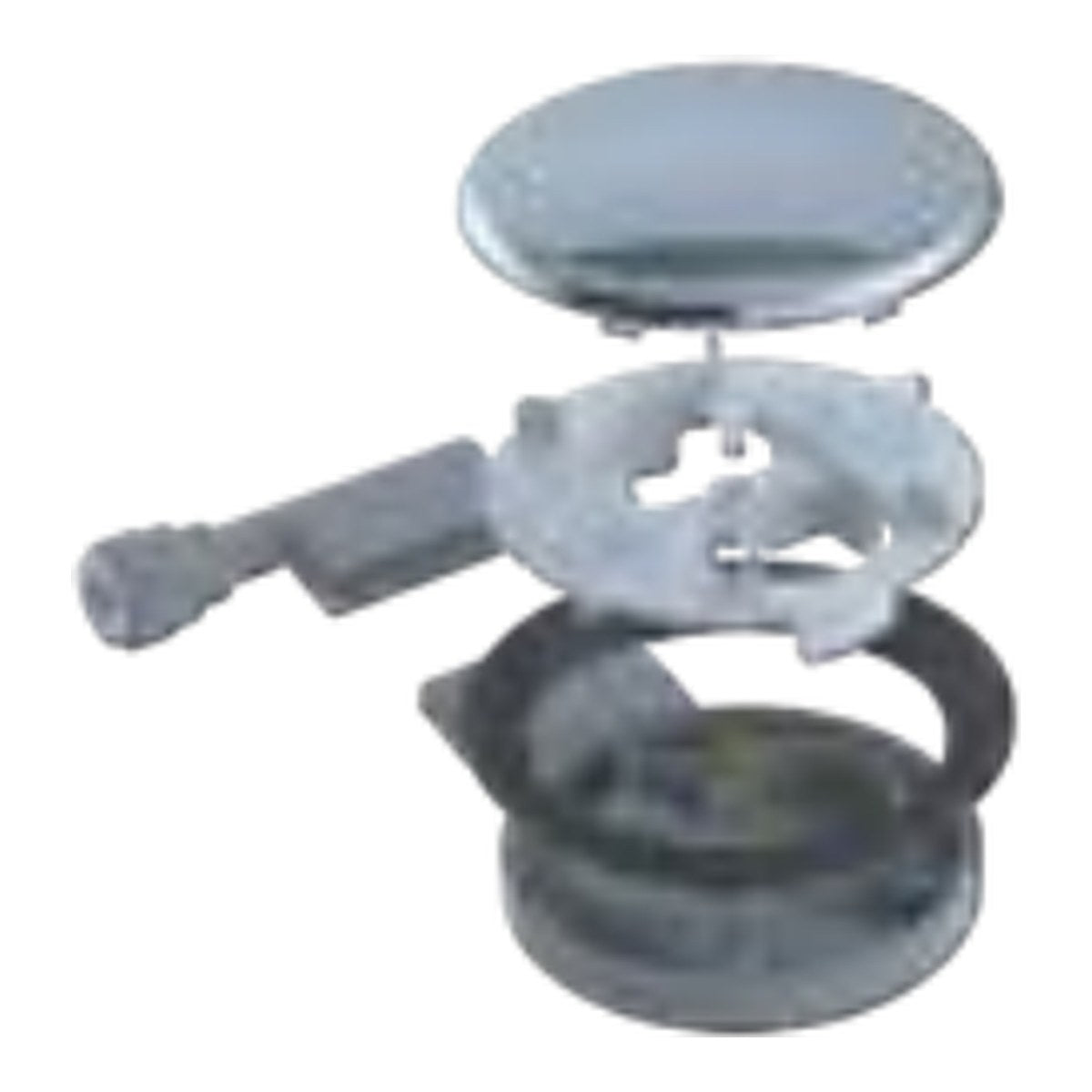

Dedicated ultra-quiet pumped drain supplied as standard (UTRC01/P V2)
Flow rate up to 8 l/min
Supports up to 300kg (47 stone)
Matte slip-resistant surface, classified to DIN 51097 Class B
Exit pipework from any side of the tray
Compatible with all Whale pumps
Easy-clean surface and gully

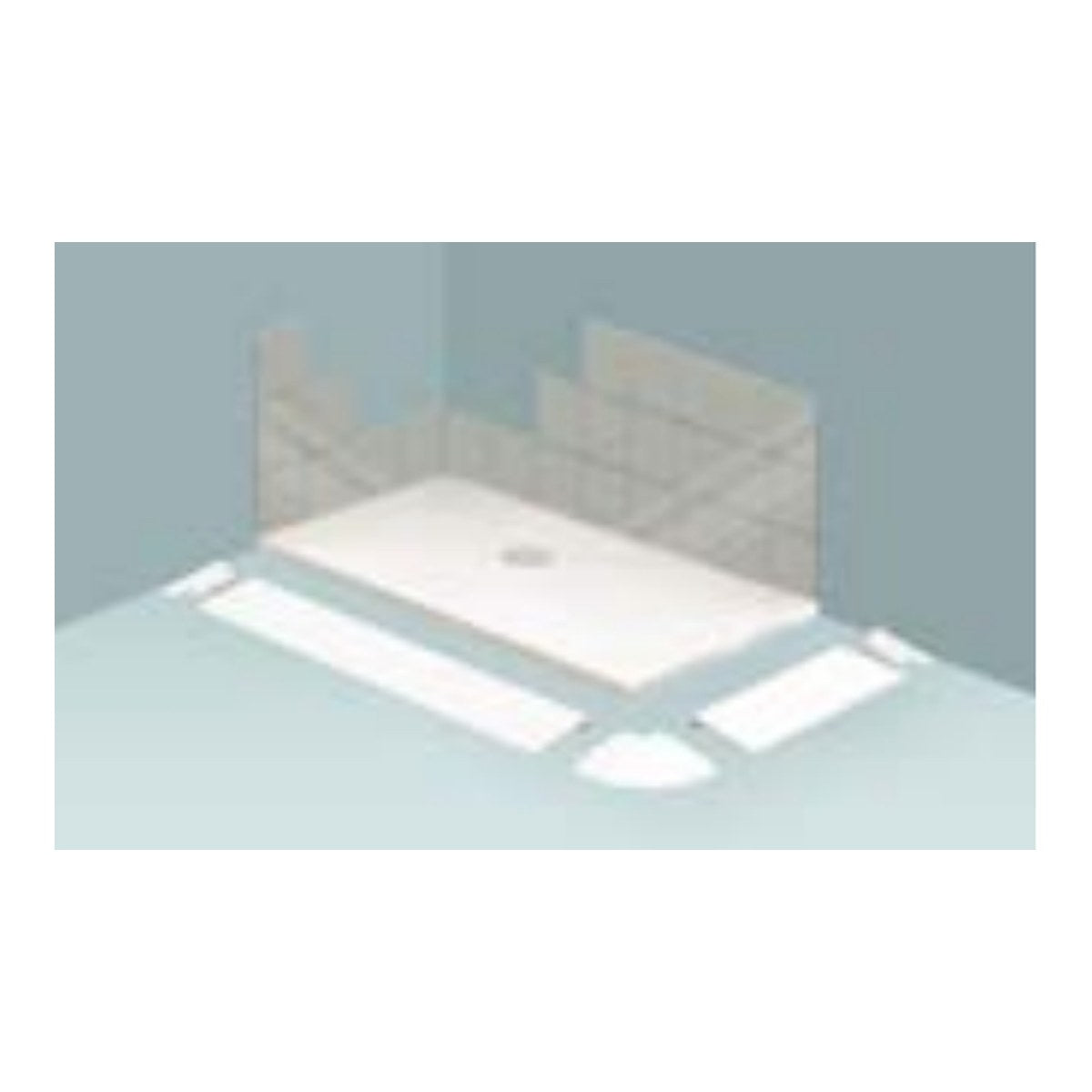

Optional ramp kits, trimmable to suit tray size (RDR / RDRKIT)
Self-adhesive waterproof Tiling Upstand included (3.5m roll, 120mm wide — code US12350)
90mm drain aperture
Designed to fit alongside Impey half-height shower doors and glass screens
Lifetime Guarantee

Technical information

Brand: Impey
Range: Radiate
Type: Pumped shower tray

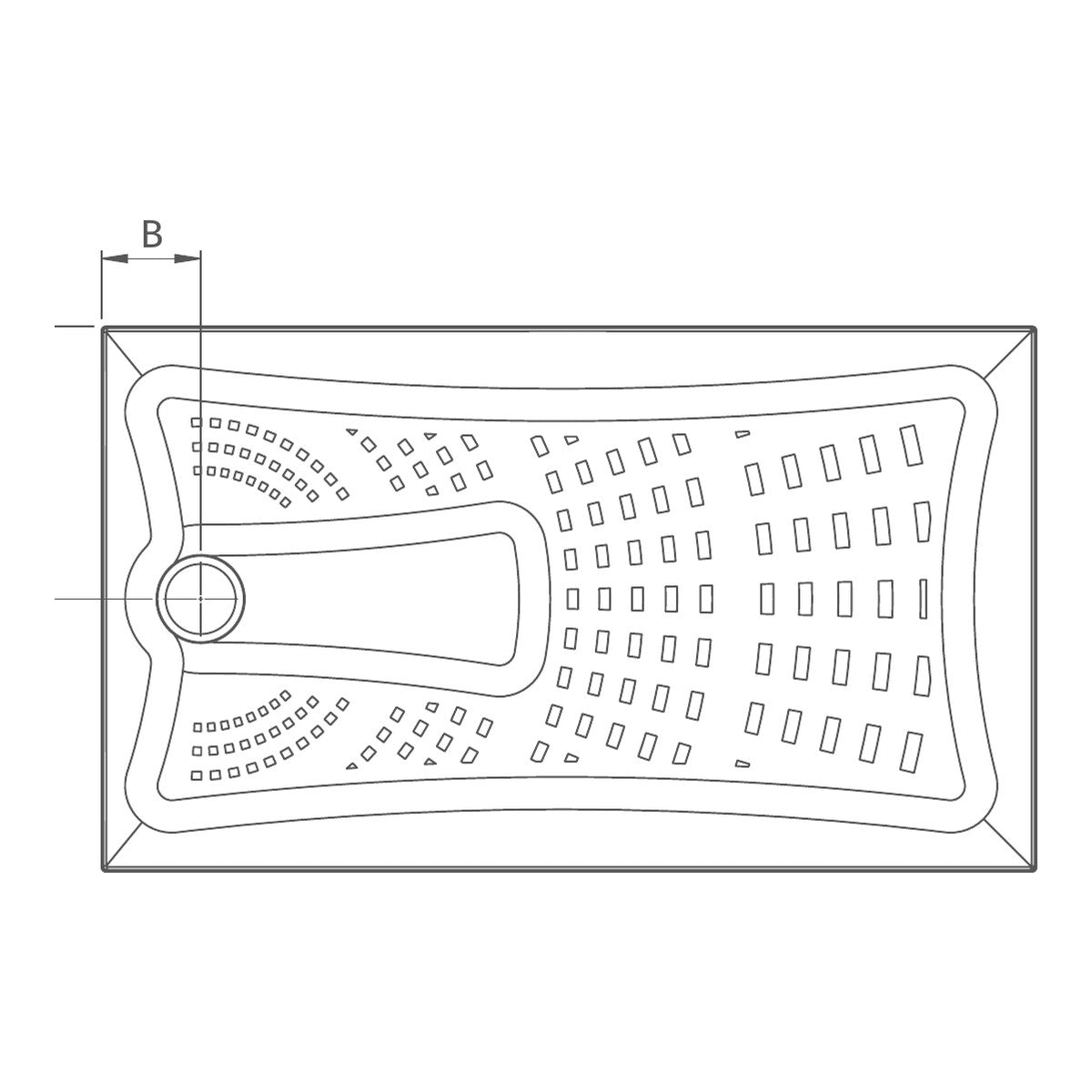

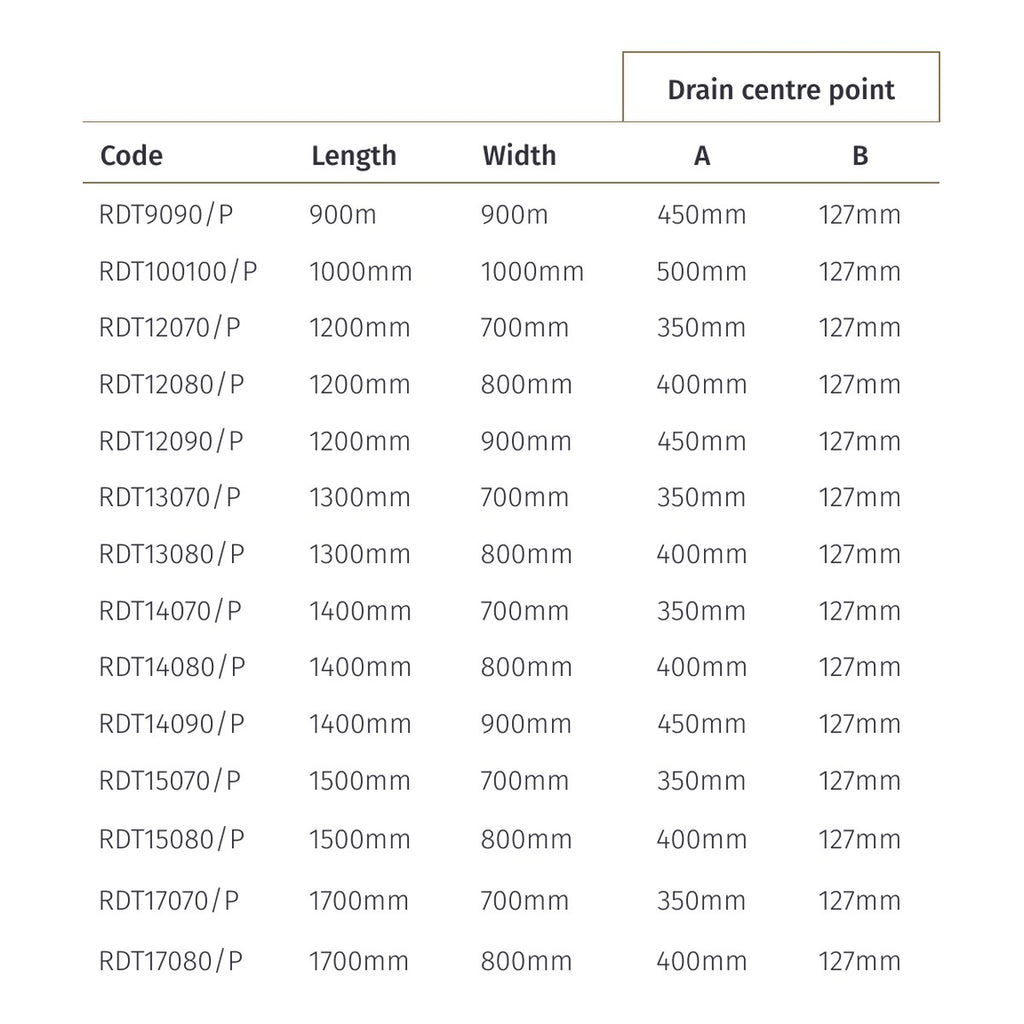

Sizes: RDT9090/P: 900 x 900mm (drain centre A 450mm, B 127mm)

RDT100100/P: 1000 x 1000mm (drain centre A 500mm, B 127mm)

RDT12070/P: 1200 x 700mm (drain centre A 350mm, B 127mm)

RDT12080/P: 1200 x 800mm (drain centre A 400mm, B 127mm)

RDT12090/P: 1200 x 900mm (drain centre A 450mm, B 127mm)

RDT13070/P: 1300 x 700mm (drain centre A 350mm, B 127mm)

RDT13080/P: 1300 x 800mm (drain centre A 400mm, B 127mm)

RDT14070/P: 1400 x 700mm (drain centre A 350mm, B 127mm)

RDT14080/P: 1400 x 800mm (drain centre A 400mm, B 127mm)

RDT14090/P: 1400 x 900mm (drain centre A 450mm, B 127mm)

RDT15070/P: 1500 x 700mm (drain centre A 350mm, B 127mm)

RDT15080/P: 1500 x 800mm (drain centre A 400mm, B 127mm)

RDT17070/P: 1700 x 700mm (drain centre A 350mm, B 127mm)

RDT17080/P: 1700 x 800mm (drain centre A 400mm, B 127mm)
Height: 40mm
Drainage: Pumped — UTRC01/P V2 supplied
Maximum flow rate: 8 l/min
Drain aperture: 90mm
Maximum load: 300kg (47 stone)
Slip resistance: DIN 51097 Class B
Shower compatibility: Electric showers (max 8 l/min)
Accessories: Ramp kit RDR (straight + end caps), RDRKIT (with corner)
Approvals: CE tested to BS EN 14527
Guarantee: Lifetime

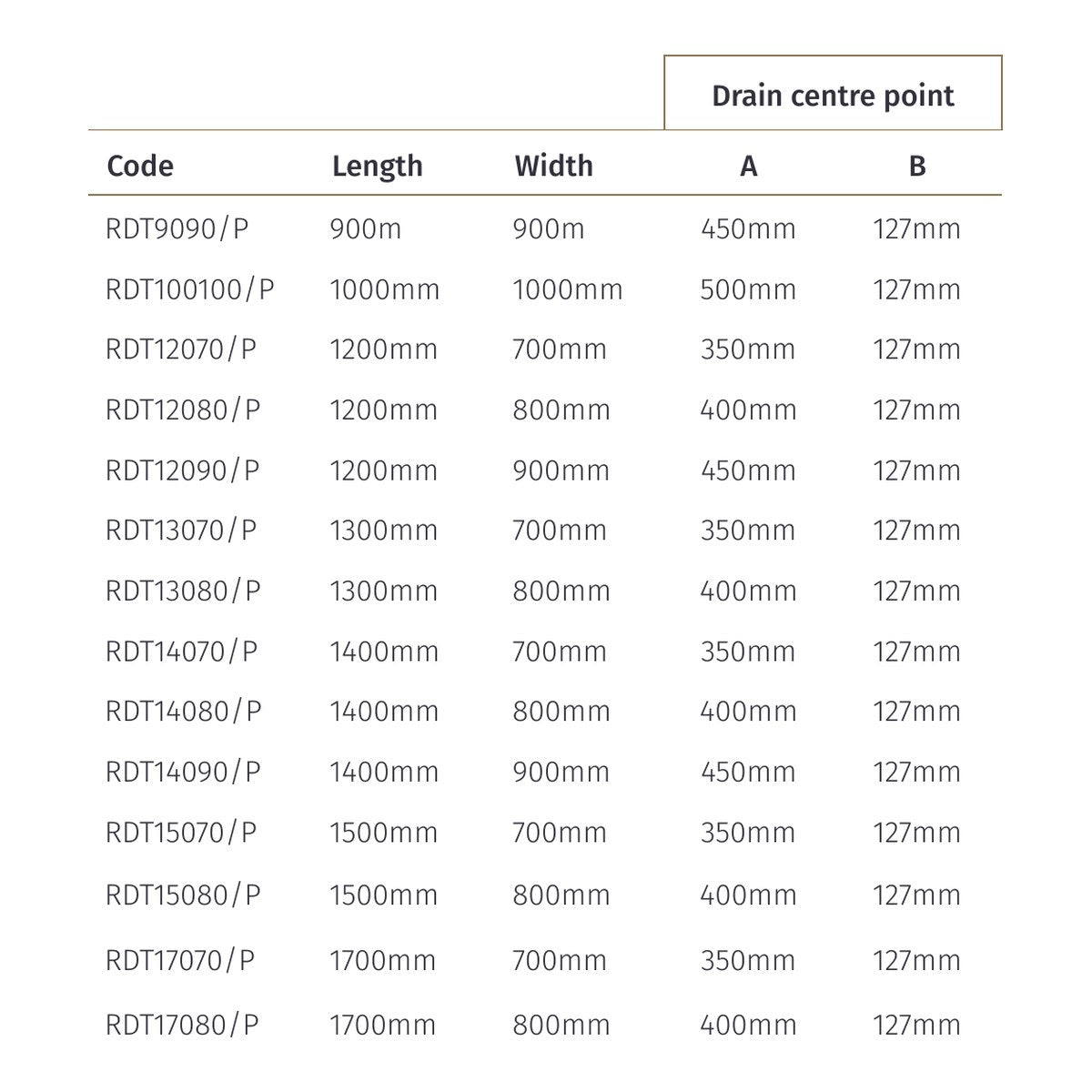

Product codes: 900 x 900mm RDT9090/P
1000 x 1000mm RDT100100/P
1200 x 700mm RDT12070/P
1200 x 800mm RDT12080/P
1200 x 900mm RDT12090/P
1300 x 700mm RDT13070/P
1300 x 800mm RDT13080/P
1400 x 700mm RDT14070/P
1400 x 800mm RDT14080/P
1400 x 900mm RDT14090/P
1500 x 700mm RDT15070/P
1500 x 800mm RDT15080/P
1700 x 700mm RDT17070/P
1700 x 800mm RDT17080/P
