Impey Mendip Gravity Shower Tray (Various Sizes)
£786.82
Taxes included.
Shipping calculated at checkout.
MEN501/C
- Free deliveryon orders over £500
- Price matchguarantee
- Expert adviceavailable
Product description
The Impey Mendip is a robust gravity-drainage shower tray for unbreachable floors. With a 100mm tray depth it houses a factory-fitted waste trap beneath the tray, so there's no need to recess pipework into the floor — ideal for multi-storey properties and anywhere above-floor drainage is required.
Fully self-supporting, the Mendip doesn't need bedding down and offers multiple waste outlet positions to suit site conditions. The 1850mm tray is trimmable to 1250mm (including the 50mm end caps, 2 supplied), and a sloping access ramp or half-step is available to improve accessibility.
Lead time: 2–5 working days from order.
Key features
- Strong 100mm tray depth, fully self-supporting

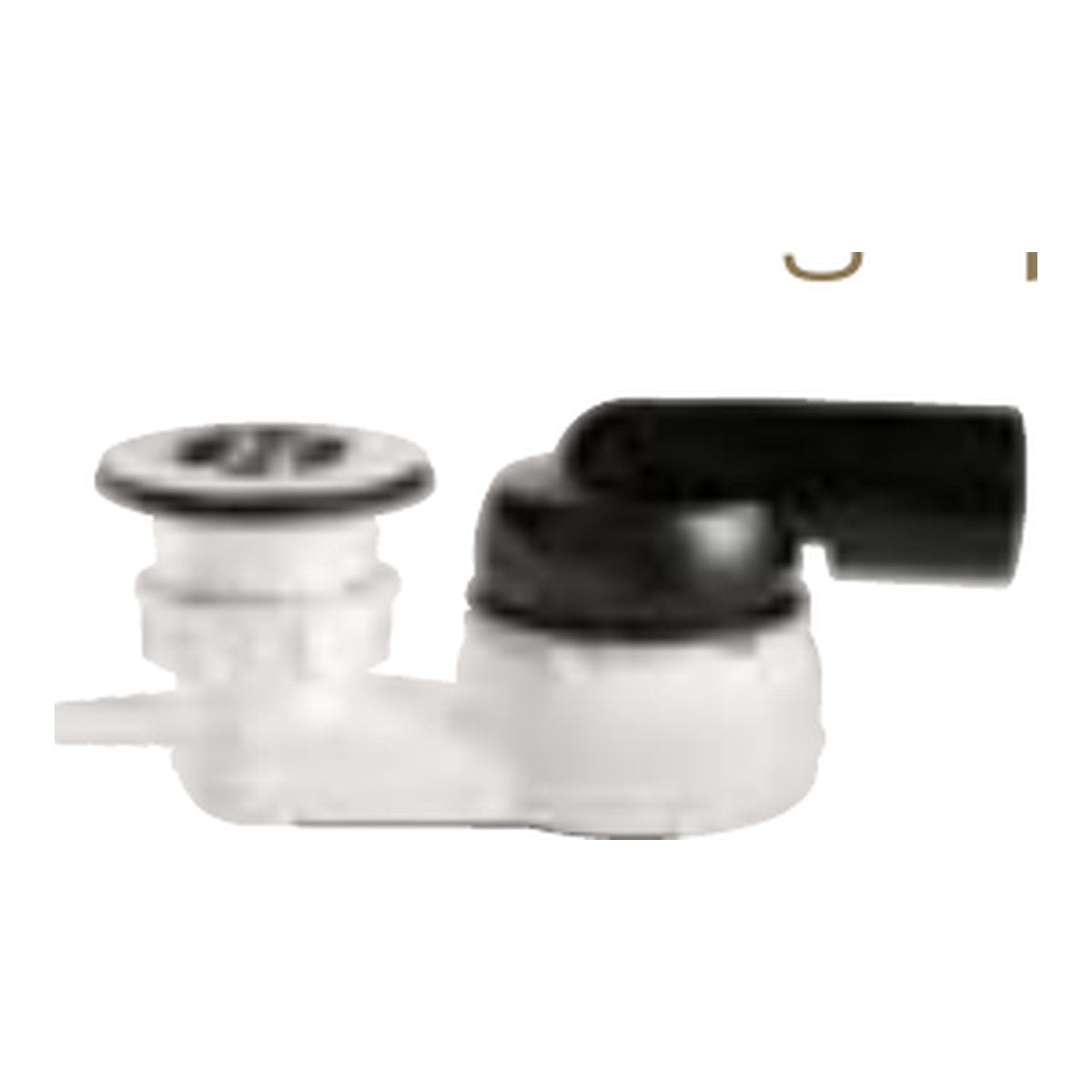

- Factory-fitted waste trap with swivel outlet
- Exit pipework from any side of the tray
- Gravity drainage, or D.Trap for pumped waste
- Flow rate up to 10 l/min
- Supports up to 250kg (39 stone)
- Slip resistance classified to DIN 51097 Class A
- 40mm outlet, 50mm water seal compliant with Building Regulations
- Inspection cover
- Compatible with electric and mixer showers

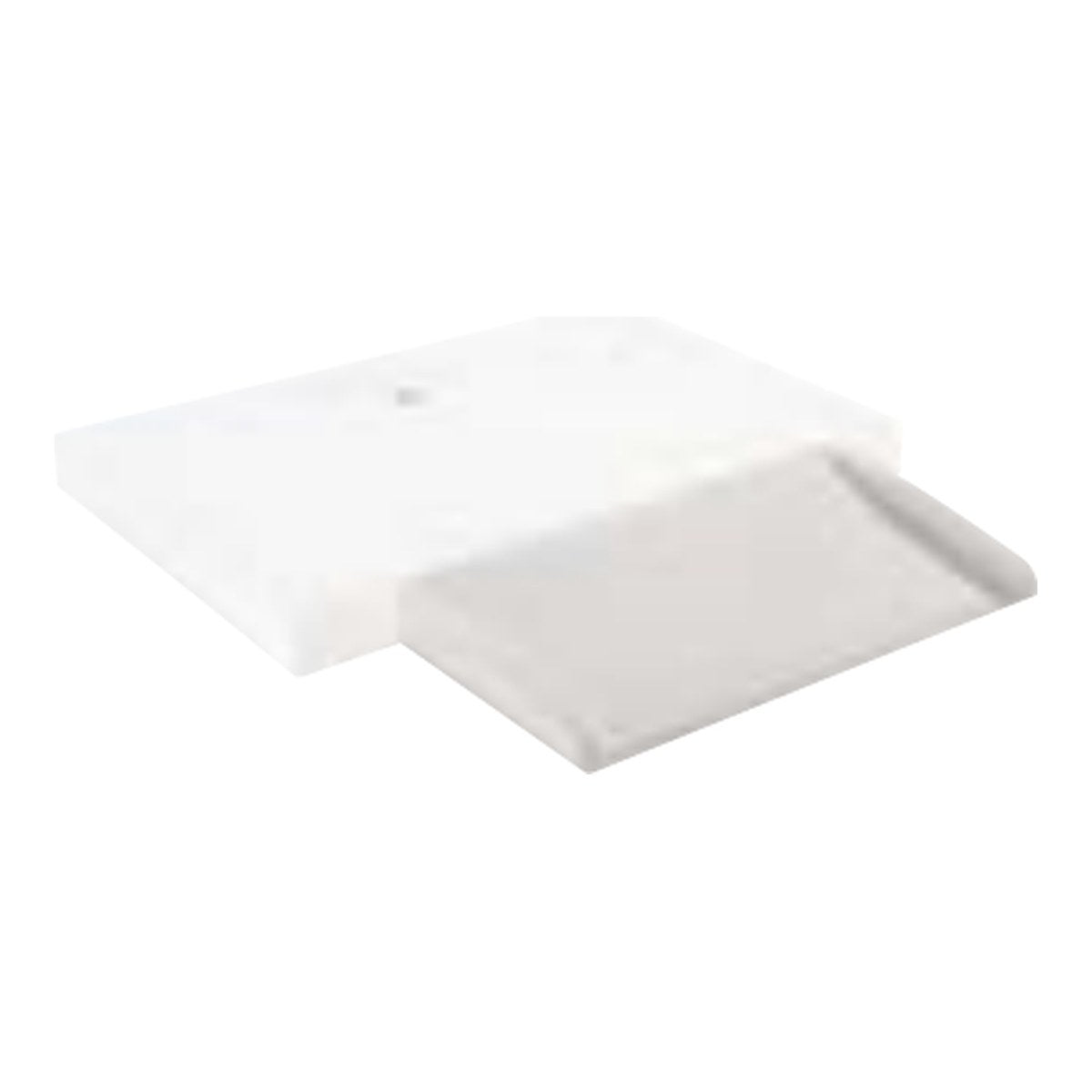

- Optional 900mm access ramp (MEN/R01)
- Self-adhesive waterproof Tiling Upstand included (3.5m roll, 120mm wide — code US12350)
- Designed to fit alongside Impey half-height shower doors and glass screens
- Lifetime Guarantee
Technical information
- Brand
- Impey
- Range
- Mendip
- Type
- Gravity shower tray

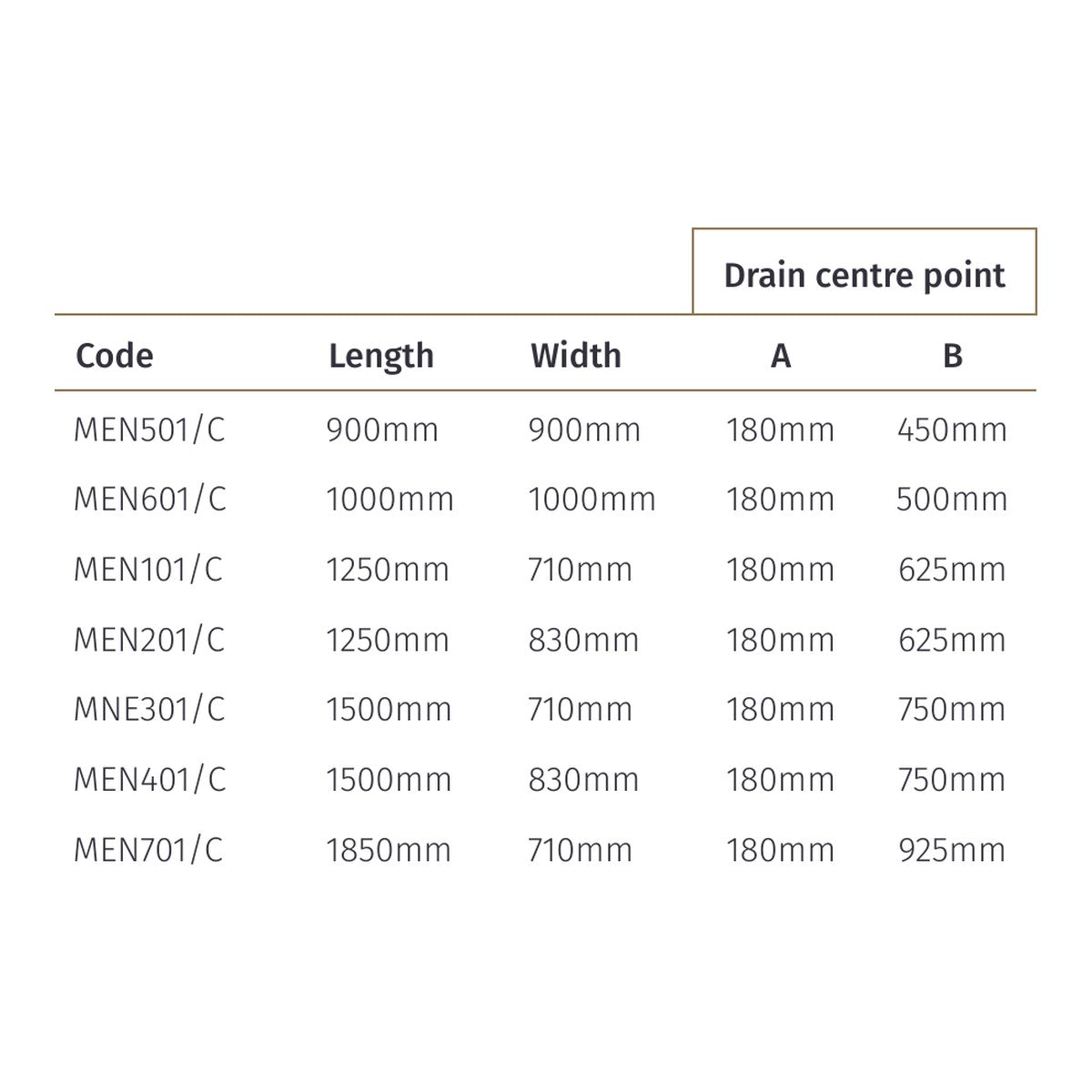

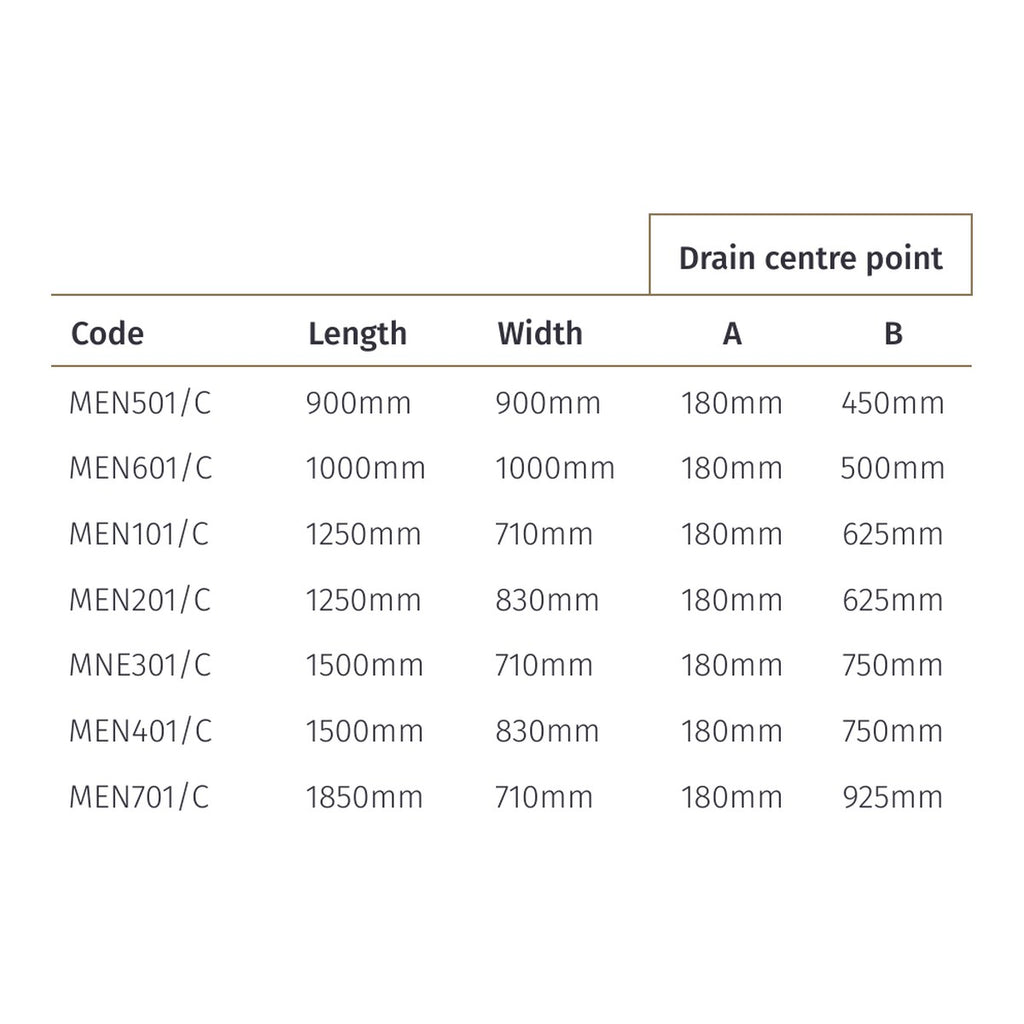

- Sizes

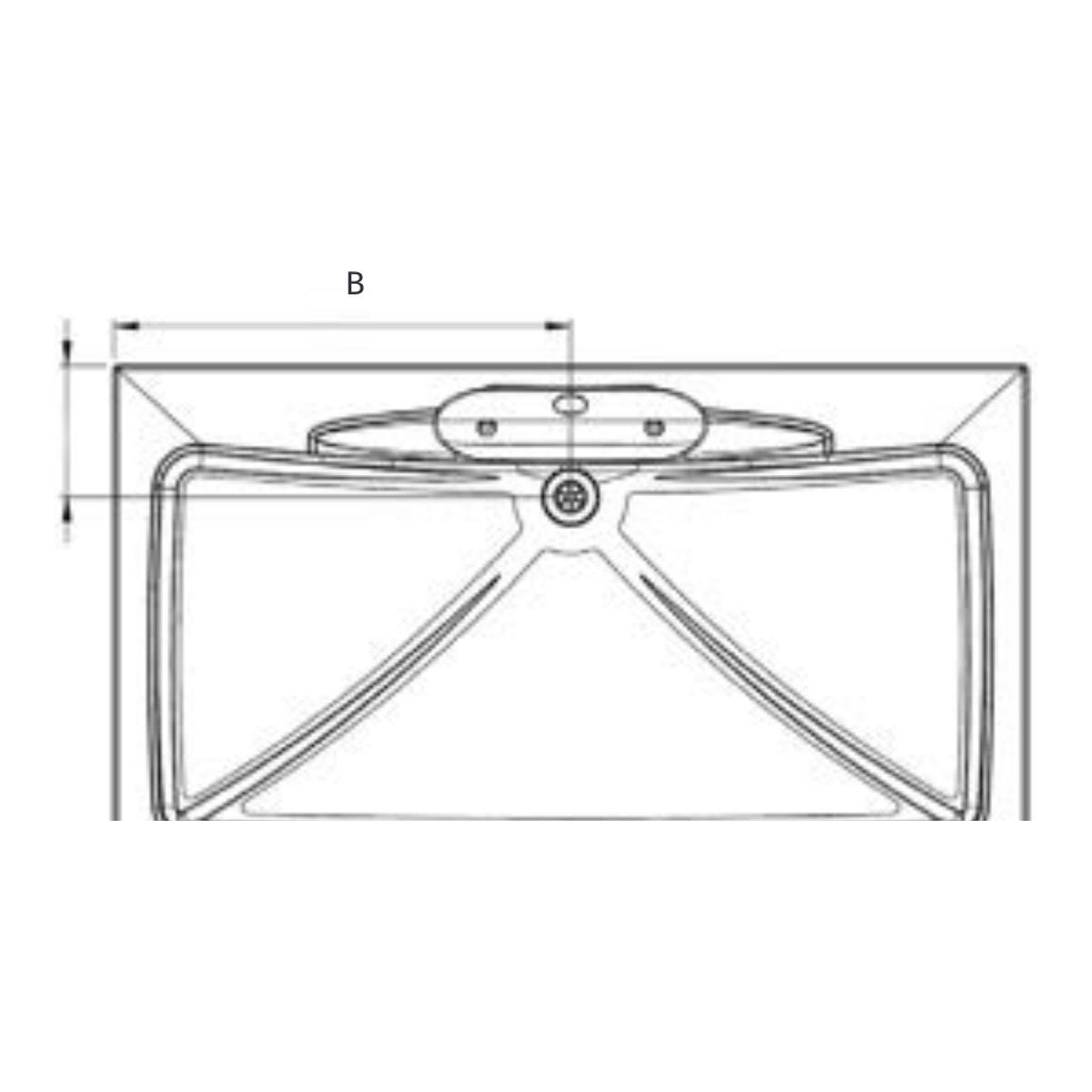

- MEN501/C: 900 x 900mm (drain centre A 180mm, B 450mm)
- MEN601/C: 1000 x 1000mm (drain centre A 180mm, B 500mm)
- MEN101/C: 1250 x 710mm (drain centre A 180mm, B 625mm)
- MEN201/C: 1250 x 830mm (drain centre A 180mm, B 625mm)
- MNE301/C: 1500 x 710mm (drain centre A 180mm, B 750mm)
- MEN401/C: 1500 x 830mm (drain centre A 180mm, B 750mm)
- MEN701/C: 1850 x 710mm (drain centre A 180mm, B 925mm)
- Tray depth
- 100mm
- Drainage
- Gravity — factory-fitted trap with swivel outlet
- Outlet
- 40mm, 50mm water seal
- Drain aperture
- 50mm
- Maximum flow rate
- 10 l/min
- Maximum load
- 250kg (39 stone)
- Slip resistance
- DIN 51097 Class A
- Trimmable
- 1850mm tray to 1250mm including 50mm end caps (2 supplied)
- Accessories
- 900mm ramp MEN/R01
- Approvals
- CE tested to BS EN 14527
- Guarantee
- Lifetime
- Product codes
- 900 x 900mm MEN501/C
- 1000 x 1000mm MEN601/C
- 1250 x 710mm MEN101/C
- 1250 x 830mm MEN201/C
- 1500 x 710mm MEN301/C
- 1500 x 830mm MEN401/C
- 1850 x 710mm MEN701/C
Downloads
- Product data sheetPDF – Manufacturer product data sheet Download
