Impey Level-Grade Wetroom Floor Former

Product description

Impey Level-Grade is a fast, simple way to create the perfect wetroom floor gradient on concrete floors with a vinyl floor finish. Colour-coded modular sections click together to form a matrix, which is then filled with screed to achieve an accurate, reliable fall to a central drain.

Available in 8 sizes across 2, 3 and 4 fall layouts, Level-Grade can be installed directly onto PIR insulation boards using the insulation mounting feet. Each former has an average gradient of 1 in 40 and a maximum flow rate of 36 l/min.

Please note: Impey wetroom floor formers and drains are sold separately — a compatible Impey drain is required to complete the installation.

Lead time: 2–5 working days from order.

Key features

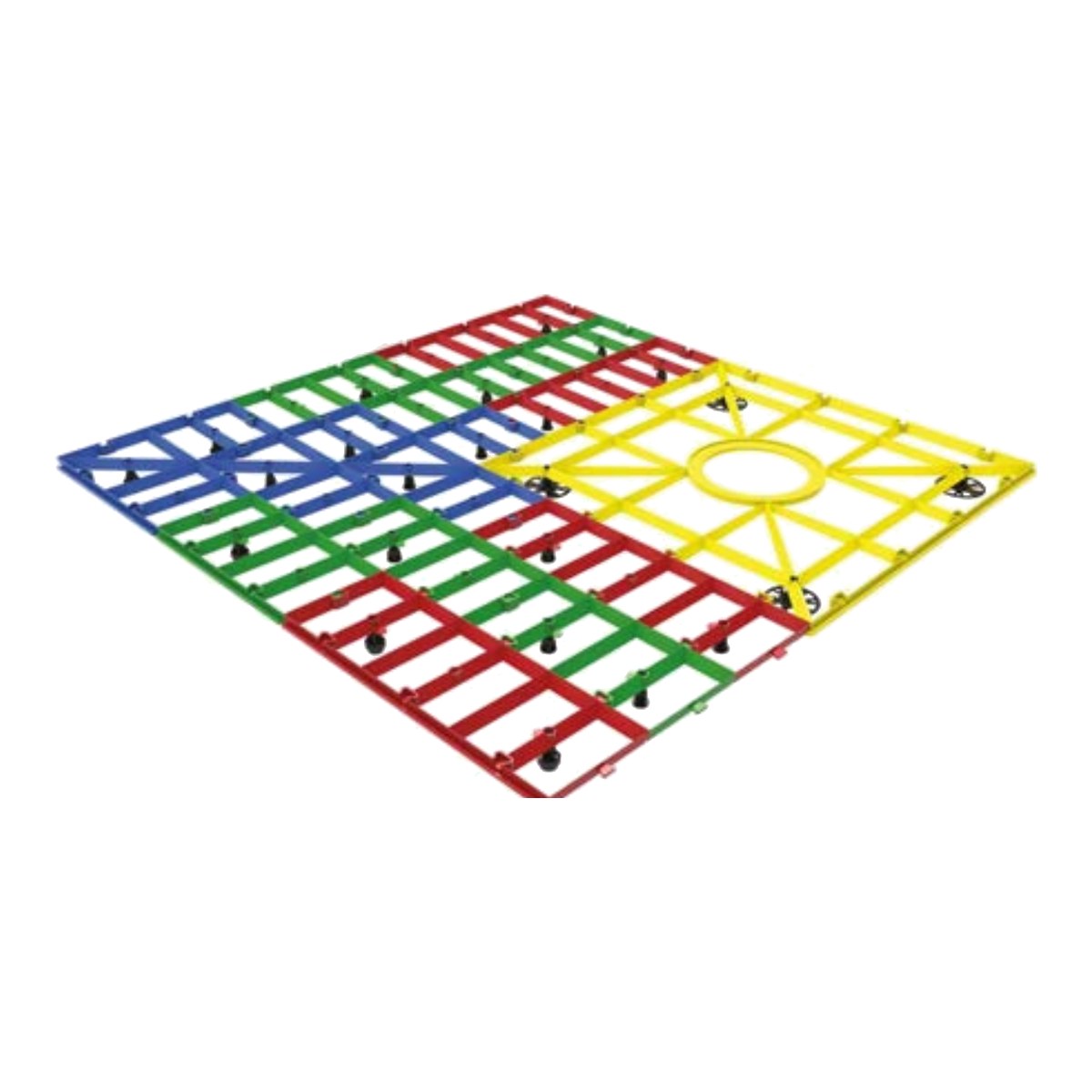

Colour-coded modular sections that click together

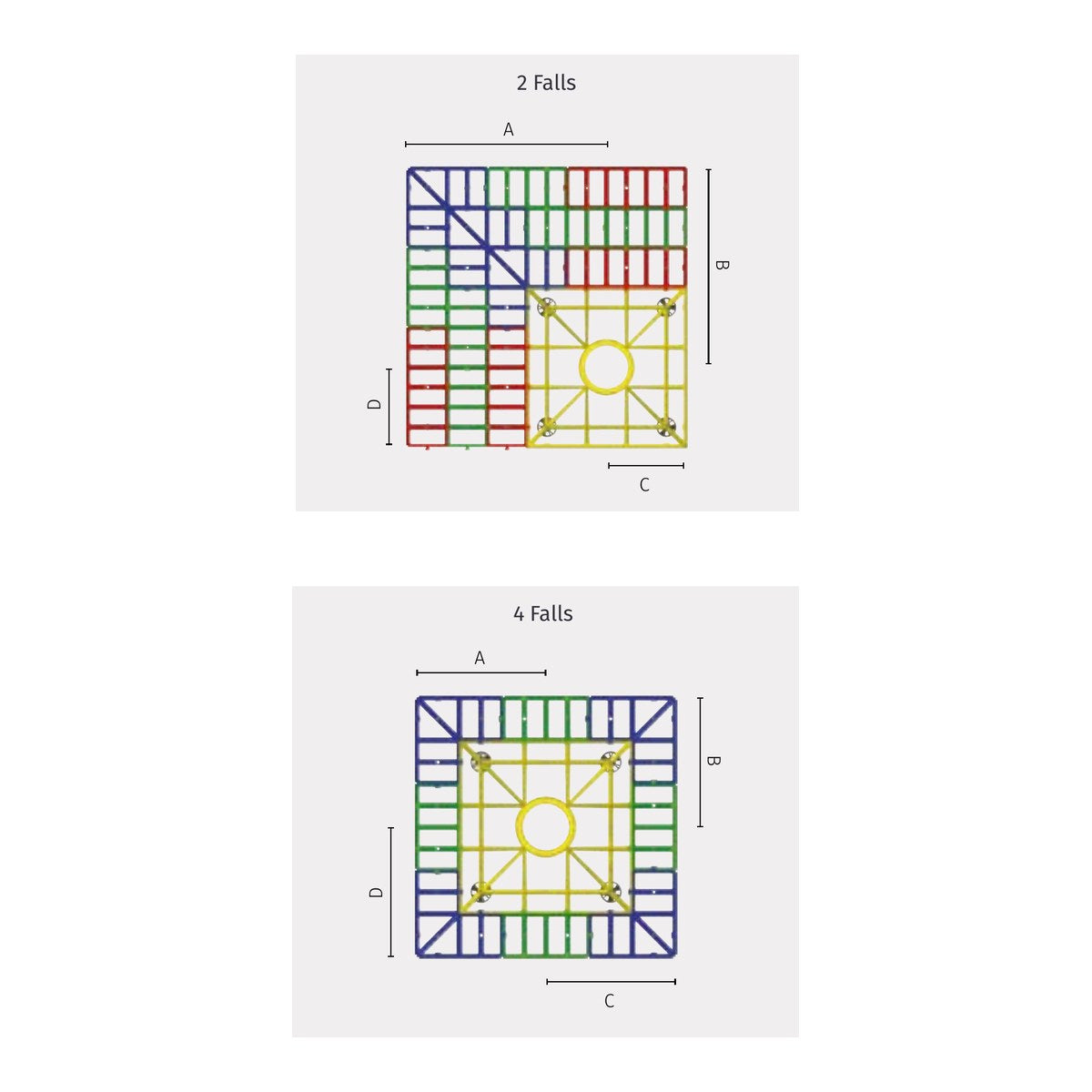

2, 3 or 4 fall layouts
Precise and quick to install
Ideal for new-build projects
Can be installed directly onto insulation boards (with insulation mounting feet, code SCR/IMP)
Guarantees a perfect wetroom floor gradient every time
Eliminates the risk of water pooling
For concrete floors with a vinyl finish only
Lifetime Guarantee when used with Impey WaterGuard™
Manufactured in the UK

Technical information

Brand: Impey
Range: Level-Grade
Model: Level-Grade

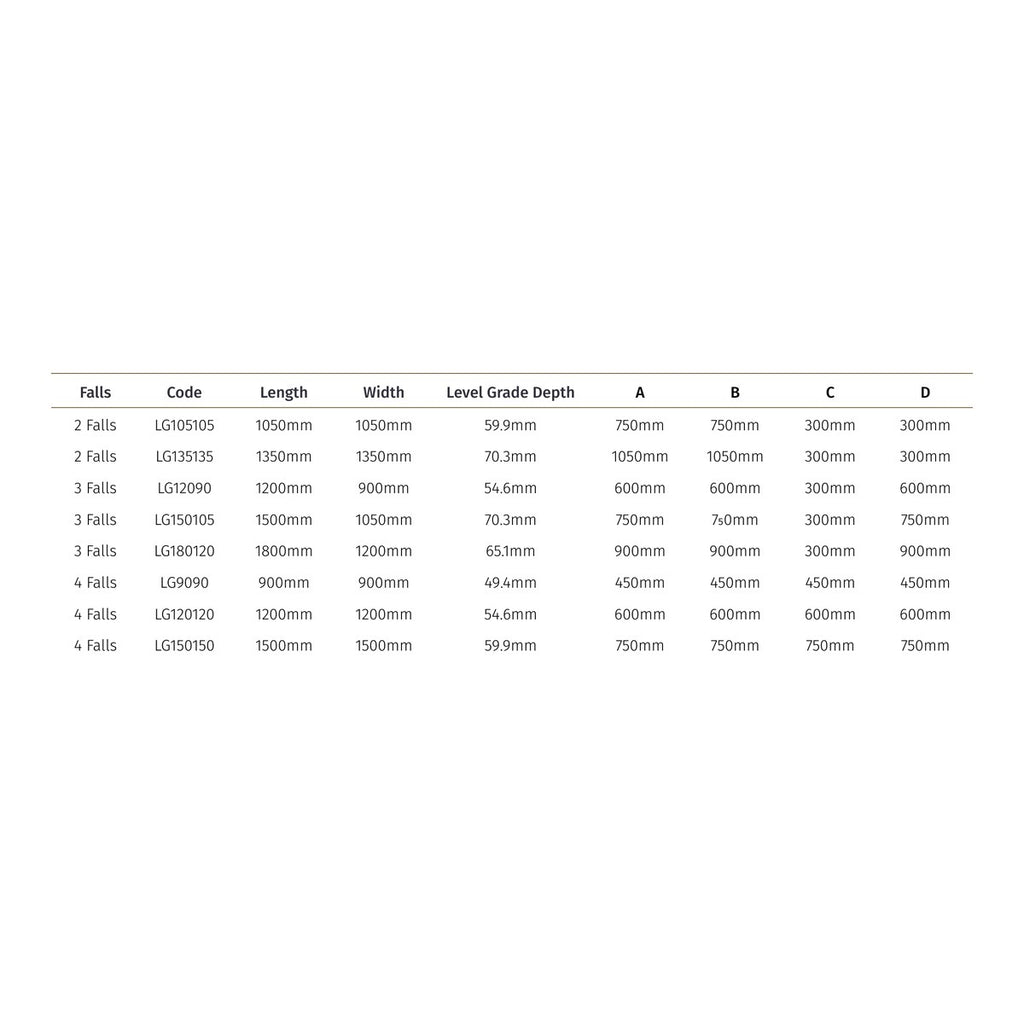

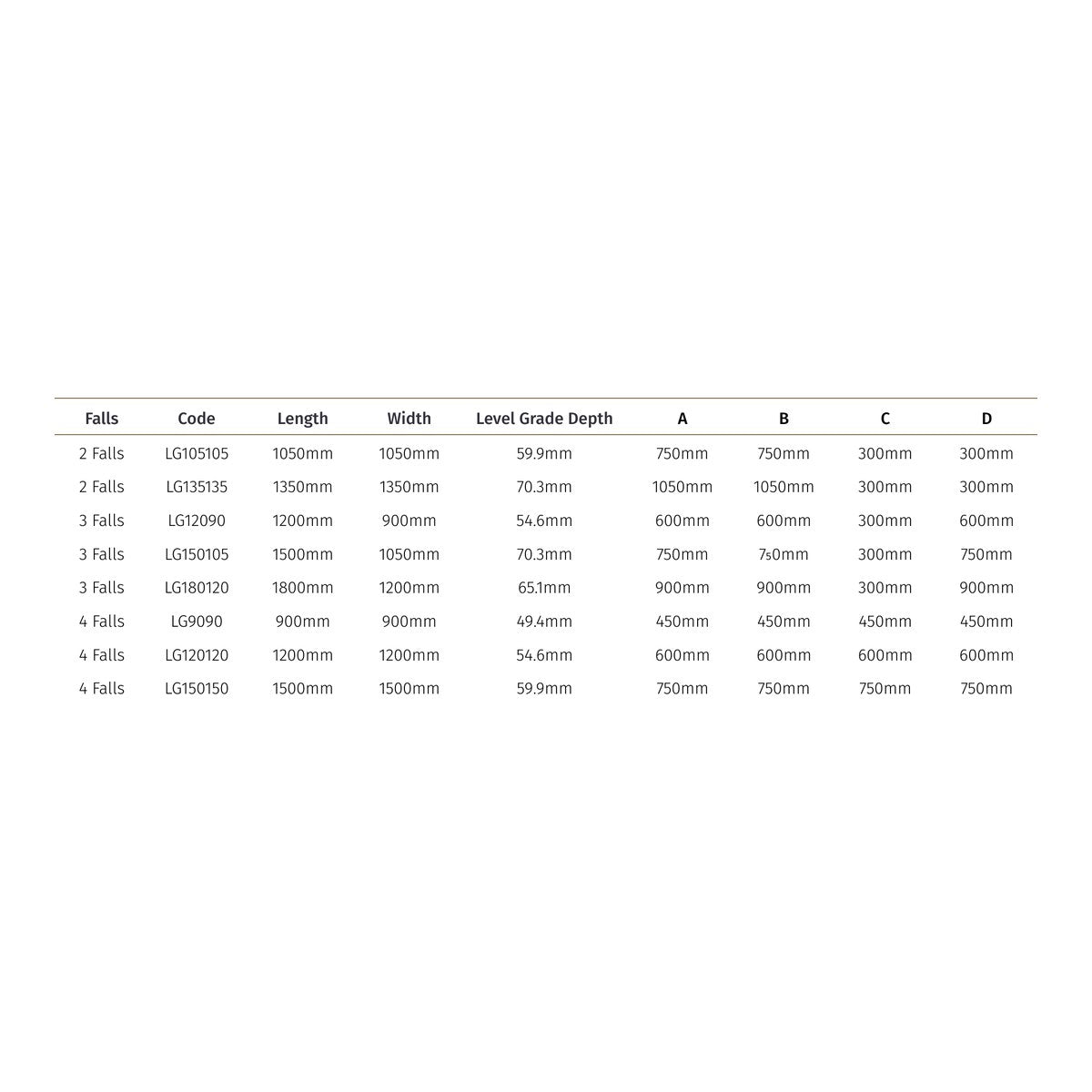

Sizes: LG105105: 2 Falls, 1050 x 1050mm, 59.9mm depth

LG135135: 2 Falls, 1350 x 1350mm, 70.3mm depth

LG12090: 3 Falls, 1200 x 900mm, 54.6mm depth

LG150105: 3 Falls, 1500 x 1050mm, 70.3mm depth

LG180120: 3 Falls, 1800 x 1200mm, 65.1mm depth

LG9090: 4 Falls, 900 x 900mm, 49.4mm depth

LG120120: 4 Falls, 1200 x 1200mm, 54.6mm depth

LG150150: 4 Falls, 1500 x 1500mm, 59.9mm depth
Average gradient: 1 in 40
Maximum flow rate: 36 l/min
Construction: Colour-coded modular sections, screed filled
Subfloor: Concrete
Floor finish: Vinyl only
Insulation mounting feet: Code SCR/IMP
Drain: Sold separately — compatible Impey drain required
Guarantee: Lifetime Guarantee when used with Impey WaterGuard™
Made in: United Kingdom
Product codes: 2 Falls / 1050 x 1050mm LG105105
2 Falls / 1350 x 1350mm LG135135
3 Falls / 1200 x 900mm LG12090
3 Falls / 1500 x 1050mm LG150105
3 Falls / 1800 x 1200mm LG180120
4 Falls / 900 x 900mm LG9090
4 Falls / 1200 x 1200mm LG120120
4 Falls / 1500 x 1500mm LG150150
