Impey Bath Replacement Shower Tray (Various Sizes)

£560.42

Taxes included. Shipping calculated at checkout.

BRT129M

Free deliveryon orders over £500
Price matchguarantee
Expert adviceavailable

Product description

Impey bath replacement trays are designed to cover all the sizes needed to replace a bath, while still offering a low-level installation at only 40mm high. They can also be recessed into the floor.

The 1700mm trays are trimmable to 1220mm length, including a 135mm end cap supplied as standard. Supplied with a horizontal gravity drain, or compatible with all other Impey tray drain options. Maximum gravity flow rate of 33 l/min (tray size dependent); pumped up to 8 l/min. 90mm drain aperture.

Lead time: 2–5 working days from order.

Key features

40mm tray depth
Designed to replace all bath sizes
1700mm trays trimmable to 1220mm (including 135mm end cap)
Gravity flow rate up to 33 l/min (size dependent); pumped up to 8 l/min
Supports up to 250kg (39 stone)
Matte slip-resistant surface, classified to DIN 51097 Class B
Horizontal gravity drain supplied as standard
Compatible with electric and mixer showers
Additional end caps available (BRTM/EC75, BRTM/EC85)
Self-adhesive waterproof Tiling Upstand included (3.5m roll, 120mm wide — code US12350)
Designed to fit alongside Impey half-height shower doors and glass screens
Lifetime Guarantee

Technical information

Brand: Impey
Type: Bath replacement shower tray

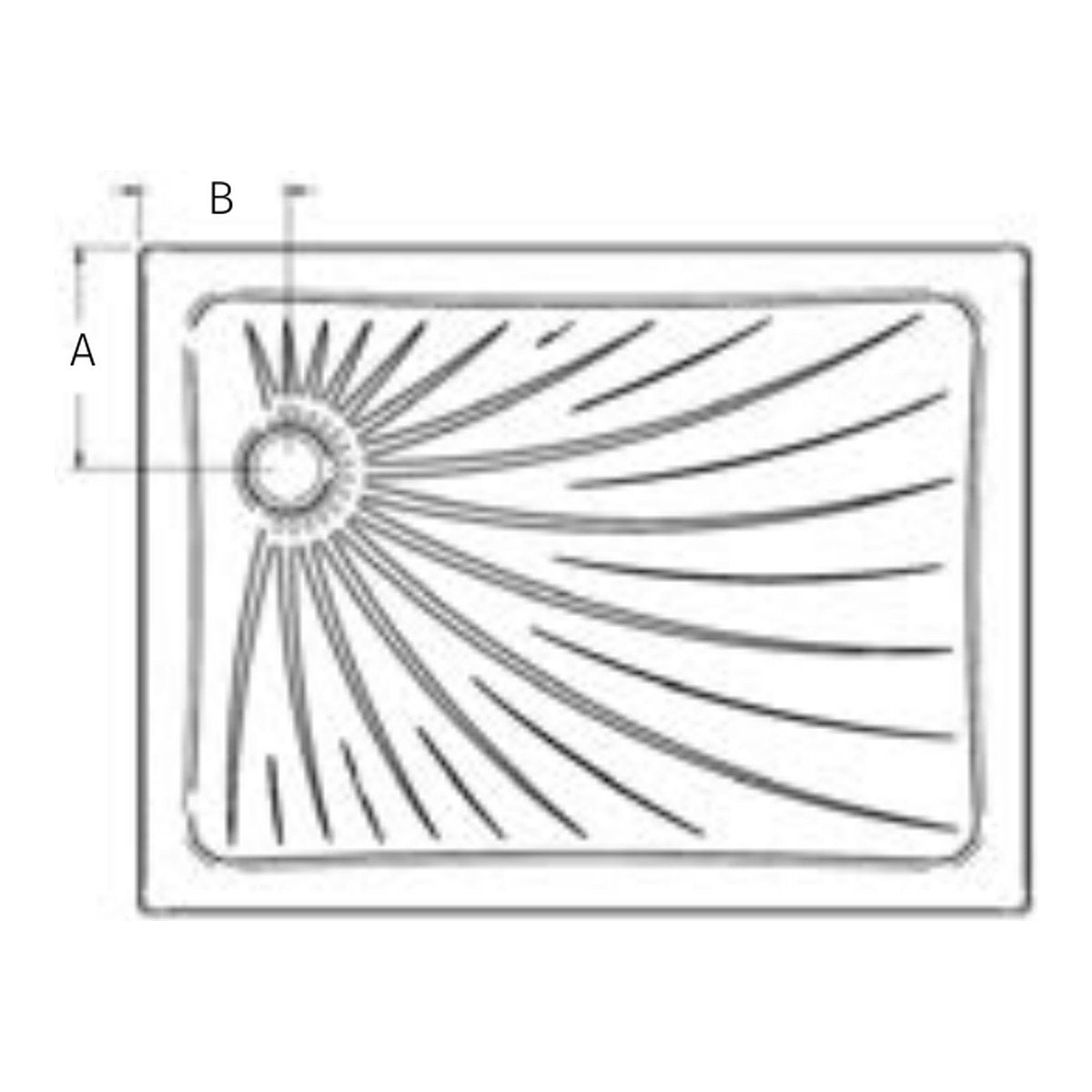

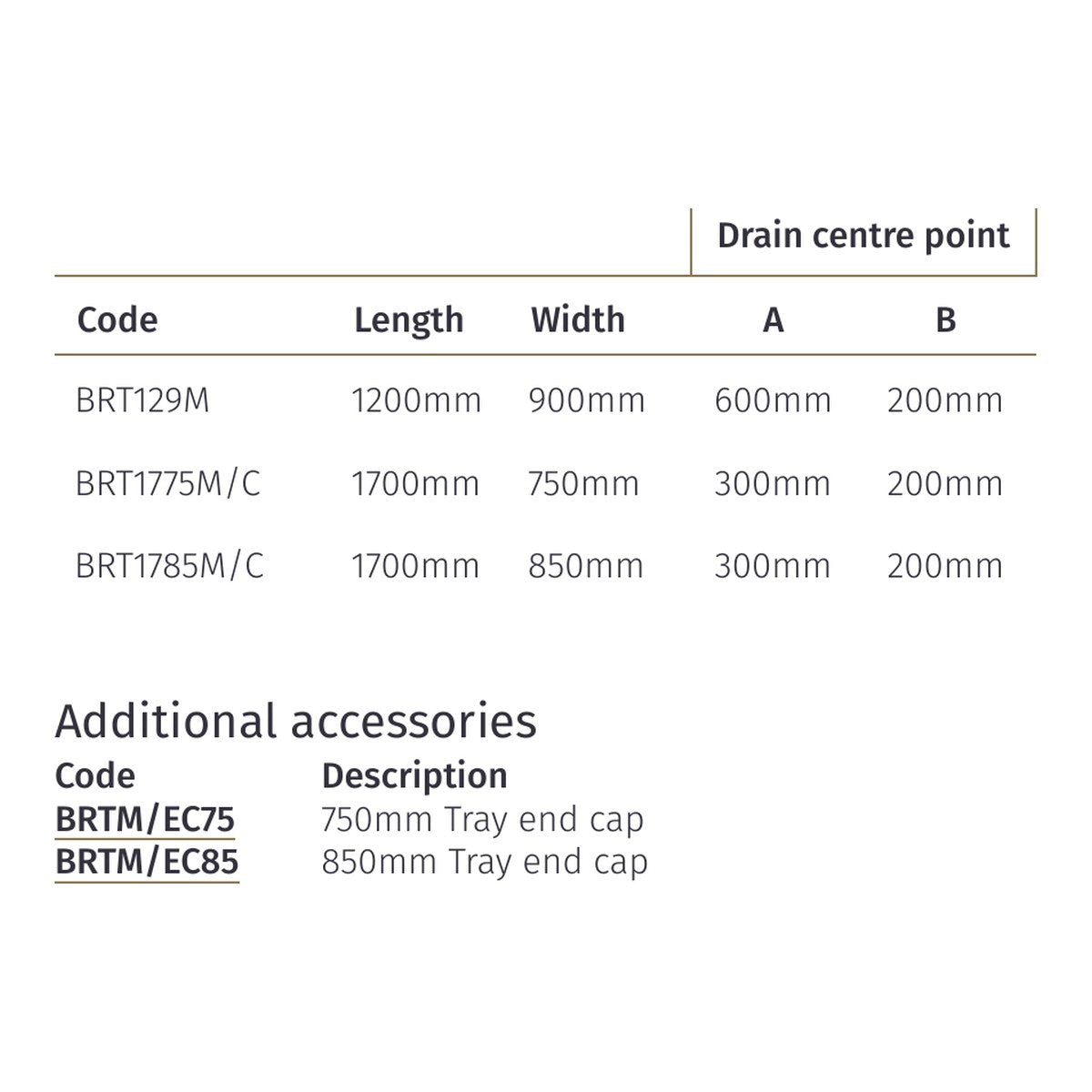

Sizes: BRT129M: 1200 x 900mm (drain centre A 600mm, B 200mm)

BRT1775M/C: 1700 x 750mm (drain centre A 300mm, B 200mm)

BRT1785M/C: 1700 x 850mm (drain centre A 300mm, B 200mm)
Height: 40mm
Drainage: Horizontal gravity drain supplied
Maximum flow rate: 33 l/min gravity (size dependent), 8 l/min pumped
Drain aperture: 90mm
Maximum load: 250kg (39 stone)
Slip resistance: DIN 51097 Class B
Trimmable: 1700mm trays to 1220mm including 135mm end cap
Approvals: CE tested to BS EN 14527
Guarantee: Lifetime
Product codes: 1200 x 900mm BRT129M
1700 x 750mm BRT1775M/C
1700 x 850mm BRT1785M/C
