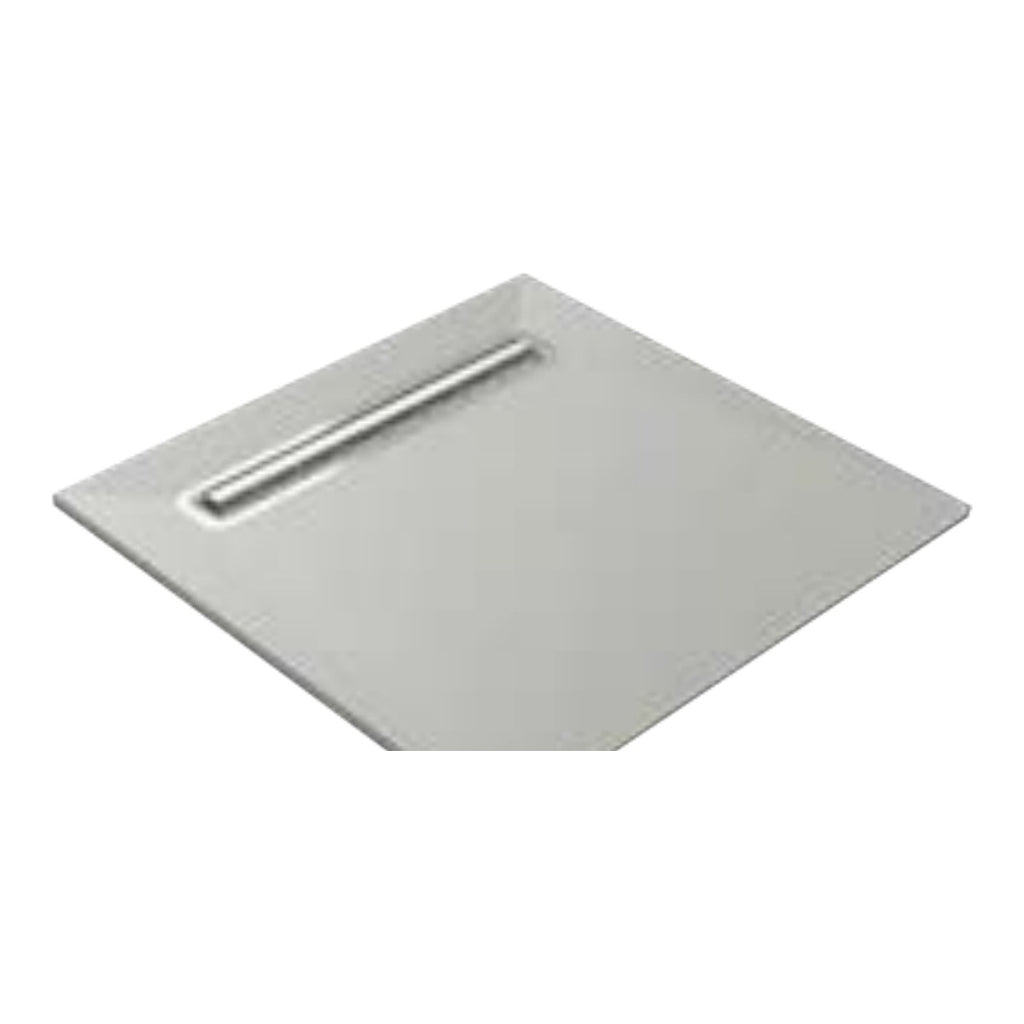

Impey Aqua-Dec Linear 4 Wetroom Floor Former

Product description

The Impey Aqua-Dec Linear 4 is the most versatile former in the Aqua-Dec Linear range. With four gradients and a choice of 600mm or 800mm drain lengths, it adapts easily to walk-in, walk-through, alcove and corner installations.

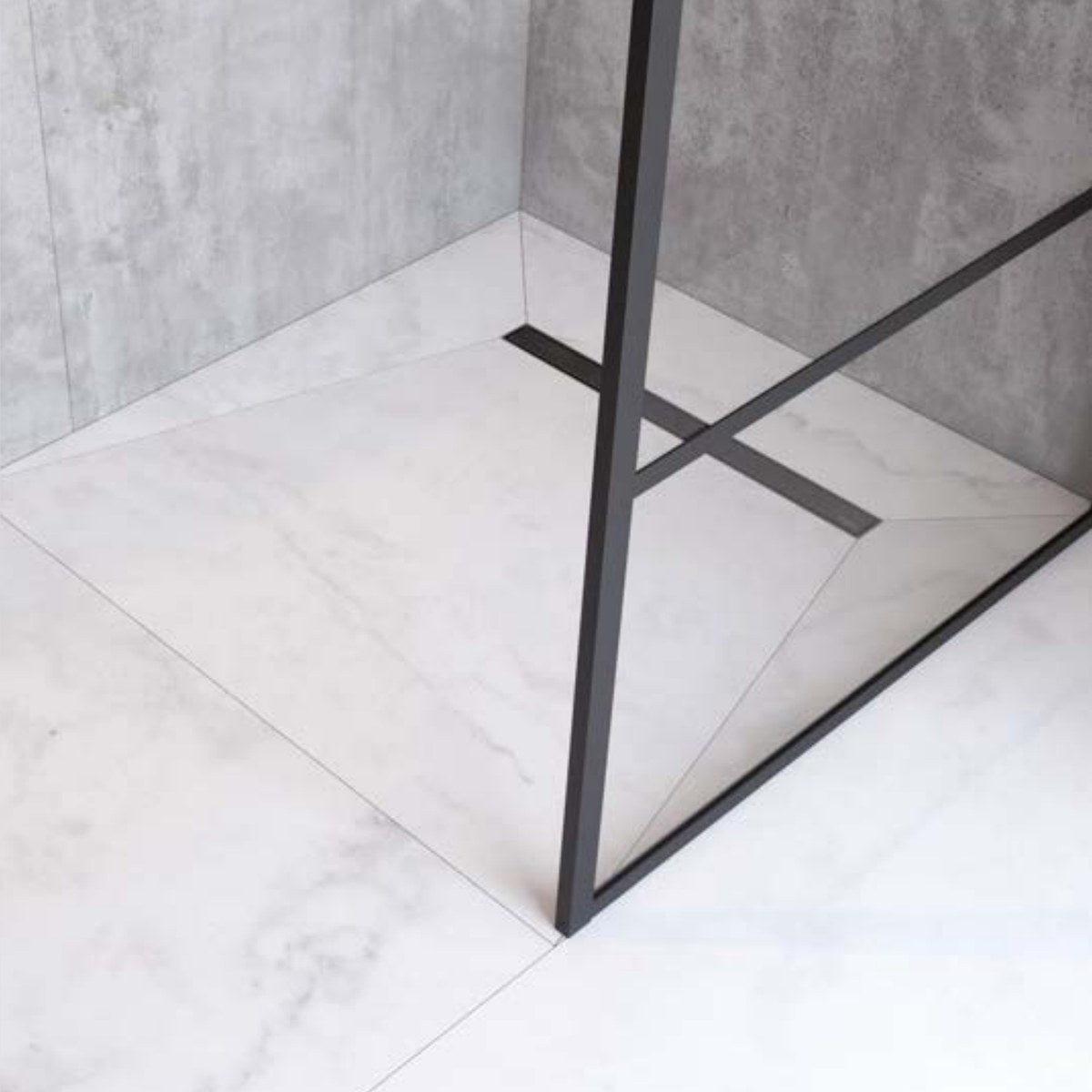

Its balanced design draws the eye to the linear drain, making it a strong visual feature within the shower area. All Aqua-Dec Linear formers have an average 1 in 40 gradient and a maximum flow rate of 35–40 l/min.

Please note: Impey wetroom floor formers and drains are sold separately — a compatible Impey drain is required to complete the installation.

Add WaterGuard™ tanking

Impey's Lifetime Watertight Guarantee requires the entire wetroom floor to be tanked with Impey WaterGuard™. Choose a WaterGuard kit with your former, sized to the area you're tanking:

5m² floor kit (WG5) — 5m² membrane, 500ml BAL primer, 15m jointing tape, 5 internal corners, 1 external corner, butyl sealant
10m² floor kit (WG10) — 10m² membrane, 500ml BAL primer, 2 x 10m jointing tape, 5 internal corners, 1 external corner, butyl sealant
15m² wall & floor kit (WG15WF) — 5m² + 10m² membrane, 2 x 500ml BAL primer, 15m + 10m jointing tape, 5 internal corners, 1 external corner, 2 x butyl sealant
20m² wall & floor kit (WG20WF) — 2 x 10m² membrane, 2 x 500ml BAL primer, 3 x 10m jointing tape, 5 internal corners, 1 external corner, 2 x butyl sealant

WaterGuard™ is a 1mm self-adhesive tanking and decoupling membrane — no drying time, suitable for large-format tiles up to 30kg/m² and compatible with Aqua-Mat™ underfloor heating. Floor coverage is mandatory for the guarantee; tanking the shower-area walls as well is recommended.

Lead time: 2–5 working days from order.

Key features

Suitable for walk-in, walk-through, corner and alcove layouts

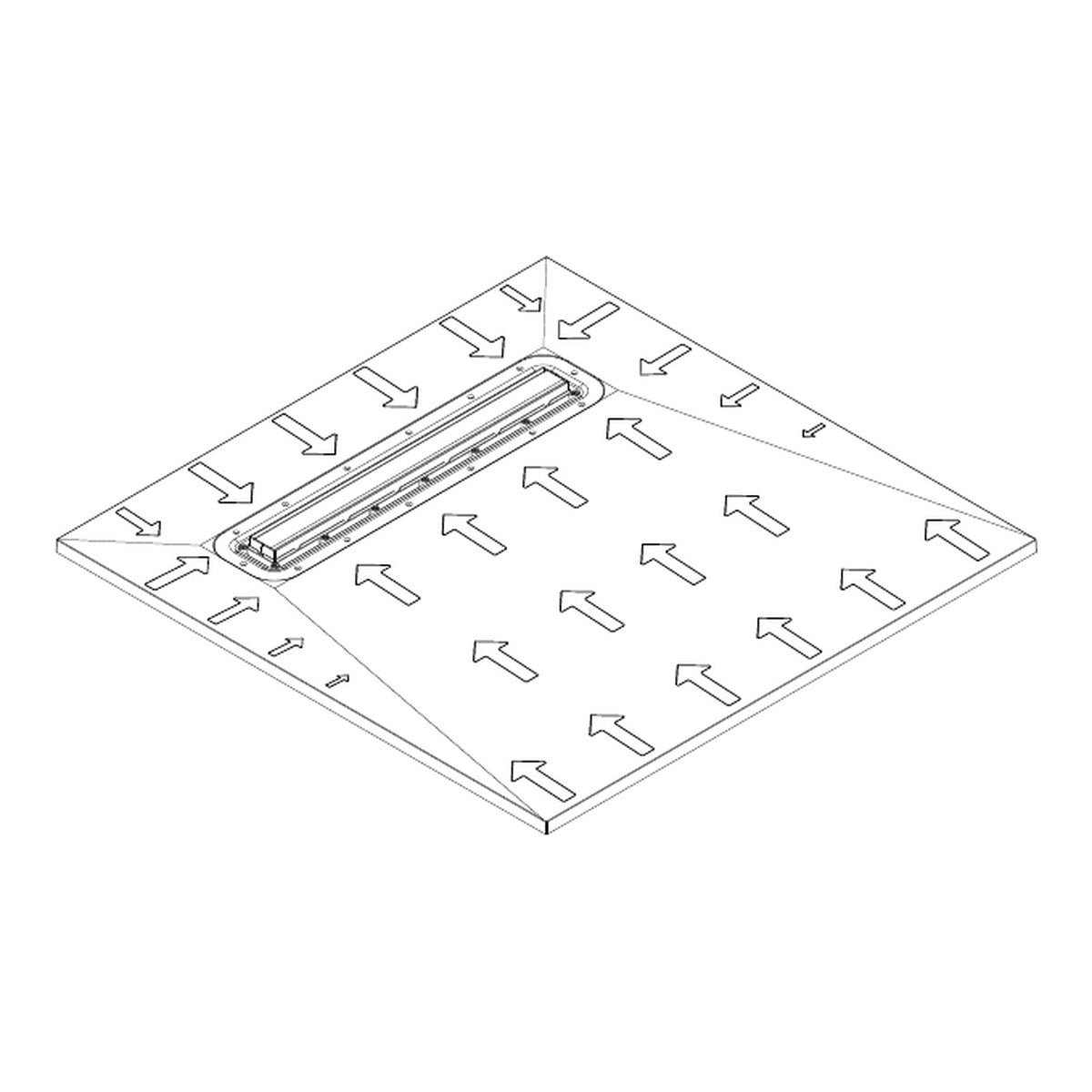

Four gradients leading to the drain
22mm thick

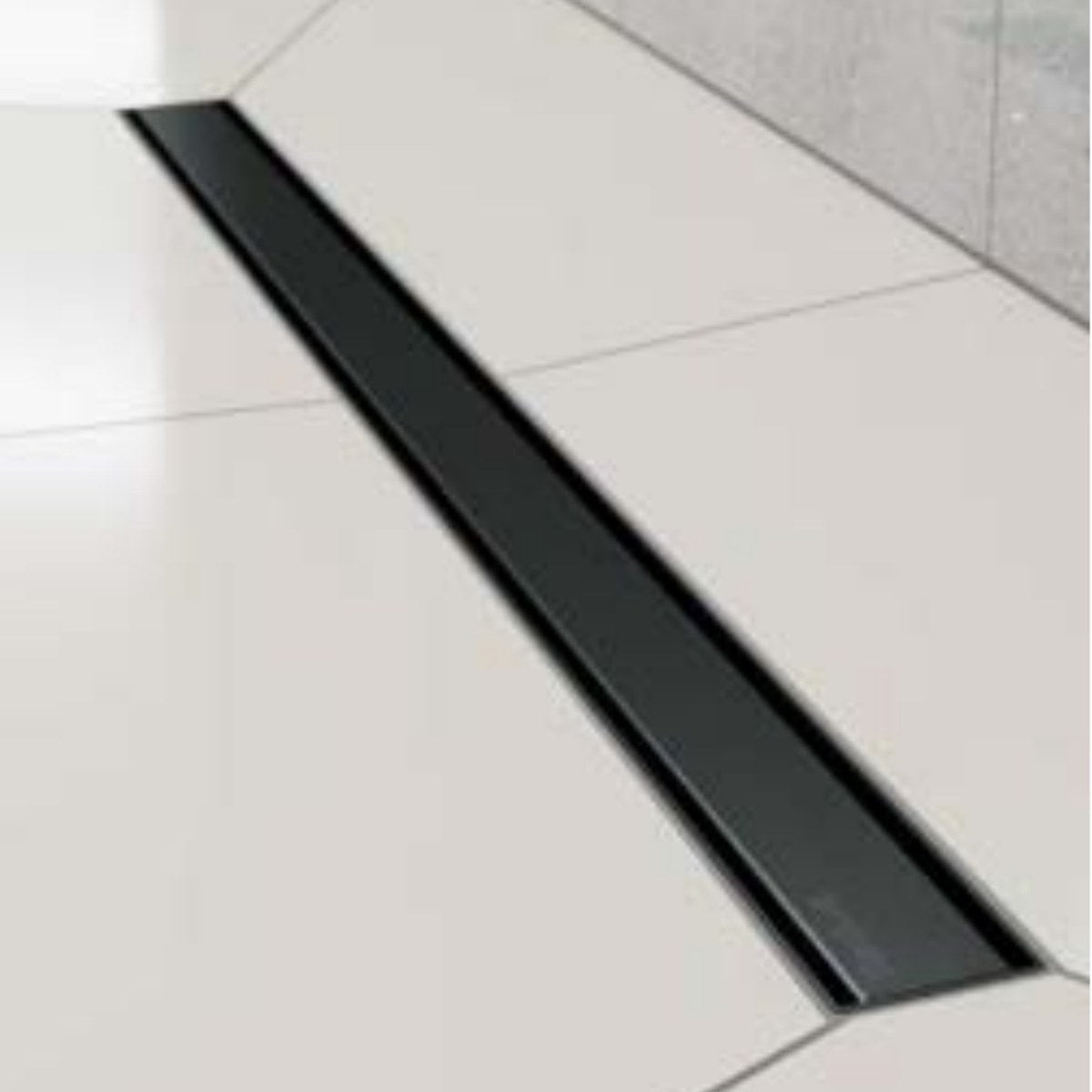

600mm or 800mm linear drain (size dependent), positioned 194mm from the wall
Trimmable (see Impey trimming guidance)
Suitable for timber or concrete floors
Underboarding with 18mm plyboard required
Two sump positions to help avoid pipework and joists
Lifetime Watertight Guarantee when completed with Impey WaterGuard™
Manufactured in the UK

Technical information

Brand: Impey
Range: Aqua-Dec Linear
Model: Aqua-Dec Linear 4™

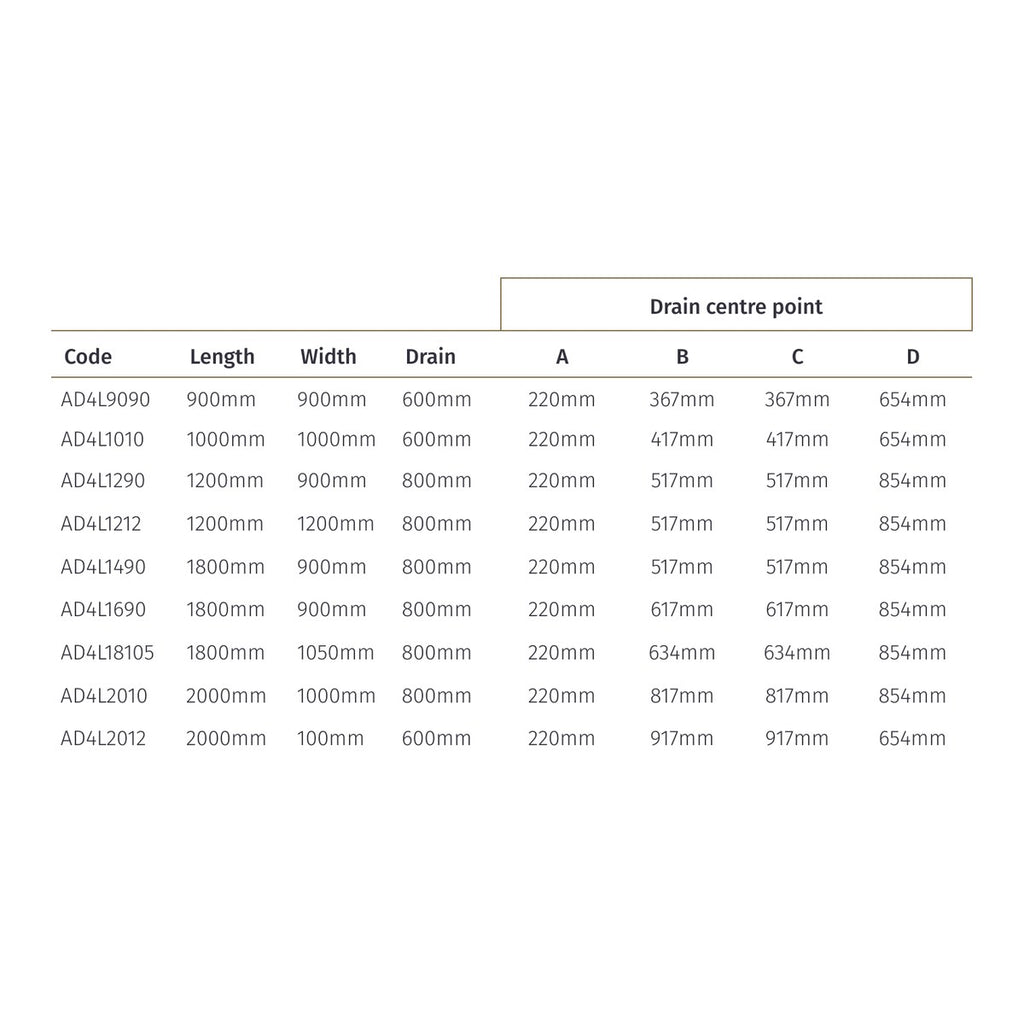

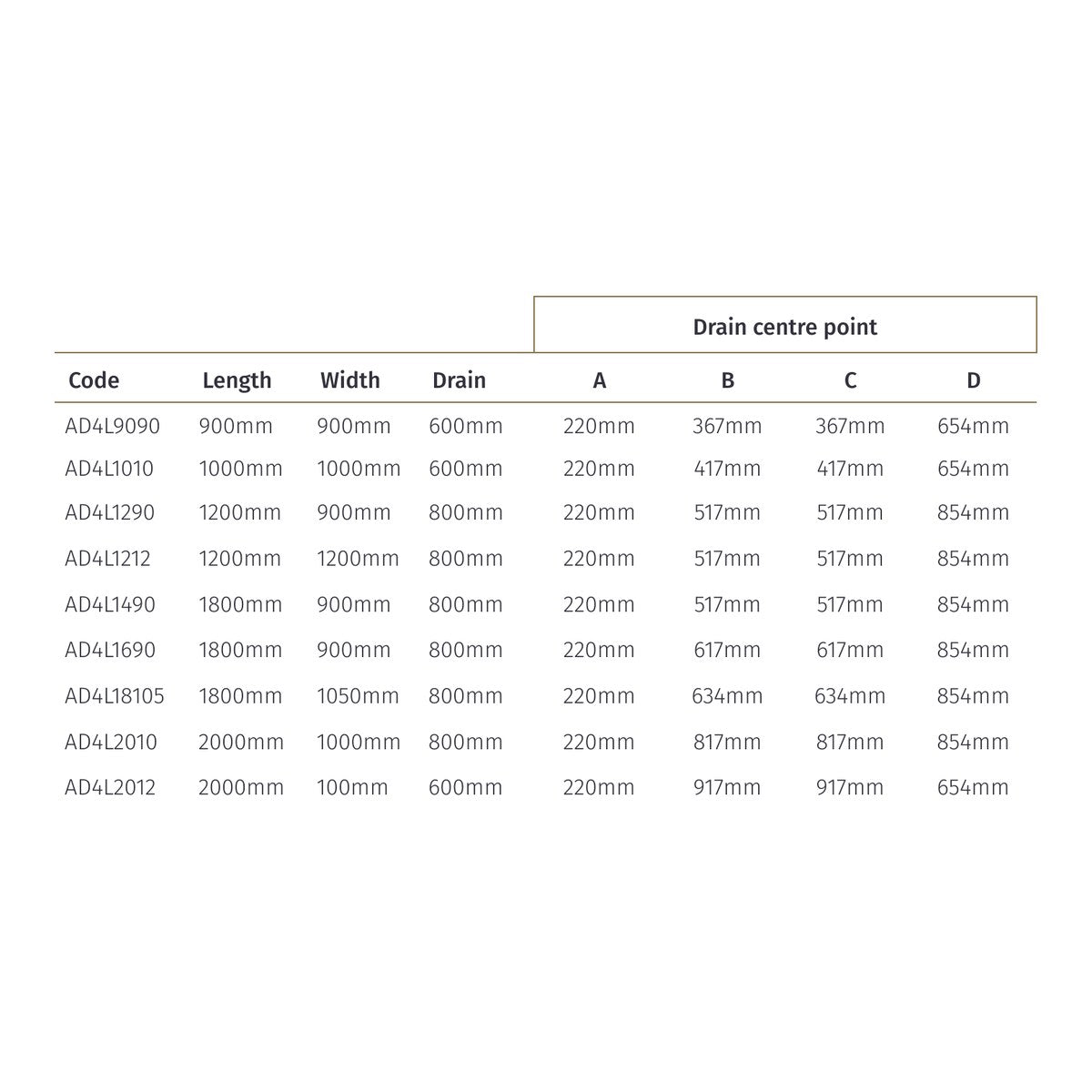

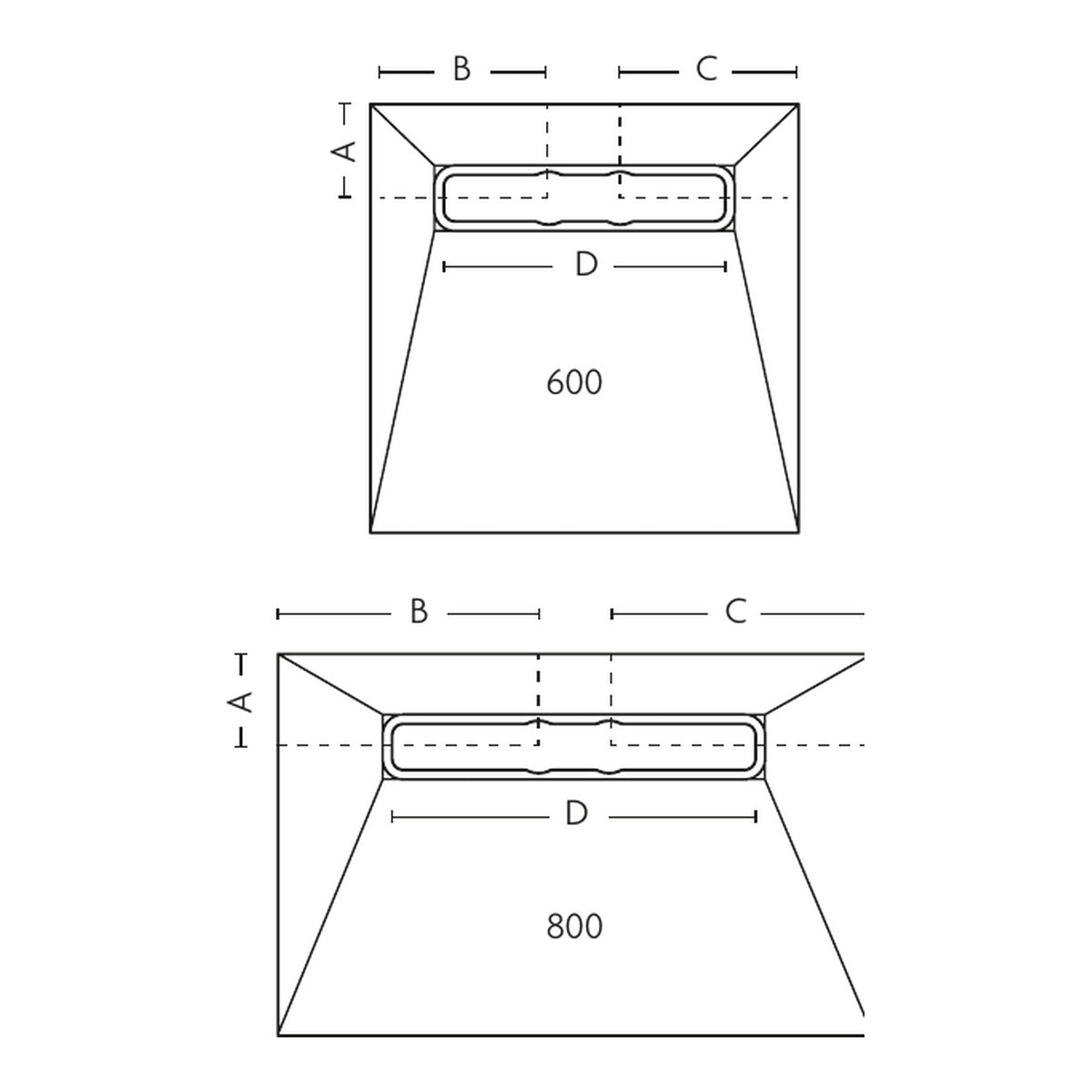

Sizes: AD4L9090: 900 x 900mm, 600mm drain (drain centre A 220mm, B 367mm, C 367mm, D 654mm)

AD4L1010: 1000 x 1000mm, 600mm drain (drain centre A 220mm, B 417mm, C 417mm, D 654mm)

AD4L1290: 1200 x 900mm, 800mm drain (drain centre A 220mm, B 517mm, C 517mm, D 854mm)

AD4L1212: 1200 x 1200mm, 800mm drain (drain centre A 220mm, B 517mm, C 517mm, D 854mm)

AD4L1490: 1400 x 900mm, 800mm drain (drain centre A 220mm, B 517mm, C 517mm, D 854mm)

AD4L1690: 1600 x 900mm, 800mm drain (drain centre A 220mm, B 617mm, C 617mm, D 854mm)

AD4L18105: 1800 x 1050mm, 800mm drain (drain centre A 220mm, B 634mm, C 634mm, D 854mm)

AD4L2010: 2000 x 1000mm, 800mm drain (drain centre A 220mm, B 817mm, C 817mm, D 854mm)

AD4L2012: 2000 x 1200mm, 600mm drain (drain centre A 220mm, B 917mm, C 917mm, D 654mm)
Thickness: 22mm
Gradients: 4
Average gradient: 1 in 40
Maximum flow rate: 35–40 l/min
Linear drain: 600mm or 800mm (size dependent)
Drain position: 194mm from the wall
Trimmable: Yes
Subfloor: Timber or concrete (18mm plyboard underboarding required)
Floor finish: Tiled
Drain: Sold separately — compatible Impey linear drain required
Guarantee: Lifetime Watertight Guarantee when completed with Impey WaterGuard™
Made in: United Kingdom
Product codes: 900 x 900mm (600mm drain) / No tanking kit AD4L9090
900 x 900mm (600mm drain) / WaterGuard 5m² floor kit AD4L9090 + WG5.
900 x 900mm (600mm drain) / WaterGuard 10m² floor kit AD4L9090 + WG10.
900 x 900mm (600mm drain) / WaterGuard 15m² wall & floor kit AD4L9090 + WG15WF
900 x 900mm (600mm drain) / WaterGuard 20m² wall & floor kit AD4L9090 + WG20WF
1000 x 1000mm (600mm drain) / No tanking kit AD4L1010
1000 x 1000mm (600mm drain) / WaterGuard 5m² floor kit AD4L1010 + WG5.
1000 x 1000mm (600mm drain) / WaterGuard 10m² floor kit AD4L1010 + WG10.
1000 x 1000mm (600mm drain) / WaterGuard 15m² wall & floor kit AD4L1010 + WG15WF
1000 x 1000mm (600mm drain) / WaterGuard 20m² wall & floor kit AD4L1010 + WG20WF
1200 x 900mm (800mm drain) / No tanking kit AD4L1290
1200 x 900mm (800mm drain) / WaterGuard 5m² floor kit AD4L1290 + WG5.
1200 x 900mm (800mm drain) / WaterGuard 10m² floor kit AD4L1290 + WG10.
1200 x 900mm (800mm drain) / WaterGuard 15m² wall & floor kit AD4L1290 + WG15WF
1200 x 900mm (800mm drain) / WaterGuard 20m² wall & floor kit AD4L1290 + WG20WF
1200 x 1200mm (800mm drain) / No tanking kit AD4L1212
1200 x 1200mm (800mm drain) / WaterGuard 5m² floor kit AD4L1212 + WG5.
1200 x 1200mm (800mm drain) / WaterGuard 10m² floor kit AD4L1212 + WG10.
1200 x 1200mm (800mm drain) / WaterGuard 15m² wall & floor kit AD4L1212 + WG15WF
1200 x 1200mm (800mm drain) / WaterGuard 20m² wall & floor kit AD4L1212 + WG20WF
1400 x 900mm (800mm drain) / No tanking kit AD4L1490
1400 x 900mm (800mm drain) / WaterGuard 5m² floor kit AD4L1490 + WG5.
1400 x 900mm (800mm drain) / WaterGuard 10m² floor kit AD4L1490 + WG10.
1400 x 900mm (800mm drain) / WaterGuard 15m² wall & floor kit AD4L1490 + WG15WF
1400 x 900mm (800mm drain) / WaterGuard 20m² wall & floor kit AD4L1490 + WG20WF
1600 x 900mm (800mm drain) / No tanking kit AD4L1690
1600 x 900mm (800mm drain) / WaterGuard 5m² floor kit AD4L1690 + WG5.
1600 x 900mm (800mm drain) / WaterGuard 10m² floor kit AD4L1690 + WG10.
1600 x 900mm (800mm drain) / WaterGuard 15m² wall & floor kit AD4L1690 + WG15WF
1600 x 900mm (800mm drain) / WaterGuard 20m² wall & floor kit AD4L1690 + WG20WF
1800 x 1050mm (800mm drain) / No tanking kit AD4L18105
1800 x 1050mm (800mm drain) / WaterGuard 5m² floor kit AD4L18105 + WG5.
1800 x 1050mm (800mm drain) / WaterGuard 10m² floor kit AD4L18105 + WG10.
1800 x 1050mm (800mm drain) / WaterGuard 15m² wall & floor kit AD4L18105 + WG15WF
1800 x 1050mm (800mm drain) / WaterGuard 20m² wall & floor kit AD4L18105 + WG20WF
2000 x 1000mm (800mm drain) / No tanking kit AD4L2010
2000 x 1000mm (800mm drain) / WaterGuard 5m² floor kit AD4L2010 + WG5.
2000 x 1000mm (800mm drain) / WaterGuard 10m² floor kit AD4L2010 + WG10.
2000 x 1000mm (800mm drain) / WaterGuard 15m² wall & floor kit AD4L2010 + WG15WF
2000 x 1000mm (800mm drain) / WaterGuard 20m² wall & floor kit AD4L2010 + WG20WF
2000 x 1200mm (600mm drain) / No tanking kit AD4L2012
2000 x 1200mm (600mm drain) / WaterGuard 5m² floor kit AD4L2012 + WG5.
2000 x 1200mm (600mm drain) / WaterGuard 10m² floor kit AD4L2012 + WG10.
2000 x 1200mm (600mm drain) / WaterGuard 15m² wall & floor kit AD4L2012 + WG15WF
2000 x 1200mm (600mm drain) / WaterGuard 20m² wall & floor kit AD4L2012 + WG20WF
