Impey Aqua-Dec EasyFit Wetroom Floor Former

Product description

The award-winning Impey Aqua-Dec EasyFit is Impey's most versatile wetroom floor former, designed to suit almost any wetroom layout. Its patented 360° rotating central drain plate lets installers work around joists, services and structural constraints with ease.

At 22mm thick it is a direct replacement for standard floorboards, sitting flush in timber floors or recessed into concrete to create a level-access wetroom for tiled or vinyl finishes. Available in 12 sizes, all with an average 1 in 40 gradient and a maximum flow rate of 36 l/min.

Please note: Impey wetroom floor formers and drains are sold separately — a compatible Impey drain is required to complete the installation.

Add WaterGuard™ tanking

Impey's Lifetime Watertight Guarantee requires the entire wetroom floor to be tanked with Impey WaterGuard™. Choose a WaterGuard kit with your former, sized to the area you're tanking:

5m² floor kit (WG5) — 5m² membrane, 500ml BAL primer, 15m jointing tape, 5 internal corners, 1 external corner, butyl sealant
10m² floor kit (WG10) — 10m² membrane, 500ml BAL primer, 2 x 10m jointing tape, 5 internal corners, 1 external corner, butyl sealant
15m² wall & floor kit (WG15WF) — 5m² + 10m² membrane, 2 x 500ml BAL primer, 15m + 10m jointing tape, 5 internal corners, 1 external corner, 2 x butyl sealant
20m² wall & floor kit (WG20WF) — 2 x 10m² membrane, 2 x 500ml BAL primer, 3 x 10m jointing tape, 5 internal corners, 1 external corner, 2 x butyl sealant

WaterGuard™ is a 1mm self-adhesive tanking and decoupling membrane — no drying time, suitable for large-format tiles up to 30kg/m² and compatible with Aqua-Mat™ underfloor heating. Floor coverage is mandatory for the guarantee; tanking the shower-area walls as well is recommended.

Lead time: 2–5 working days from order.

Key features

Patented 360° rotating drain plate for complete freedom on site
Designed to help avoid joists and services

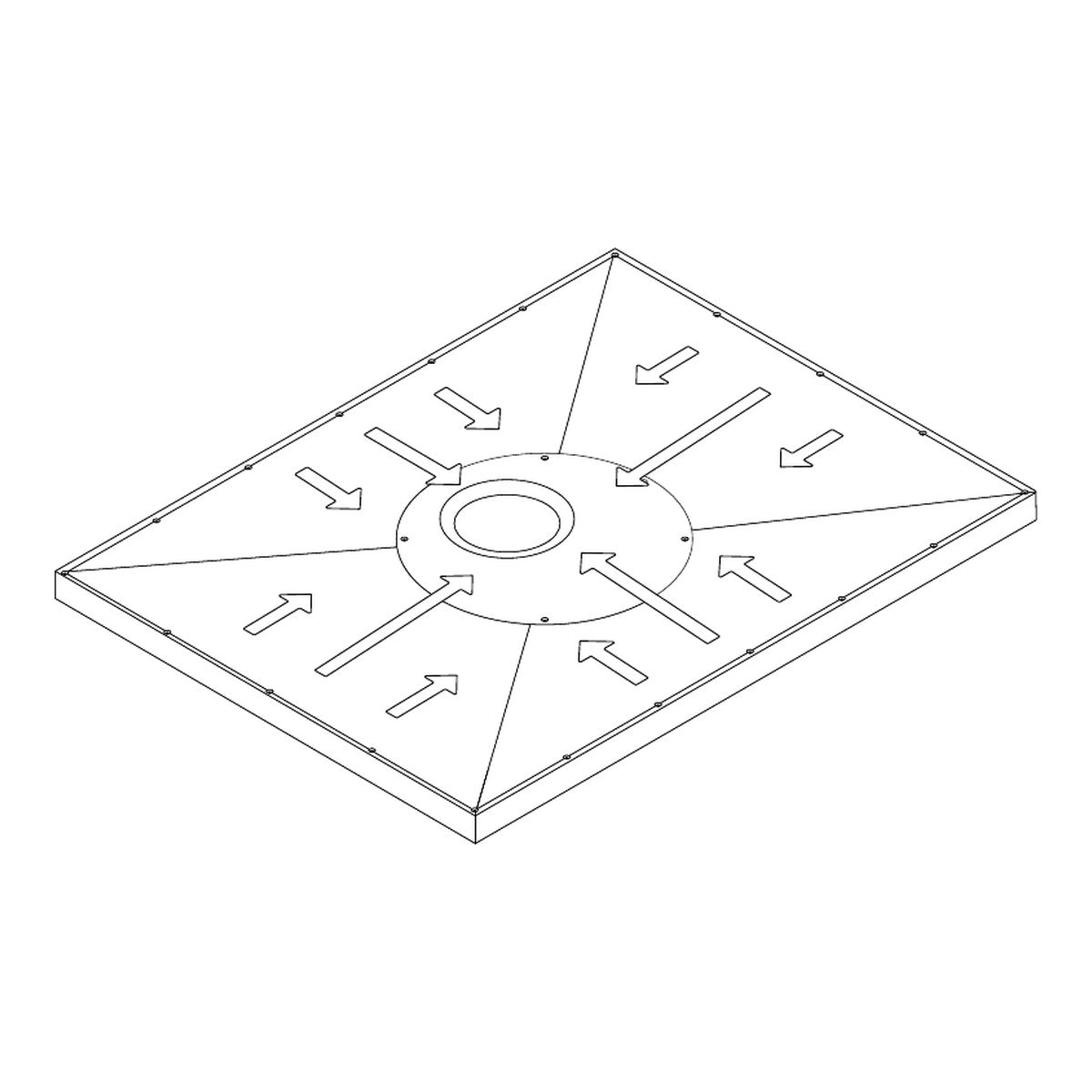

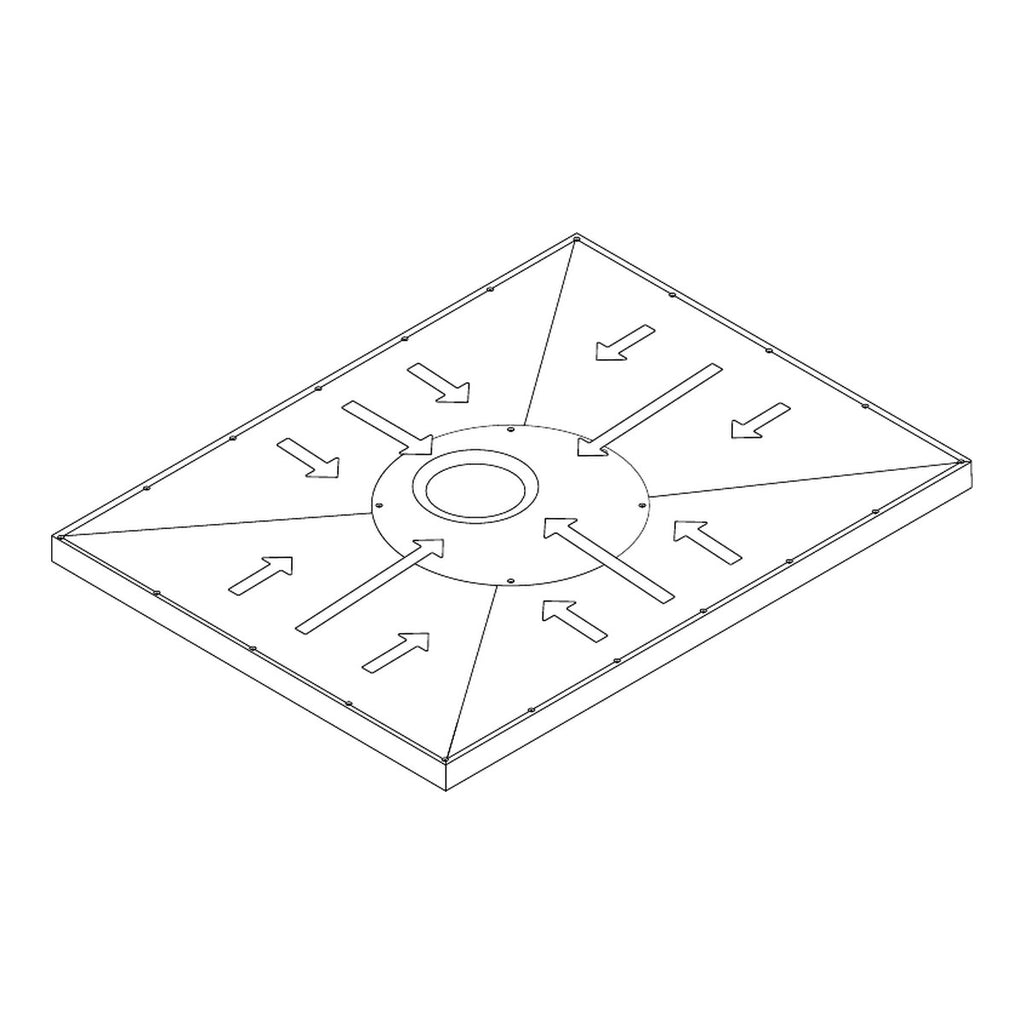

Four pre-formed drainage gradients
22mm thick to match standard floorboards
Tested to support loads of up to 300kg (47 stone)
Lightweight, strong construction

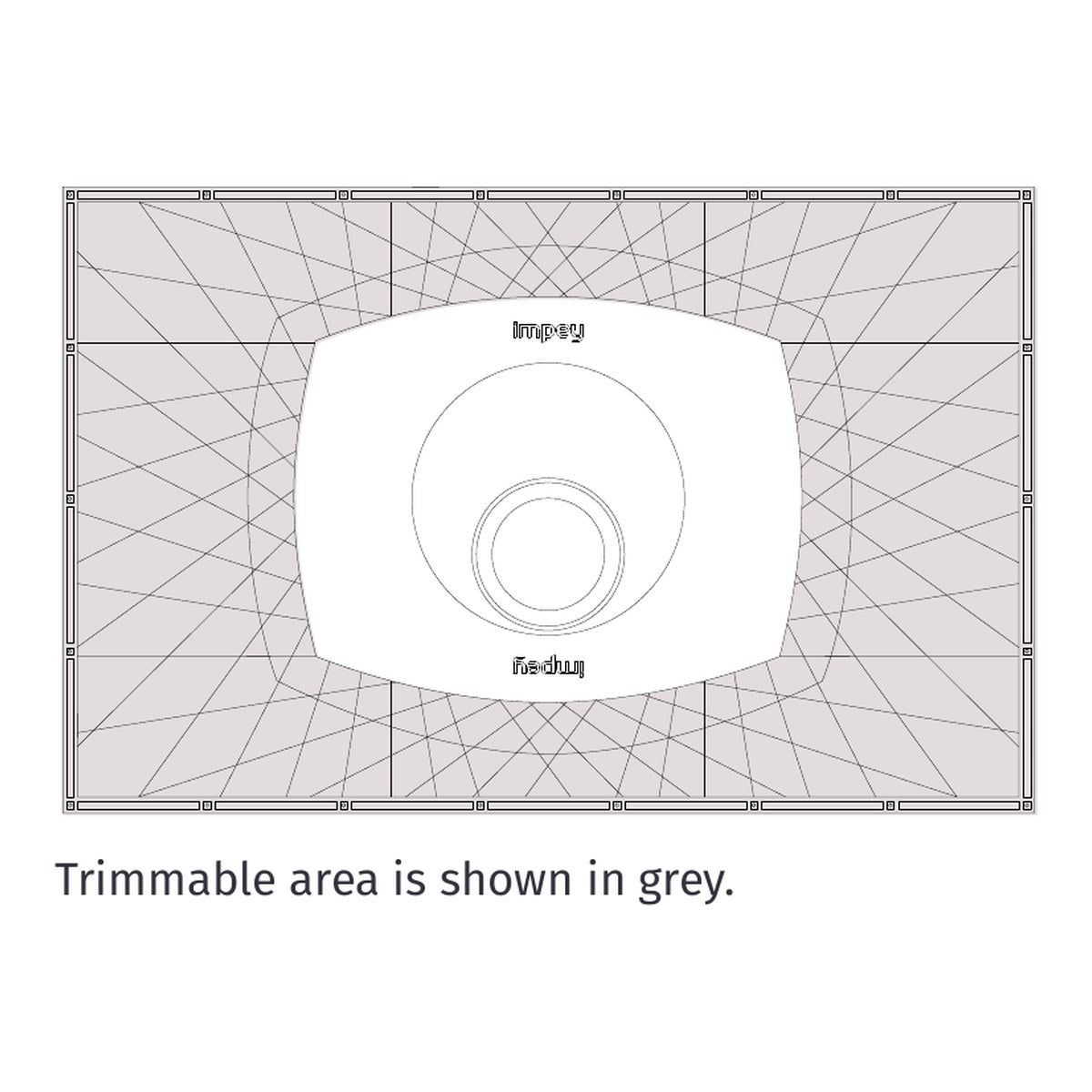

Trimmable up to the smooth central area
Suitable for tiled or vinyl floors
Suitable for timber or concrete floors
No underboarding required for joist centres of 415mm or less (18mm plyboard required above 415mm)
Can be cut with a diamond cutting blade
Build It Awards 2019 — Best Drainage or Plumbing Product
Lifetime Watertight Guarantee when completed with Impey WaterGuard™

Technical information

Brand: Impey
Range: EasyFit
Model: Aqua-Dec EasyFit™

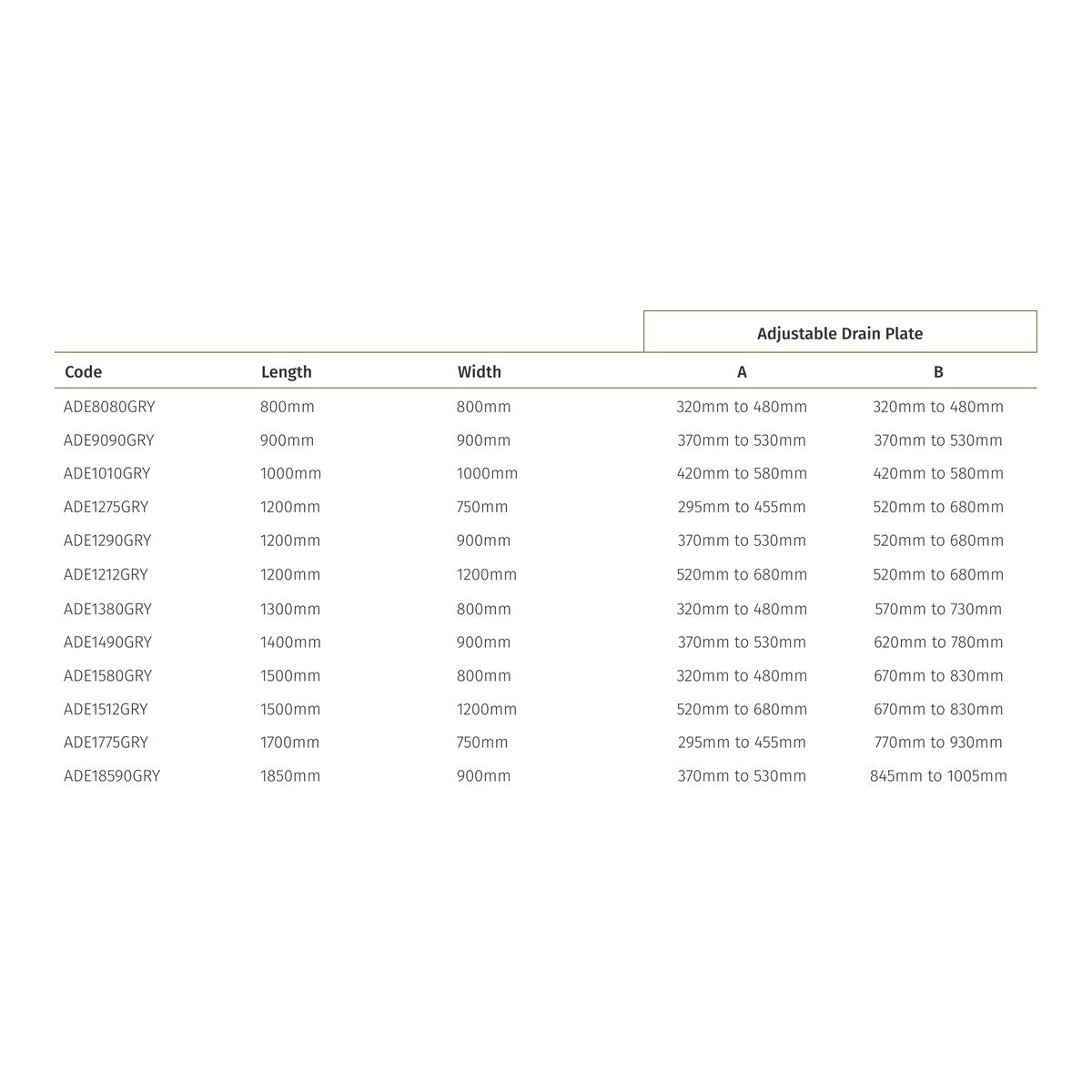

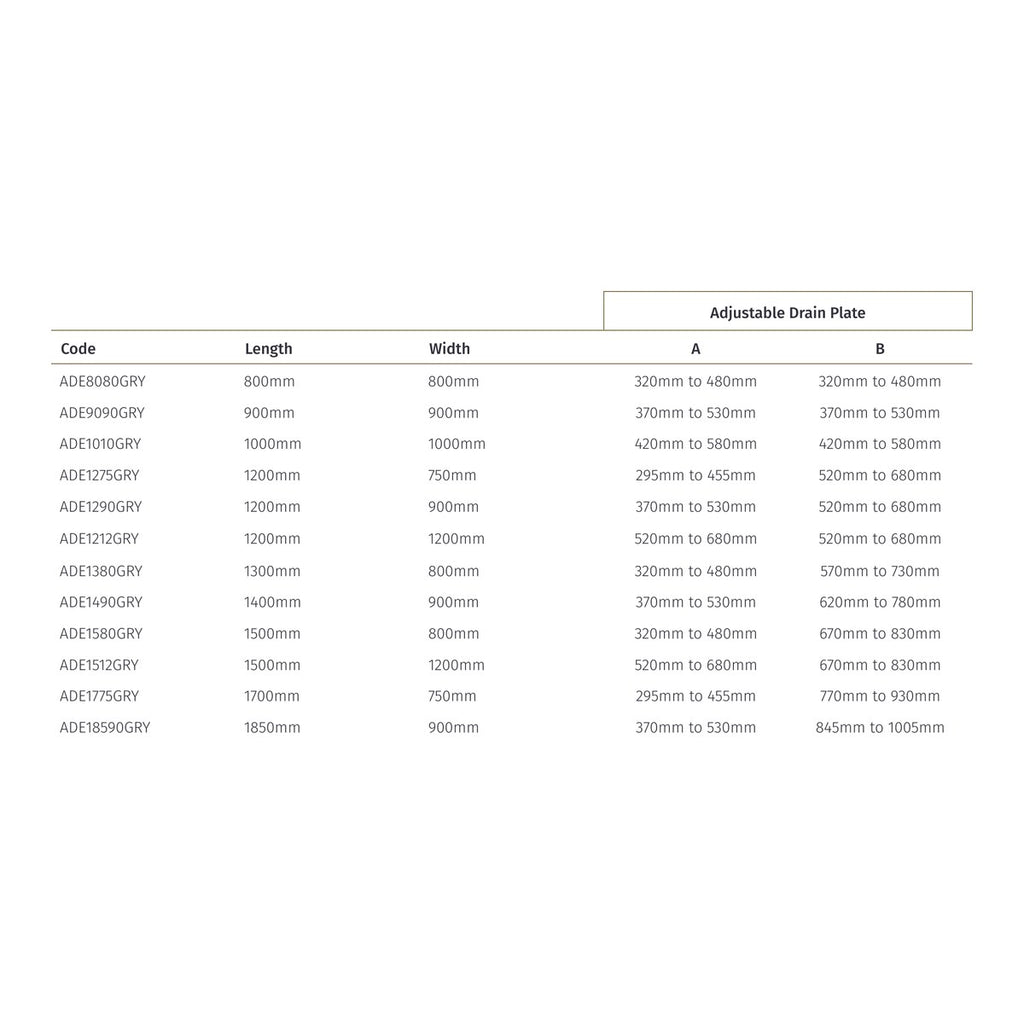

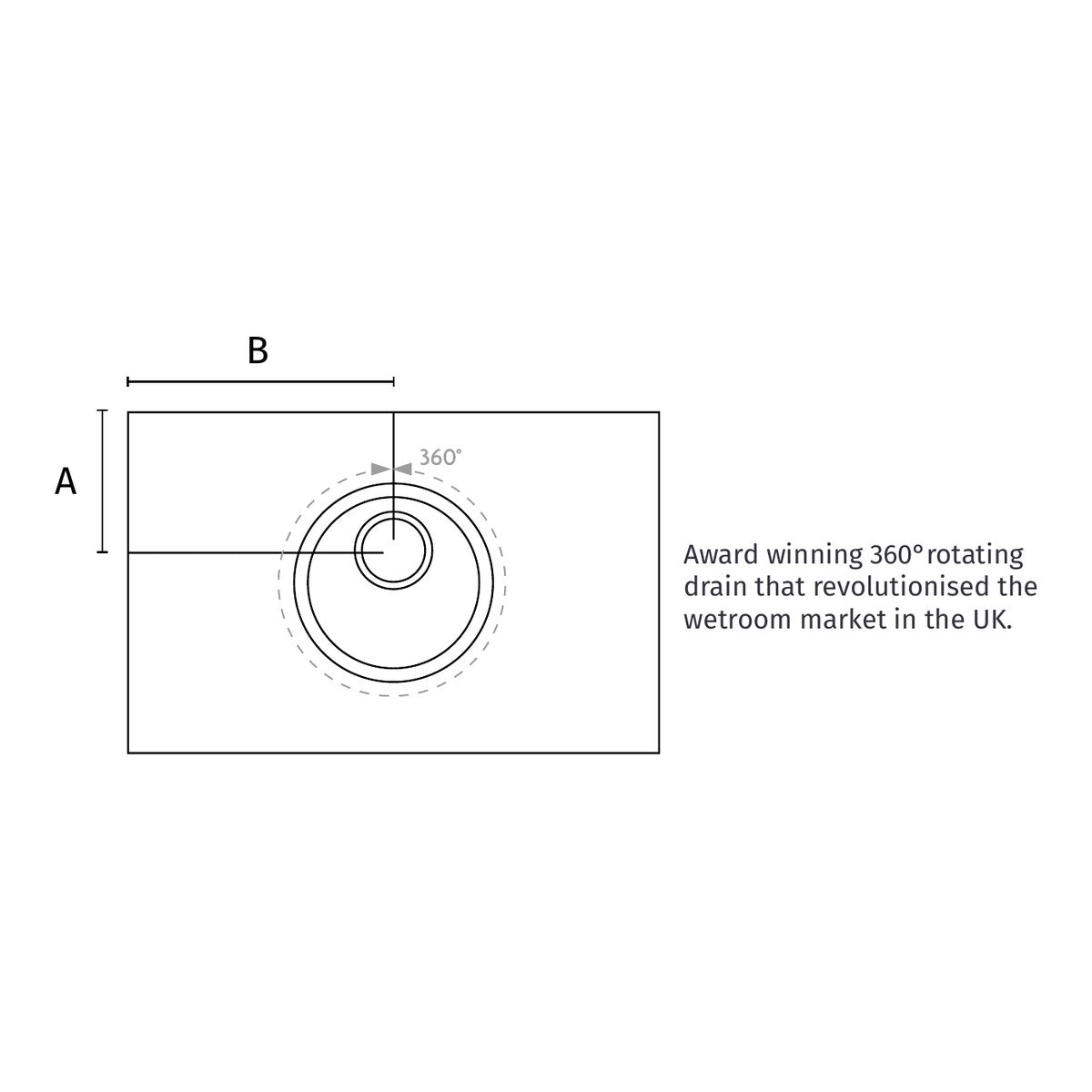

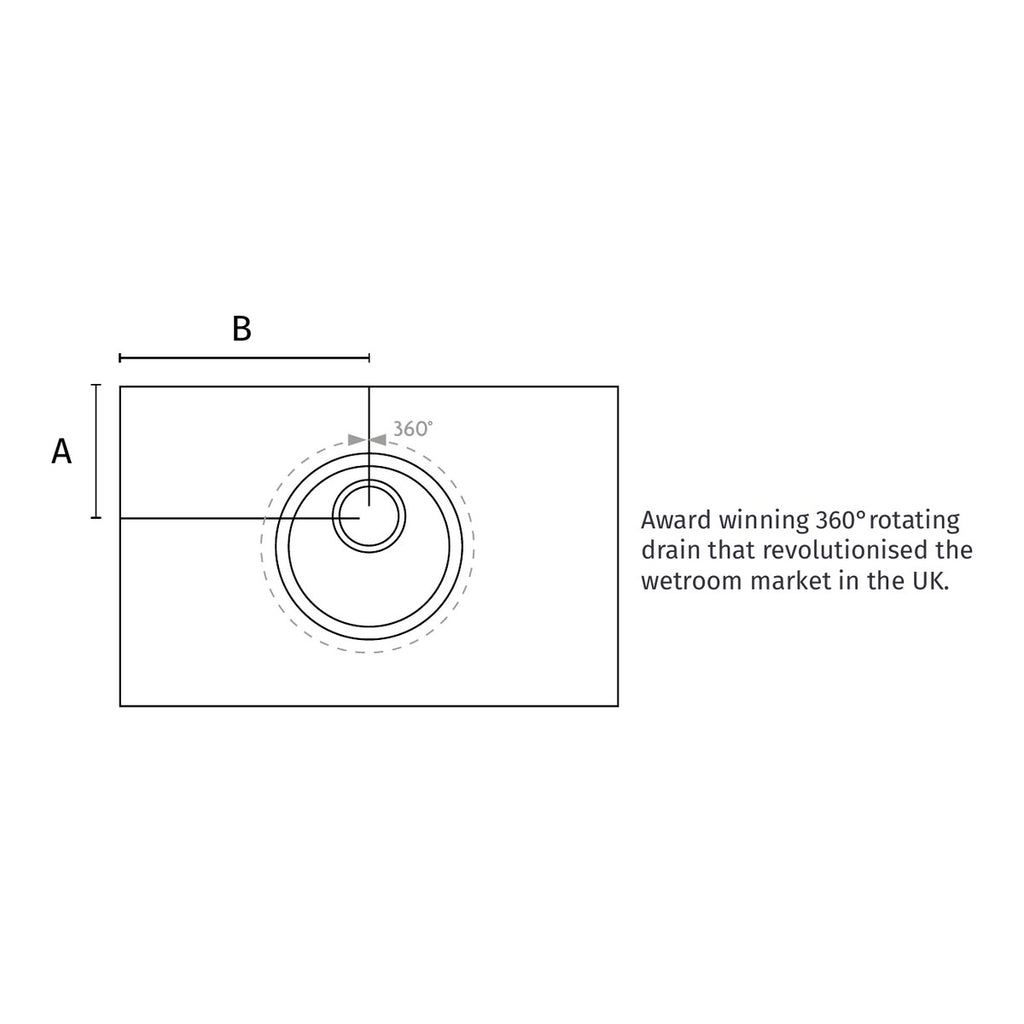

Sizes: ADE8080GRY: 800 x 800mm (adjustable drain plate position A 320–480mm, B 320–480mm)

ADE9090GRY: 900 x 900mm (adjustable drain plate position A 370–530mm, B 370–530mm)

ADE1010GRY: 1000 x 1000mm (adjustable drain plate position A 420–580mm, B 420–580mm)

ADE1275GRY: 1200 x 750mm (adjustable drain plate position A 295–455mm, B 520–680mm)

ADE1290GRY: 1200 x 900mm (adjustable drain plate position A 370–530mm, B 520–680mm)

ADE1212GRY: 1200 x 1200mm (adjustable drain plate position A 520–680mm, B 520–680mm)

ADE1380GRY: 1300 x 800mm (adjustable drain plate position A 320–480mm, B 570–730mm)

ADE1490GRY: 1400 x 900mm (adjustable drain plate position A 370–530mm, B 620–780mm)

ADE1580GRY: 1500 x 800mm (adjustable drain plate position A 320–480mm, B 670–830mm)

ADE1512GRY: 1500 x 1200mm (adjustable drain plate position A 520–680mm, B 670–830mm)

ADE1775GRY: 1700 x 750mm (adjustable drain plate position A 295–455mm, B 770–930mm)

ADE18590GRY: 1850 x 900mm (adjustable drain plate position A 370–530mm, B 845–1005mm)
Thickness: 22mm
Gradient: Four pre-formed gradients, 1 in 40 average
Maximum flow rate: 36 l/min
Drain plate: Central 360° rotating drain plate with built-in gradient
Load: Tested to 300kg (47 stone)
Trimmable: Yes — up to the smooth central area
Subfloor: Timber or concrete (no underboarding needed for joist centres up to 415mm)
Floor finish: Tiled or vinyl
Drain: Sold separately — compatible Impey drain required
Guarantee: Lifetime Watertight Guarantee when completed with Impey WaterGuard™
Made in: United Kingdom
Product codes: 800 x 800mm / No tanking kit ADE8080GRY
900 x 900mm / No tanking kit ADE9090GRY
1000 x 1000mm / No tanking kit ADE1010GRY
1200 x 750mm / No tanking kit ADE1275GRY
1200 x 900mm / No tanking kit ADE1290GRY
1200 x 1200mm / No tanking kit ADE1212GRY
1300 x 800mm / No tanking kit ADE1380GRY
1400 x 900mm / No tanking kit ADE1490GRY
1500 x 800mm / No tanking kit ADE1580GRY
1500 x 1200mm / No tanking kit ADE1512GRY
1700 x 750mm / No tanking kit ADE1775GRY
1850 x 900mm / No tanking kit ADE18590GRY
800 x 800mm / WaterGuard 5m² floor kit ADE8080GRY + WG5.
800 x 800mm / WaterGuard 10m² floor kit ADE8080GRY + WG10.
800 x 800mm / WaterGuard 15m² wall & floor kit ADE8080GRY + WG15WF
800 x 800mm / WaterGuard 20m² wall & floor kit ADE8080GRY + WG20WF
900 x 900mm / WaterGuard 5m² floor kit ADE9090GRY + WG5.
900 x 900mm / WaterGuard 10m² floor kit ADE9090GRY + WG10.
900 x 900mm / WaterGuard 15m² wall & floor kit ADE9090GRY + WG15WF
900 x 900mm / WaterGuard 20m² wall & floor kit ADE9090GRY + WG20WF
1000 x 1000mm / WaterGuard 5m² floor kit ADE1010GRY + WG5.
1000 x 1000mm / WaterGuard 10m² floor kit ADE1010GRY + WG10.
1000 x 1000mm / WaterGuard 15m² wall & floor kit ADE1010GRY + WG15WF
1000 x 1000mm / WaterGuard 20m² wall & floor kit ADE1010GRY + WG20WF
1200 x 750mm / WaterGuard 5m² floor kit ADE1275GRY + WG5.
1200 x 750mm / WaterGuard 10m² floor kit ADE1275GRY + WG10.
1200 x 750mm / WaterGuard 15m² wall & floor kit ADE1275GRY + WG15WF
1200 x 750mm / WaterGuard 20m² wall & floor kit ADE1275GRY + WG20WF
1200 x 900mm / WaterGuard 5m² floor kit ADE1290GRY + WG5.
1200 x 900mm / WaterGuard 10m² floor kit ADE1290GRY + WG10.
1200 x 900mm / WaterGuard 15m² wall & floor kit ADE1290GRY + WG15WF
1200 x 900mm / WaterGuard 20m² wall & floor kit ADE1290GRY + WG20WF
1200 x 1200mm / WaterGuard 5m² floor kit ADE1212GRY + WG5.
1200 x 1200mm / WaterGuard 10m² floor kit ADE1212GRY + WG10.
1200 x 1200mm / WaterGuard 15m² wall & floor kit ADE1212GRY + WG15WF
1200 x 1200mm / WaterGuard 20m² wall & floor kit ADE1212GRY + WG20WF
1300 x 800mm / WaterGuard 5m² floor kit ADE1380GRY + WG5.
1300 x 800mm / WaterGuard 10m² floor kit ADE1380GRY + WG10.
1300 x 800mm / WaterGuard 15m² wall & floor kit ADE1380GRY + WG15WF
1300 x 800mm / WaterGuard 20m² wall & floor kit ADE1380GRY + WG20WF
1400 x 900mm / WaterGuard 5m² floor kit ADE1490GRY + WG5.
1400 x 900mm / WaterGuard 10m² floor kit ADE1490GRY + WG10.
1400 x 900mm / WaterGuard 15m² wall & floor kit ADE1490GRY + WG15WF
1400 x 900mm / WaterGuard 20m² wall & floor kit ADE1490GRY + WG20WF
1500 x 800mm / WaterGuard 5m² floor kit ADE1580GRY + WG5.
1500 x 800mm / WaterGuard 10m² floor kit ADE1580GRY + WG10.
1500 x 800mm / WaterGuard 15m² wall & floor kit ADE1580GRY + WG15WF
1500 x 800mm / WaterGuard 20m² wall & floor kit ADE1580GRY + WG20WF
1500 x 1200mm / WaterGuard 5m² floor kit ADE1512GRY + WG5.
1500 x 1200mm / WaterGuard 10m² floor kit ADE1512GRY + WG10.
1500 x 1200mm / WaterGuard 15m² wall & floor kit ADE1512GRY + WG15WF
1500 x 1200mm / WaterGuard 20m² wall & floor kit ADE1512GRY + WG20WF
1700 x 750mm / WaterGuard 5m² floor kit ADE1775GRY + WG5.
1700 x 750mm / WaterGuard 10m² floor kit ADE1775GRY + WG10.
1700 x 750mm / WaterGuard 15m² wall & floor kit ADE1775GRY + WG15WF
1700 x 750mm / WaterGuard 20m² wall & floor kit ADE1775GRY + WG20WF
1850 x 900mm / WaterGuard 5m² floor kit ADE18590GRY + WG5.
1850 x 900mm / WaterGuard 10m² floor kit ADE18590GRY + WG10.
1850 x 900mm / WaterGuard 15m² wall & floor kit ADE18590GRY + WG15WF
1850 x 900mm / WaterGuard 20m² wall & floor kit ADE18590GRY + WG20WF
