Hansgrohe
Hansgrohe RainSelect Basic Set for 4 Outlets
£1,569.00
Taxes included.
Shipping calculated at checkout.
15312180
- Free deliveryon orders over £500
- Price matchguarantee
- Expert adviceavailable
Product description

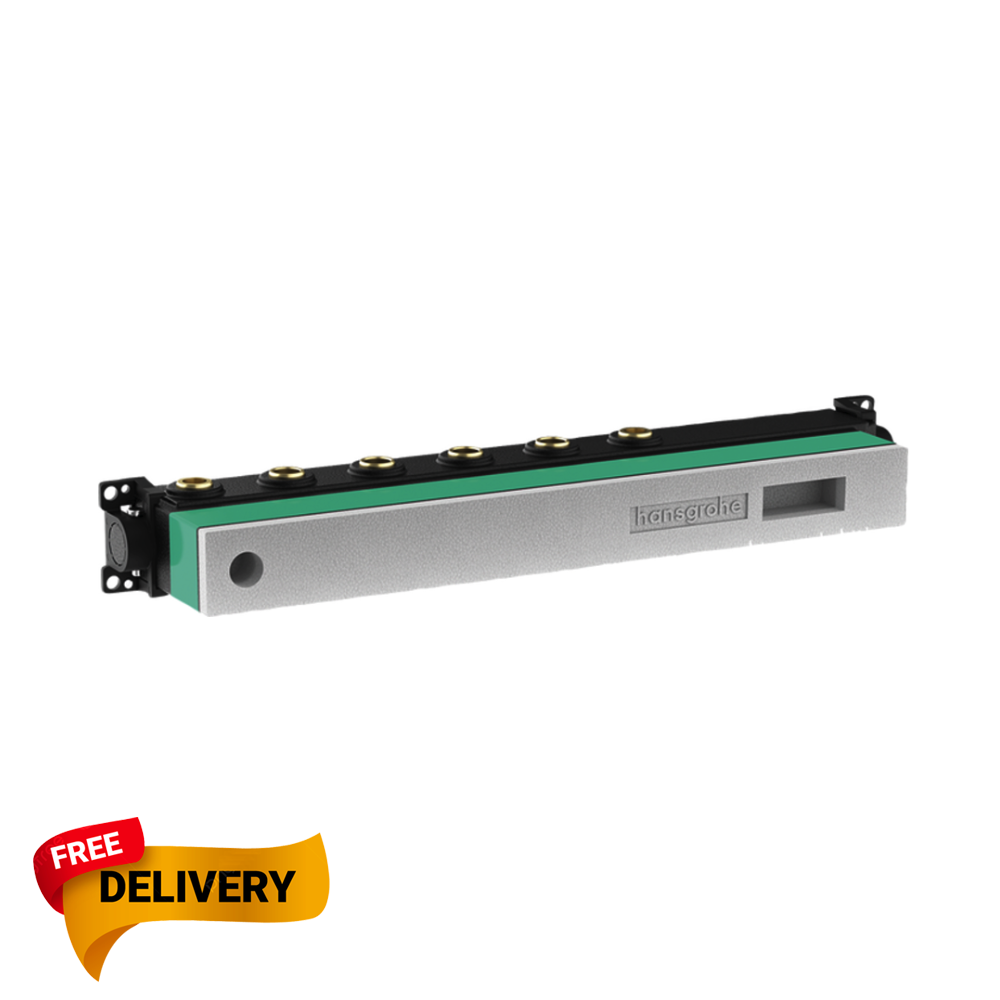

The hansgrohe RainSelect Basic Set for 4 Outlets is the in-wall body that sits behind a RainSelect thermostat for 4 functions, fitted at first fix so the finish set can be added once the wall is tiled.
Only the basic set is supplied here; the visible RainSelect finish set is ordered separately in your chosen finish.
Key features
- Concealed rough-in body for the RainSelect thermostat for 4 functions
- Rp ¾ connection thread
- Horizontal installation
- Mounting depth 92 to 120 mm
- Operating pressure 1 to 10 bar
- If used with a pump, specify a universal (negative head) pump
- WRAS approved
- Finish set sold separately
Technical information
- Brand
- hansgrohe
- Range
- RainSelect
- Product code
- 15312180
- Installation
- Concealed, horizontal
- Outlets
- 4
- Connection
- Rp ¾
- Mounting depth
- 92–120 mm
- Minimum pressure
- 1 bar
- Maximum pressure
- 10 bar
- Approvals
- WRAS 2207061
- Guarantee
- 5 Years
- Product code
- 15312180
Downloads

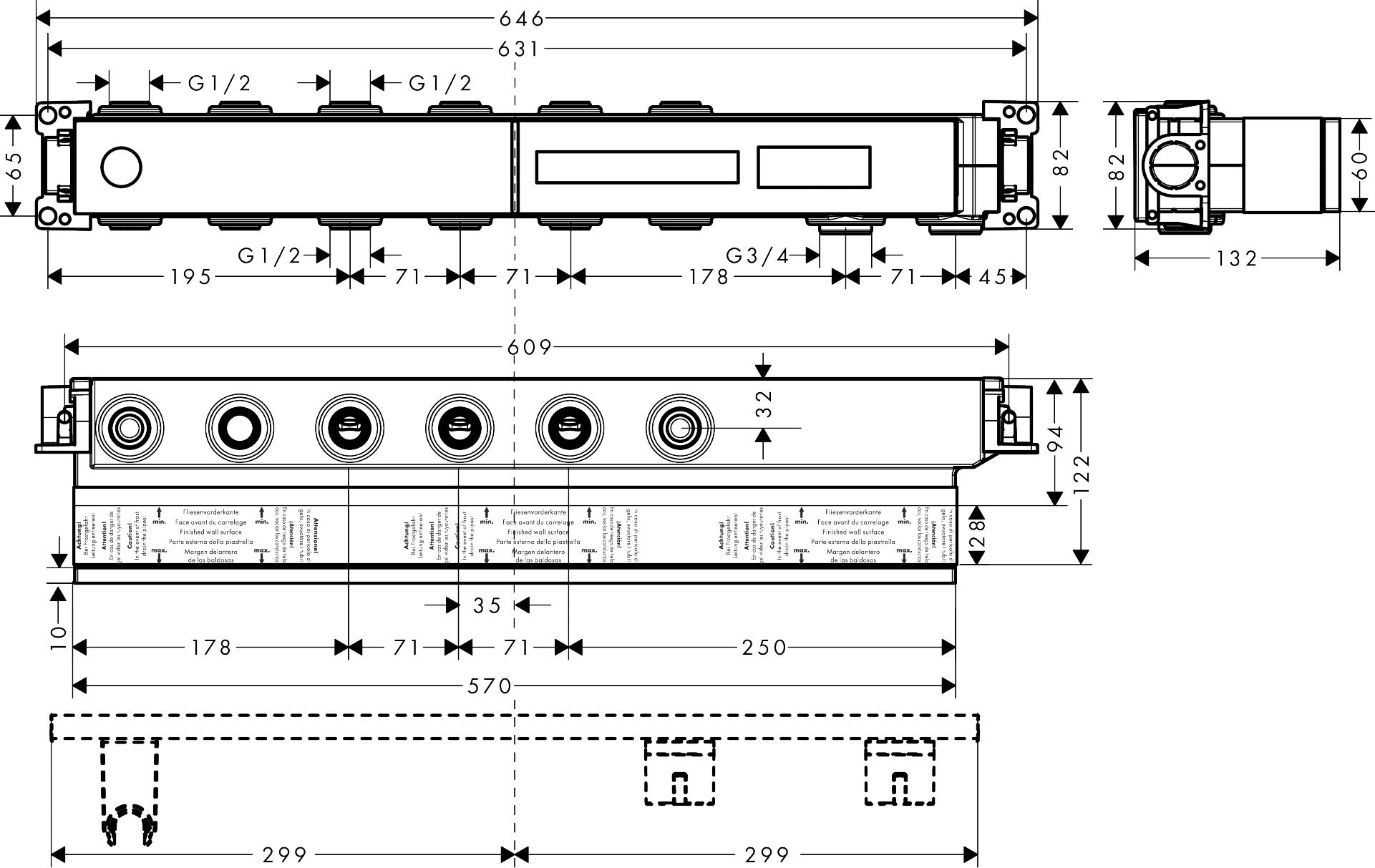

- Technical drawingPDF – Manufacturer technical drawing Download
