Hansgrohe
Hansgrohe iBox universal 2 Basic Set ½"
£154.00
Taxes included.
Shipping calculated at checkout.
01500180
- Free deliveryon orders over £500
- Price matchguarantee
- Expert adviceavailable
Product description

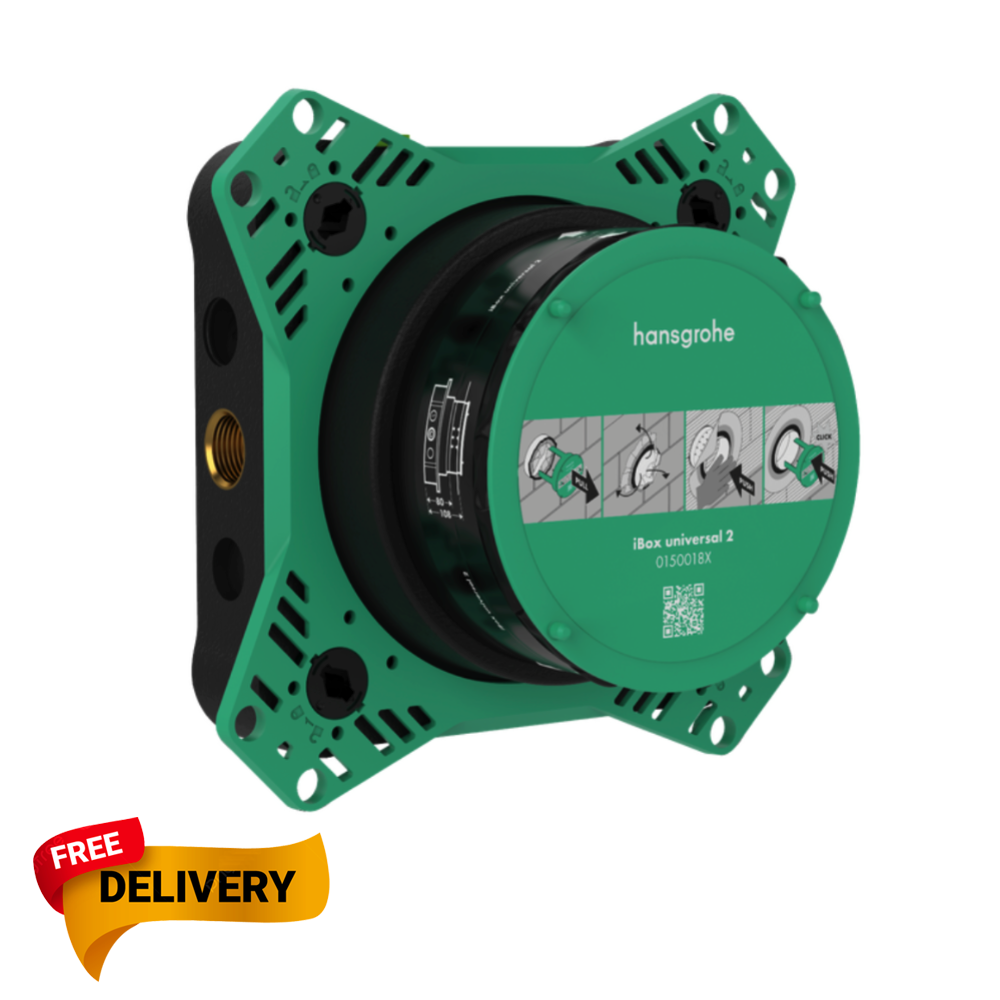

The hansgrohe iBox universal 2 Basic Set ½" is the next-generation concealed body behind hansgrohe and AXOR shower, bath and thermostatic finish sets, fitted once at first fix so the finish set can be chosen later.
Made from dezincification-resistant brass in a heat- and sound-insulating EPP foam housing.
Key features
- Suits new concealed finish sets such as ShowerSelect Comfort and DuoTurn
- With the adapter plate (13588000), also takes earlier iBox universal finish sets
- Rp ½ connection thread
- Rotationally symmetrical installation
- Flexible mounting ring adjustable in 5 mm steps, for front or rear fixing
- Sliding sleeve, so no shortening is needed
- Integrated spirit level and support for horizontal and vertical alignment
- Factory-fitted sealing foil; M16 conduit for a power supply
- Mounting depth 80 to 108 mm
- Operating pressure 1 to 10 bar, WRAS approved
Technical information
- Brand
- hansgrohe
- Range
- iBox universal 2
- Product code
- 01500180
- Material
- Brass, EPP foam
- Installation
- Concealed
- Connection
- Rp ½
- Mounting depth
- 80–108 mm
- Minimum pressure
- 1 bar
- Maximum pressure
- 10 bar
- Approvals
- WRAS 2311009
- Guarantee
- 5 Years
- Product code
- 01500180
Downloads

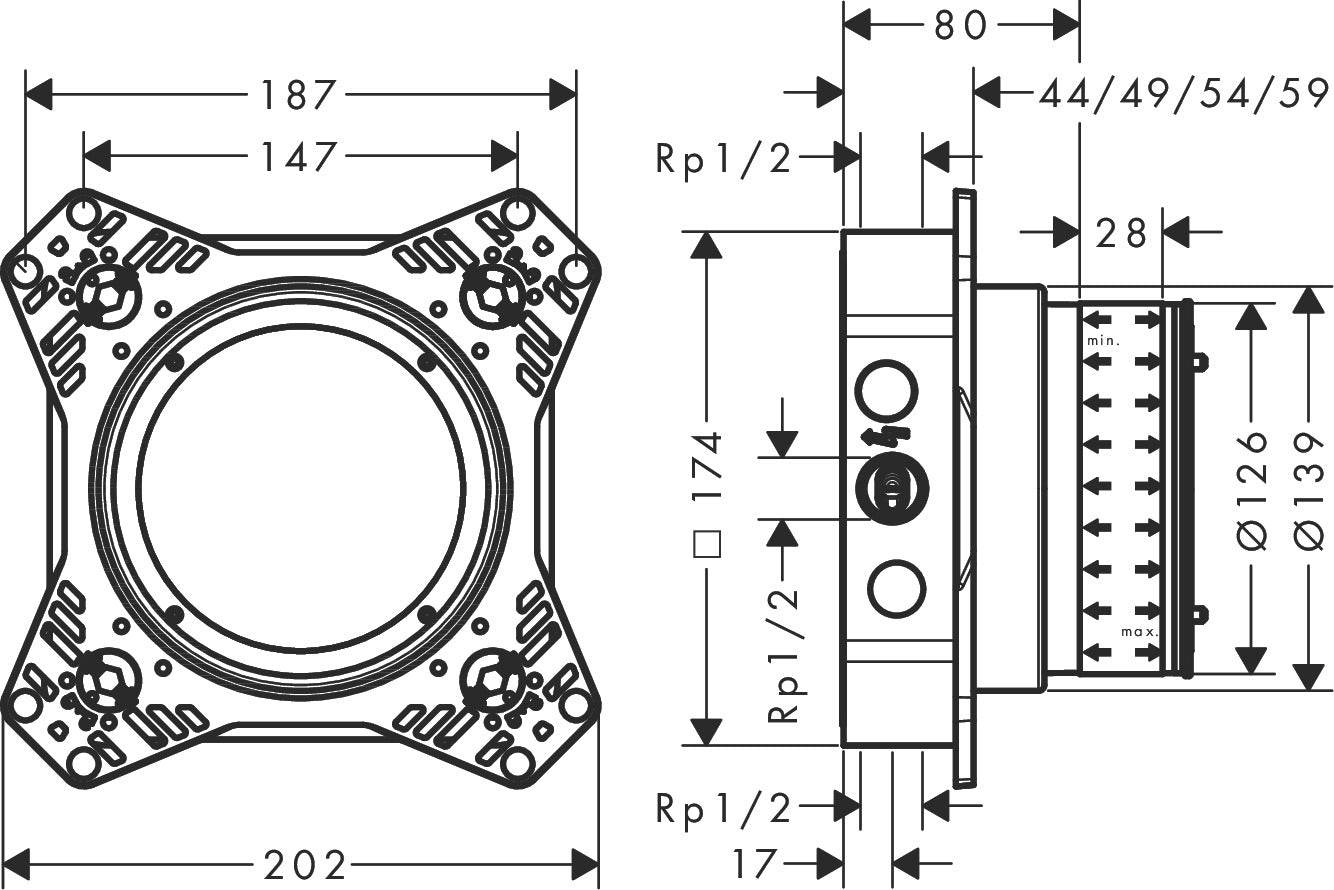

- Technical drawingPDF – Manufacturer technical drawing Download
