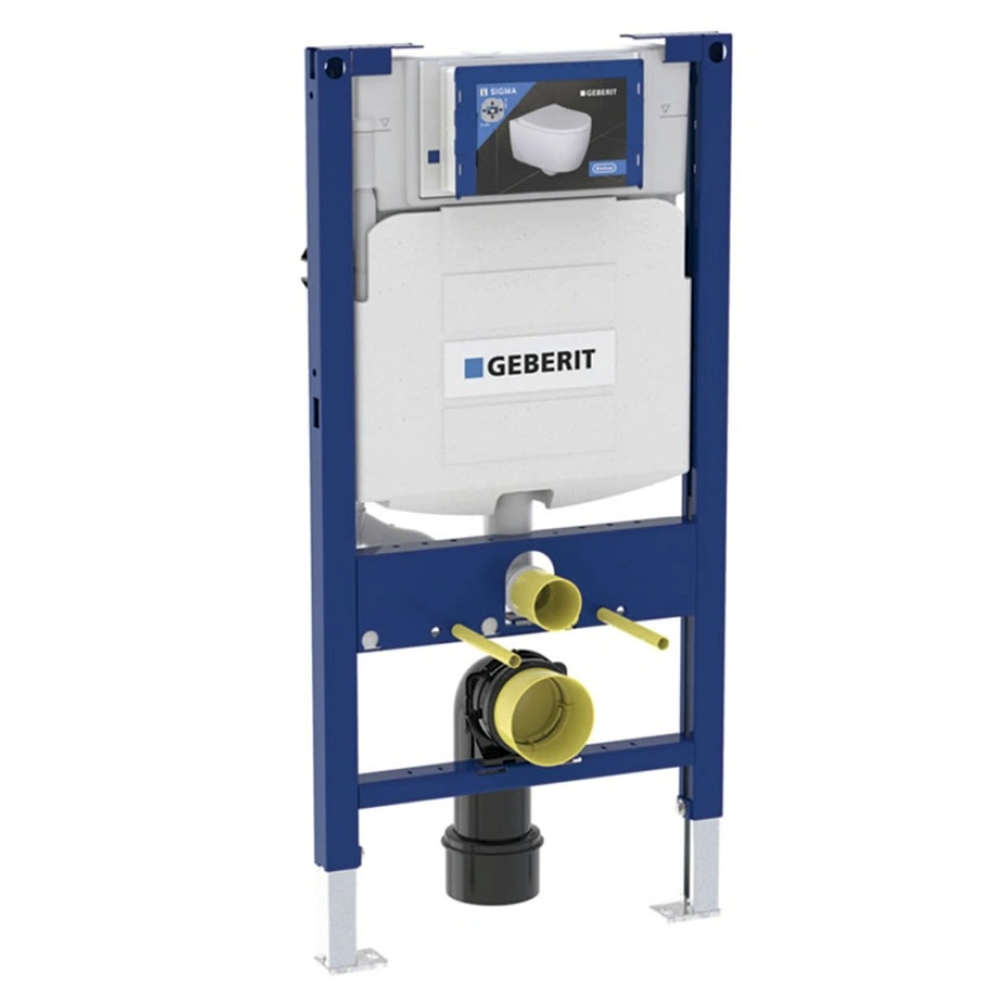

Geberit Duofix 980mm Concealed Wall-Hung WC Frame & Sigma Cistern

Designed by Geberit for easy installation and lasting quality, this wall-hung toilet frame and cistern features a durable powder-coated steel frame and a water-saving dual-flush cistern. With a versatile 980mm height, it fits most contemporary bathrooms, allowing only the flush plate and toilet pan to remain visible for a clean, minimalist look that maximises space and style.

Specification :

Dual-flush concealed cistern with front actuation
Insulated against condensation and protected against moisture and dirt
Water supply connection on the left or rear left
Flush volume: 5.8 / 3 litres
Small flush adjustable from 2 to 4 litres
Self-supporting, powder-coated steel frame
Galvanised feet, adjustable 0-200mm
Rotatable foot plates
Non-slip leg supports
Tool-free installation and maintenance
Connection bend can be mounted without tools at different depths with an adjustable range of 45mm
Fastening for connection bend is sound absorbing
For use with Geberit Sigma flush plates (excluding Sigma80 models) – see required products

Installation suitability:

Suitable for drywall construction
Suitable for installation in part-height Geberit Duofix system walls
Suitable for part-height prewall installations
For wall-hung toilets with projections up to 62mm
For floor constructions 0–200mm
