Geberit Duofix 1120mm WC Frame with Delta 12cm Cistern
- Free deliveryon orders over £500
- Price matchguarantee
- Expert adviceavailable
Product description
The Geberit Duofix 1120mm WC Frame with Delta 12cm Cistern is the standard-height Geberit frame at a sharper price point, with the Delta cistern in place of Sigma.
At Home of Clay we supply the Geberit range alongside the Crosswater, Coalbrook and BC Designs bathrooms in our Newcastle-under-Lyme showroom in Staffordshire. Talk a specification through with us before you order and we will check that the frame, cistern, flush plate and pan all work together.
What’s included

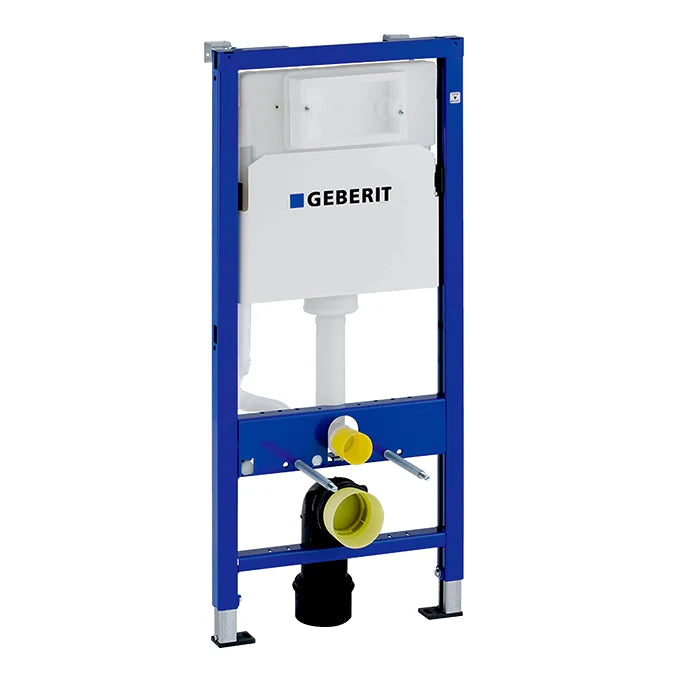

- Duofix frame with Delta 12cm cistern
- R ½ angle stop valve with adaptor ring
- Protection box for service opening
- 2 distance bolts
- 2 wall anchors
- WC connection set ø90mm
- 90° PE-HD connection bend ø90mm
- PE-HD adaptor socket ø90/110mm
- Flush reduction cup 4.0 / 2.6 litres
- Panelling crossbar
- 2 M12 threaded rods and fixings
Key features
- Blow-moulded cistern — One piece, leak-tested, fully insulated.
- Self-supporting frame — Powder-coated, open top, galvanised adjustable feet.
- Comprehensive kit — Wall anchors, connection set, bend, adaptor and panelling crossbar included.
- AquaClean ready — Conduit and electrical fixing point.
- 25-year spare parts — Function-maintaining parts guaranteed for 25 years.
Technical information
- Brand
- Geberit
- Range
- Duofix / Delta
- Product code
- 458.132.00.1
- Product type
- Wall-hung WC frame with concealed cistern
- Dimensions (H x W x D)
- 1120 x 500 x 120mm
- Floor construction
- 0–20cm
- WC projection
- Up to 62cm
- Cistern standard
- EN 14055, Class II
- Flush plate
- Sold separately — Geberit Delta or Alpha plate
- Product code
- 458.132.00.1
Delta frames take Geberit Delta and Alpha flush plates only — Sigma plates will not fit. They are a cost-effective way into a genuine Geberit installation, with the same frame engineering as the Sigma range.

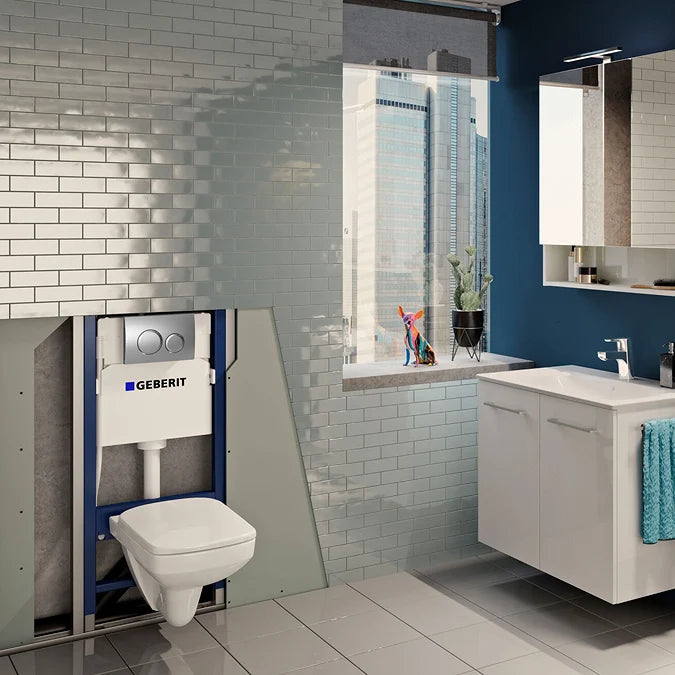

For part-height prewall installation in UW50 profiles. Water supply at the rear or top centre; WC projection up to 62cm.
