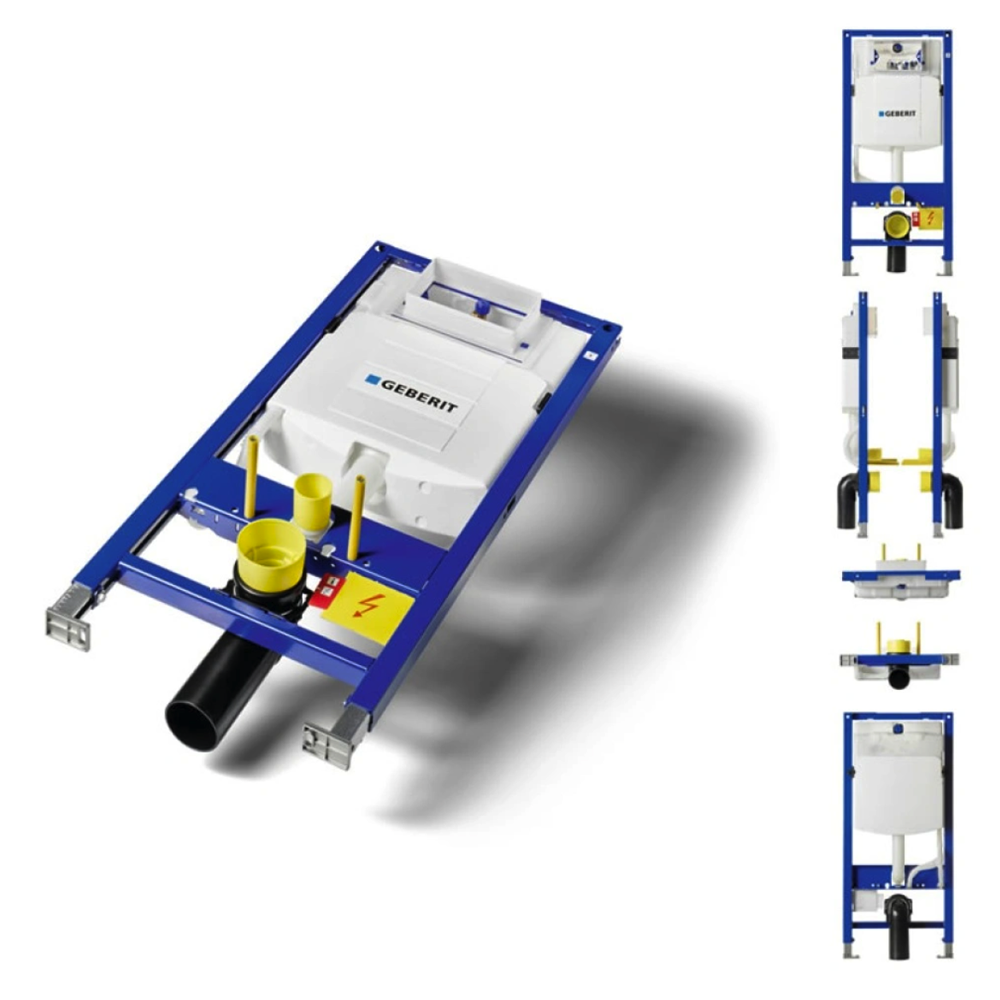

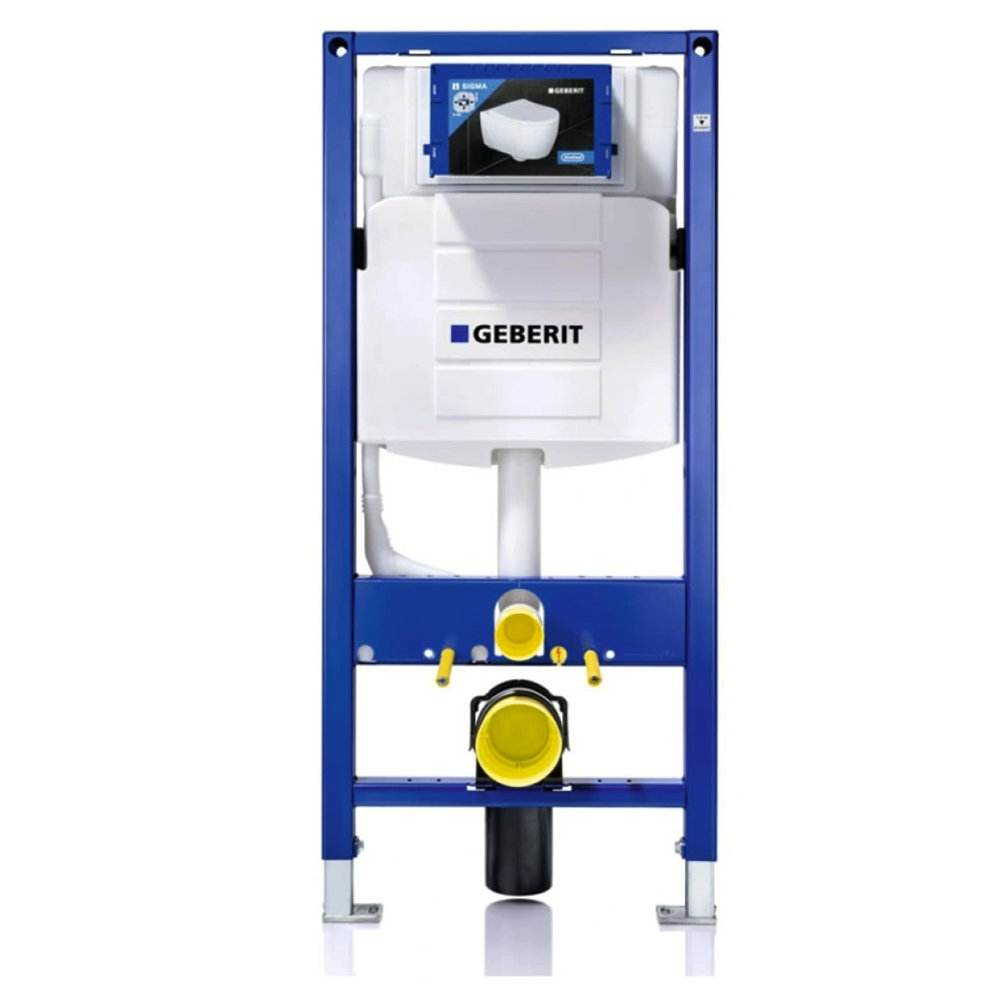

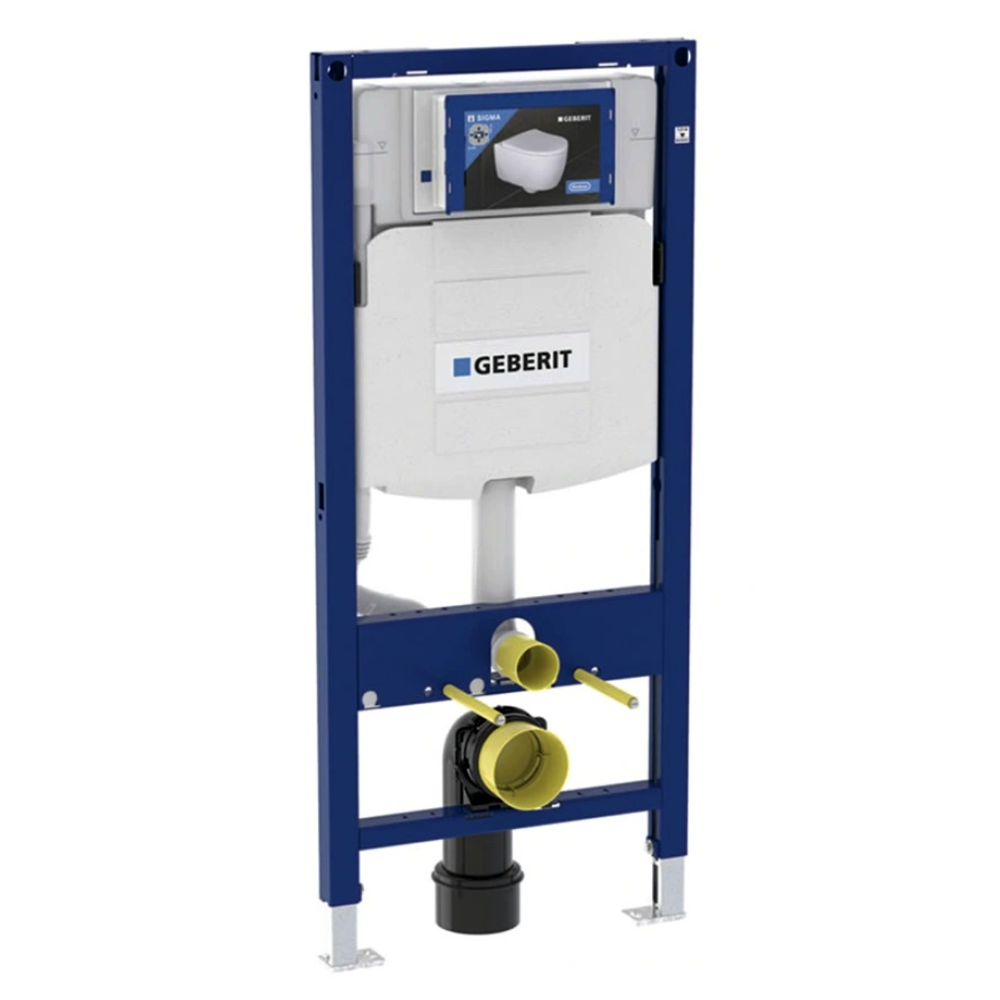

Geberit Duofix 1120mm Concealed Wall-Hung Frame & Sigma Cistern

Expertly engineered by Geberit, this advanced concealed frame offers a modern solution for wall-hung toilets. Built for durability and easy installation, it fits neatly inside your bathroom wall, leaving only the flush plate and toilet pan visible for a sleek, minimalist finish-perfect for contemporary bathrooms. The frame features a dual-flush Sigma cistern with front actuation, fully insulated against condensation for lasting performance.

Specification

Concealed cistern with front actuation, fully insulated against condensation
Self-supporting, powder-coated frame
Frame with ø9mm drilling holes for fastening in wood frame construction
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces

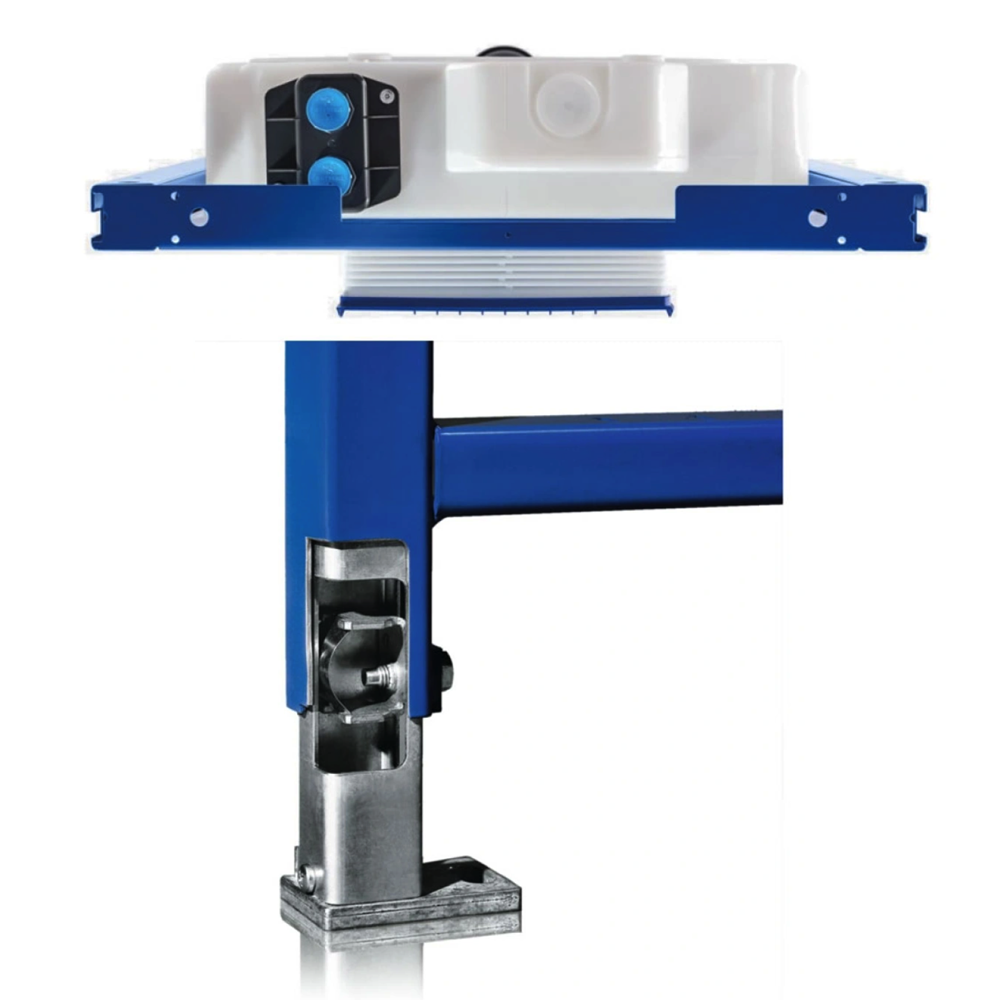

Galvanised feet, non-slip leg supports, rotatable foot supports and 0-20mm feet adjustment
Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
5.8 litre and 3 litre factory flush settings, small flush adjustable from 2-4 litres
Connection bend can be mounted without tools at different depths with an adjustable range of 45mm
Flush plate not included – see required products

Installation suitability:

For drywall construction
For installation in part or room-height prewall installations
For installation in room-height installation walls
For installation in part or room-height Geberit Duofix system walls
For wall-hung WCs with connection dimensions in accordance with EN 33:2011
For wall-hung WCs with projection up to 620mm
For floor constructions 0–200mm
