Coalbrook Concealed Shower Valve Trimset 3 Outlet DO3003 including C-Box CO3003

The Coalbrook Concealed Shower Valve Trimset 3 Outlet DO3003 is the three-outlet thermostatic valve from the Domo range, supplied with the C-Box CO3003. It carries the product code DO3003 and suits a larger shower running an overhead, a handset and a body jet or second head. Available in 4 finishes: Brushed Brass, Chrome, Gunmetal and Brushed Nickel.

Home of Clay is a Coalbrook stockist, with the range on display at our Newcastle-under-Lyme showroom in Staffordshire.

Key features

• Three outlets — Overhead, handset and a third function such as a body jet or second head.
• Thermostatic control — Holds temperature when another outlet in the house is drawn off.

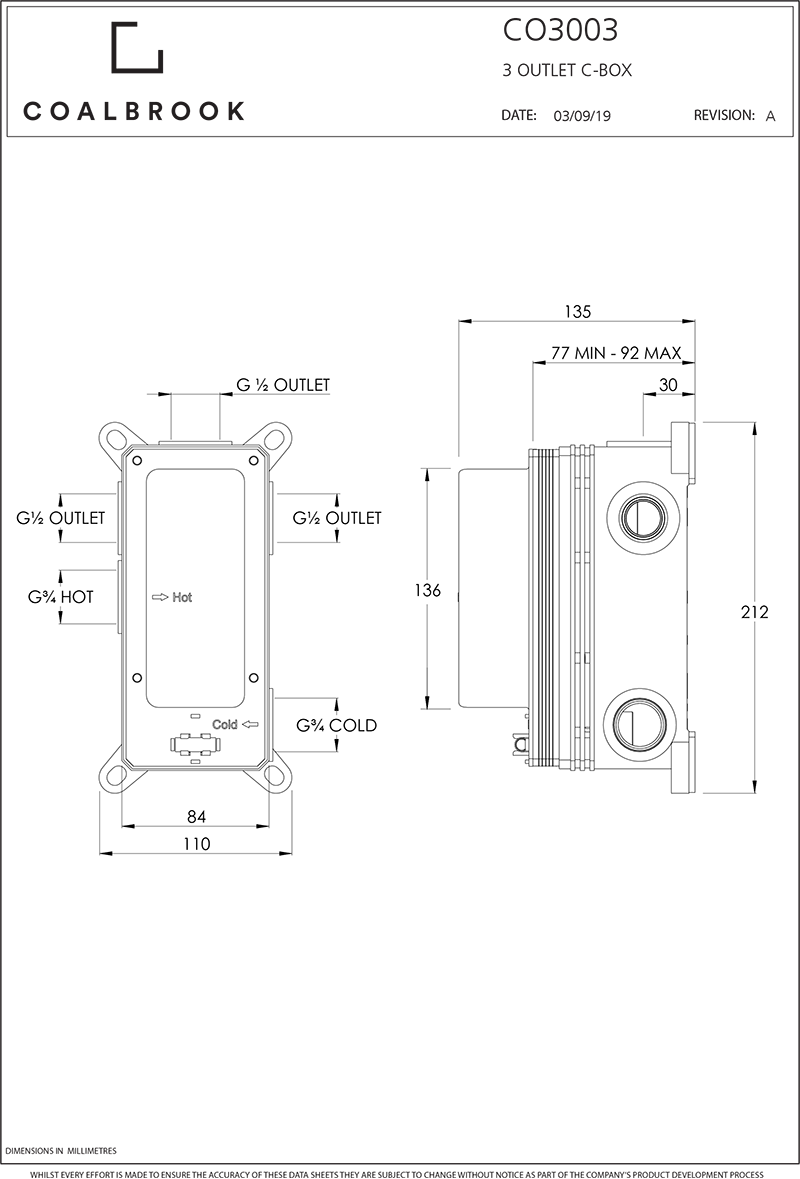

• C-Box included — Supplied with CO3003, the concealed body that goes into the wall.

Before you specify three outlets

Check the supply can serve it. Three outlets on a modest system means each performs poorly, and running two at once can leave both weak. If your pressure or flow rate is limited, two outlets well served will feel considerably better than three that are not. Tell us your system type and we will say honestly which we would specify — including if that means selling you the cheaper valve.

Three outlets is also a plumbing decision as much as a brassware one. The pipework has to be run to all three positions at first fix, and the layout of the enclosure has to be settled before the wall closes. This is not a specification to finalise late.

Heads, handsets and body jets are separate items in matching finishes. The CO4003 and CO4004 heads and the CO4001 wall outlet and handset are the usual companions — worth putting on the same order so the shower arrives complete rather than in stages.

Technical specification

Pricing and availability

Contact us for price. Ask for Matt or Greg on 01782 617517 or email sales@homeofclay.co.uk with the finish you want, and we will come back to you the same working day with a price and a lead time.
