Bard & Brazier La Fayette Floating Hydronic Towel Rail

Product description

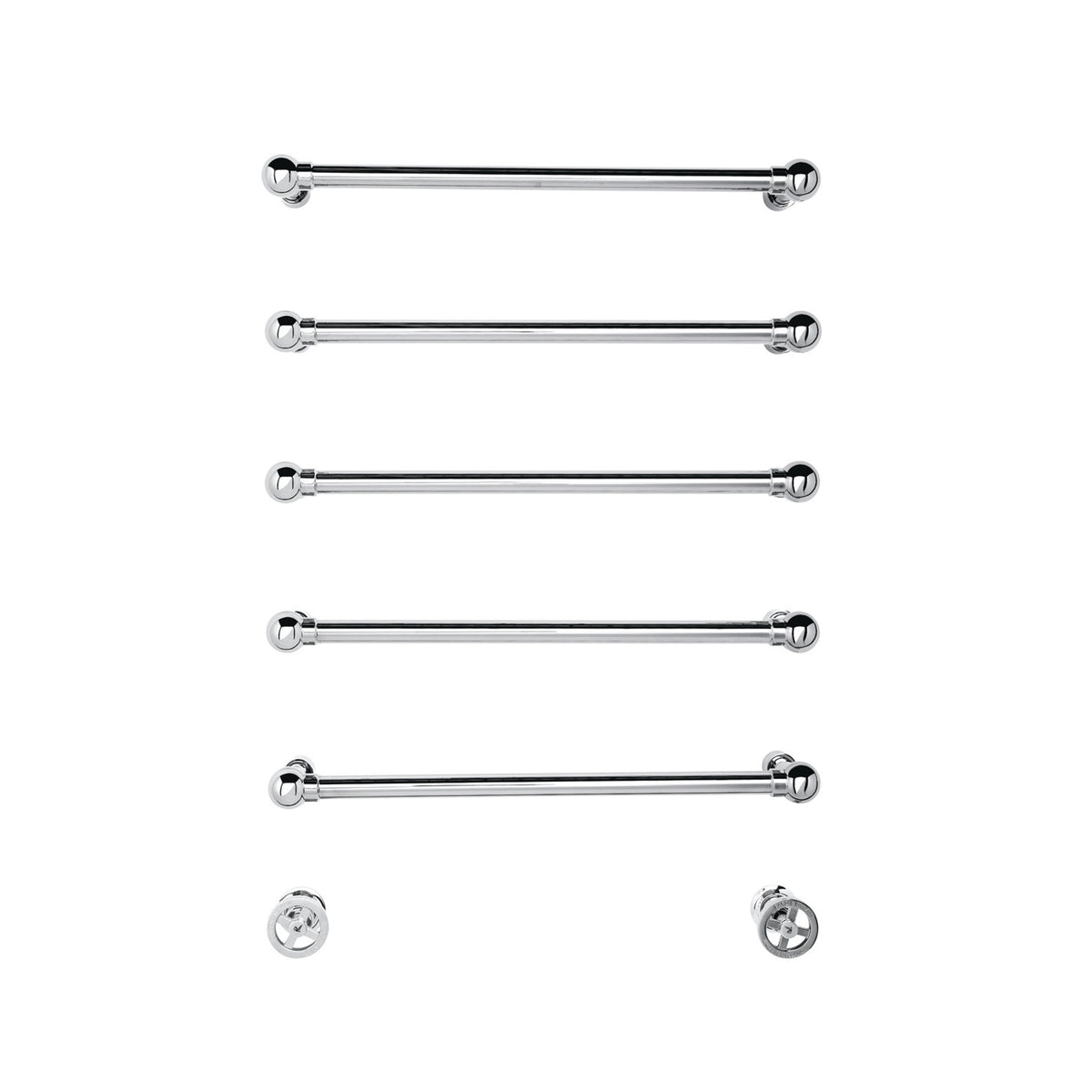

The Bard & Brazier La Fayette Floating Hydronic Towel Rail FLF1 brings the La Fayette's period ball joints and rounded ends to a modern floating format, with each bar fixed to the wall on its own — and runs on your central heating or hot water. Choose from one to five bars, 585mm flange to flange, in 12 hand-applied finishes. Choose the matching INF1 installation frame in the Installation Frame option — it is needed for every new installation and its price is added to the rail.

What the price covers: The price shown is for the complete set of bars chosen in the Bars option, plus the matching installation frame if you select it. It is not a price per bar. To fit more than one set, increase the quantity.

Home of Clay is a Bard & Brazier stockist. Every rail is made by hand to order at their factory in Wolverhampton, and our team at the Newcastle-under-Lyme showroom in Staffordshire can help you choose the size, finish and fuel type.

Where to use the La Fayette floating hydronic rail

Use it where you want a towel warmer that looks built in: above a bath, on the wall of a walk-in shower area or on a short run of wall between a basin and a window. Outputs range from 145 Btu/h for a single bar to 725 Btu/h for five, so it is a towel warmer rather than a room heater — keep a radiator or underfloor heating in larger bathrooms.

Pricing and availability

Prices shown include VAT and update with the number of bars, finish and installation frame you select. Bard & Brazier rails are made to order, so confirm the current lead time with us before you order. Bespoke RAL powder-coat colours in matt or gloss are also available on request. Ask for Matt or Greg on 01782 617517 or email sales@homeofclay.co.uk and we will come back to you the same working day.

Key features

Floating bars on the heating — The look of a floating rail with the running cost of the central heating; suitable for open (hot water) and closed (central heating) systems.
Installation frame option — The INF1 frame is fixed at first fix behind the wall panel, with connections projecting through the finished surface for the bars to fit onto.
Valves — Designed for Bard & Brazier's concealed valves, ordered separately.
Handmade in England — Built individually by hand in Wolverhampton from high-quality milled brass.
Silver soldered joints — Bard & Brazier use silver solder exclusively for cleaner, stronger joints.
Pressure tested three times — Each rail is tested at 6 bar after construction, after polishing and again before packing.

Technical information

Brand: Bard & Brazier
Range: La Fayette floating
Product code: FLF1-1 to FLF1-5 + INF1-1 to INF1-5
Product type: Floating hydronic towel rail, wall mounted
Bar length: 585mm flange to flange
Overall size: 1 bar 585mm; 2 bars 585 x 205mm; 3 bars 585 x 365mm; 4 bars 585 x 525mm; 5 bars 585 x 685mm
Heat output: 1 bar 145 Btu/h, 2 bar 290 Btu/h, 3 bar 435 Btu/h, 4 bar 580 Btu/h, 5 bar 725 Btu/h
System: Open (hot water) or closed (central heating)
Valves: Not included — Concealed Pullman or Panama recommended
Installation frame: INF1 — optional, choose in the Installation Frame option
Finishes: Polished Chrome, Polished Nickel, Polished Brass, Powder Coat Black, Brushed Nickel, Brushed Brass, Polished Copper, Champagne Gold, Antique Gold, London Bronze, Oil Rubbed Bronze, Hard Rubbed Gold
Made in: Wolverhampton, England
Availability: Made to order — confirm current lead time with us
Price: From £457.38 inc VAT (single bar with frame, Polished Chrome)
Product codes: 1 Bar / Polished Chrome / With installation frame FLF1-1-PC+INF1-1
1 Bar / Polished Chrome / Without installation frame FLF1-1-PC
1 Bar / Polished Nickel / With installation frame FLF1-1-PN+INF1-1
1 Bar / Polished Nickel / Without installation frame FLF1-1-PN
1 Bar / Polished Brass / With installation frame FLF1-1-PB+INF1-1
1 Bar / Polished Brass / Without installation frame FLF1-1-PB
1 Bar / Powder Coat Black / With installation frame FLF1-1-PCB+INF1-1
1 Bar / Powder Coat Black / Without installation frame FLF1-1-PCB
1 Bar / Brushed Nickel / With installation frame FLF1-1-BN+INF1-1
1 Bar / Brushed Nickel / Without installation frame FLF1-1-BN
1 Bar / Brushed Brass / With installation frame FLF1-1-BB+INF1-1
1 Bar / Brushed Brass / Without installation frame FLF1-1-BB
1 Bar / Polished Copper / With installation frame FLF1-1-CU+INF1-1
1 Bar / Polished Copper / Without installation frame FLF1-1-CU
1 Bar / Champagne Gold / With installation frame FLF1-1-CG+INF1-1
1 Bar / Champagne Gold / Without installation frame FLF1-1-CG
1 Bar / Antique Gold / With installation frame FLF1-1-AG+INF1-1
1 Bar / Antique Gold / Without installation frame FLF1-1-AG
1 Bar / London Bronze / With installation frame FLF1-1-LB+INF1-1
1 Bar / London Bronze / Without installation frame FLF1-1-LB
1 Bar / Oil Rubbed Bronze / With installation frame FLF1-1-ORB+INF1-1
1 Bar / Oil Rubbed Bronze / Without installation frame FLF1-1-ORB
1 Bar / Hard Rubbed Gold / With installation frame FLF1-1-HRG+INF1-1
1 Bar / Hard Rubbed Gold / Without installation frame FLF1-1-HRG
2 Bars / Polished Chrome / With installation frame FLF1-2-PC+INF1-2
2 Bars / Polished Chrome / Without installation frame FLF1-2-PC
2 Bars / Polished Nickel / With installation frame FLF1-2-PN+INF1-2
2 Bars / Polished Nickel / Without installation frame FLF1-2-PN
2 Bars / Polished Brass / With installation frame FLF1-2-PB+INF1-2
2 Bars / Polished Brass / Without installation frame FLF1-2-PB
2 Bars / Powder Coat Black / With installation frame FLF1-2-PCB+INF1-2
2 Bars / Powder Coat Black / Without installation frame FLF1-2-PCB
2 Bars / Brushed Nickel / With installation frame FLF1-2-BN+INF1-2
2 Bars / Brushed Nickel / Without installation frame FLF1-2-BN
2 Bars / Brushed Brass / With installation frame FLF1-2-BB+INF1-2
2 Bars / Brushed Brass / Without installation frame FLF1-2-BB
2 Bars / Polished Copper / With installation frame FLF1-2-CU+INF1-2
2 Bars / Polished Copper / Without installation frame FLF1-2-CU
2 Bars / Champagne Gold / With installation frame FLF1-2-CG+INF1-2
2 Bars / Champagne Gold / Without installation frame FLF1-2-CG
2 Bars / Antique Gold / With installation frame FLF1-2-AG+INF1-2
2 Bars / Antique Gold / Without installation frame FLF1-2-AG
2 Bars / London Bronze / With installation frame FLF1-2-LB+INF1-2
2 Bars / London Bronze / Without installation frame FLF1-2-LB
2 Bars / Oil Rubbed Bronze / With installation frame FLF1-2-ORB+INF1-2
2 Bars / Oil Rubbed Bronze / Without installation frame FLF1-2-ORB
2 Bars / Hard Rubbed Gold / With installation frame FLF1-2-HRG+INF1-2
2 Bars / Hard Rubbed Gold / Without installation frame FLF1-2-HRG
3 Bars / Polished Chrome / With installation frame FLF1-3-PC+INF1-3
3 Bars / Polished Chrome / Without installation frame FLF1-3-PC
3 Bars / Polished Nickel / With installation frame FLF1-3-PN+INF1-3
3 Bars / Polished Nickel / Without installation frame FLF1-3-PN
3 Bars / Polished Brass / With installation frame FLF1-3-PB+INF1-3
3 Bars / Polished Brass / Without installation frame FLF1-3-PB
3 Bars / Powder Coat Black / With installation frame FLF1-3-PCB+INF1-3
3 Bars / Powder Coat Black / Without installation frame FLF1-3-PCB
3 Bars / Brushed Nickel / With installation frame FLF1-3-BN+INF1-3
3 Bars / Brushed Nickel / Without installation frame FLF1-3-BN
3 Bars / Brushed Brass / With installation frame FLF1-3-BB+INF1-3
3 Bars / Brushed Brass / Without installation frame FLF1-3-BB
3 Bars / Polished Copper / With installation frame FLF1-3-CU+INF1-3
3 Bars / Polished Copper / Without installation frame FLF1-3-CU
3 Bars / Champagne Gold / With installation frame FLF1-3-CG+INF1-3
3 Bars / Champagne Gold / Without installation frame FLF1-3-CG
3 Bars / Antique Gold / With installation frame FLF1-3-AG+INF1-3
3 Bars / Antique Gold / Without installation frame FLF1-3-AG
3 Bars / London Bronze / With installation frame FLF1-3-LB+INF1-3
3 Bars / London Bronze / Without installation frame FLF1-3-LB
3 Bars / Oil Rubbed Bronze / With installation frame FLF1-3-ORB+INF1-3
3 Bars / Oil Rubbed Bronze / Without installation frame FLF1-3-ORB
3 Bars / Hard Rubbed Gold / With installation frame FLF1-3-HRG+INF1-3
3 Bars / Hard Rubbed Gold / Without installation frame FLF1-3-HRG
4 Bars / Polished Chrome / With installation frame FLF1-4-PC+INF1-4
4 Bars / Polished Chrome / Without installation frame FLF1-4-PC
4 Bars / Polished Nickel / With installation frame FLF1-4-PN+INF1-4
4 Bars / Polished Nickel / Without installation frame FLF1-4-PN
4 Bars / Polished Brass / With installation frame FLF1-4-PB+INF1-4
4 Bars / Polished Brass / Without installation frame FLF1-4-PB
4 Bars / Powder Coat Black / With installation frame FLF1-4-PCB+INF1-4
4 Bars / Powder Coat Black / Without installation frame FLF1-4-PCB
4 Bars / Brushed Nickel / With installation frame FLF1-4-BN+INF1-4
4 Bars / Brushed Nickel / Without installation frame FLF1-4-BN
4 Bars / Brushed Brass / With installation frame FLF1-4-BB+INF1-4
4 Bars / Brushed Brass / Without installation frame FLF1-4-BB
4 Bars / Polished Copper / With installation frame FLF1-4-CU+INF1-4
4 Bars / Polished Copper / Without installation frame FLF1-4-CU
4 Bars / Champagne Gold / With installation frame FLF1-4-CG+INF1-4
4 Bars / Champagne Gold / Without installation frame FLF1-4-CG
4 Bars / Antique Gold / With installation frame FLF1-4-AG+INF1-4
4 Bars / Antique Gold / Without installation frame FLF1-4-AG
4 Bars / London Bronze / With installation frame FLF1-4-LB+INF1-4
4 Bars / London Bronze / Without installation frame FLF1-4-LB
4 Bars / Oil Rubbed Bronze / With installation frame FLF1-4-ORB+INF1-4
4 Bars / Oil Rubbed Bronze / Without installation frame FLF1-4-ORB
4 Bars / Hard Rubbed Gold / With installation frame FLF1-4-HRG+INF1-4
4 Bars / Hard Rubbed Gold / Without installation frame FLF1-4-HRG
5 Bars / Polished Chrome / With installation frame FLF1-5-PC+INF1-5
5 Bars / Polished Chrome / Without installation frame FLF1-5-PC
5 Bars / Polished Nickel / With installation frame FLF1-5-PN+INF1-5
5 Bars / Polished Nickel / Without installation frame FLF1-5-PN
5 Bars / Polished Brass / With installation frame FLF1-5-PB+INF1-5
5 Bars / Polished Brass / Without installation frame FLF1-5-PB
5 Bars / Powder Coat Black / With installation frame FLF1-5-PCB+INF1-5
5 Bars / Powder Coat Black / Without installation frame FLF1-5-PCB
5 Bars / Brushed Nickel / With installation frame FLF1-5-BN+INF1-5
5 Bars / Brushed Nickel / Without installation frame FLF1-5-BN
5 Bars / Brushed Brass / With installation frame FLF1-5-BB+INF1-5
5 Bars / Brushed Brass / Without installation frame FLF1-5-BB
5 Bars / Polished Copper / With installation frame FLF1-5-CU+INF1-5
5 Bars / Polished Copper / Without installation frame FLF1-5-CU
5 Bars / Champagne Gold / With installation frame FLF1-5-CG+INF1-5
5 Bars / Champagne Gold / Without installation frame FLF1-5-CG
5 Bars / Antique Gold / With installation frame FLF1-5-AG+INF1-5
5 Bars / Antique Gold / Without installation frame FLF1-5-AG
5 Bars / London Bronze / With installation frame FLF1-5-LB+INF1-5
5 Bars / London Bronze / Without installation frame FLF1-5-LB
5 Bars / Oil Rubbed Bronze / With installation frame FLF1-5-ORB+INF1-5
5 Bars / Oil Rubbed Bronze / Without installation frame FLF1-5-ORB
5 Bars / Hard Rubbed Gold / With installation frame FLF1-5-HRG+INF1-5
5 Bars / Hard Rubbed Gold / Without installation frame FLF1-5-HRG

The installation frame has to go in at first fix, before boarding and tiling, so decide the number of bars and their position early. Valves are not included. Bard & Brazier recommend the Concealed Pullman or Concealed Panama valves, which sit flush on the wall panel.
