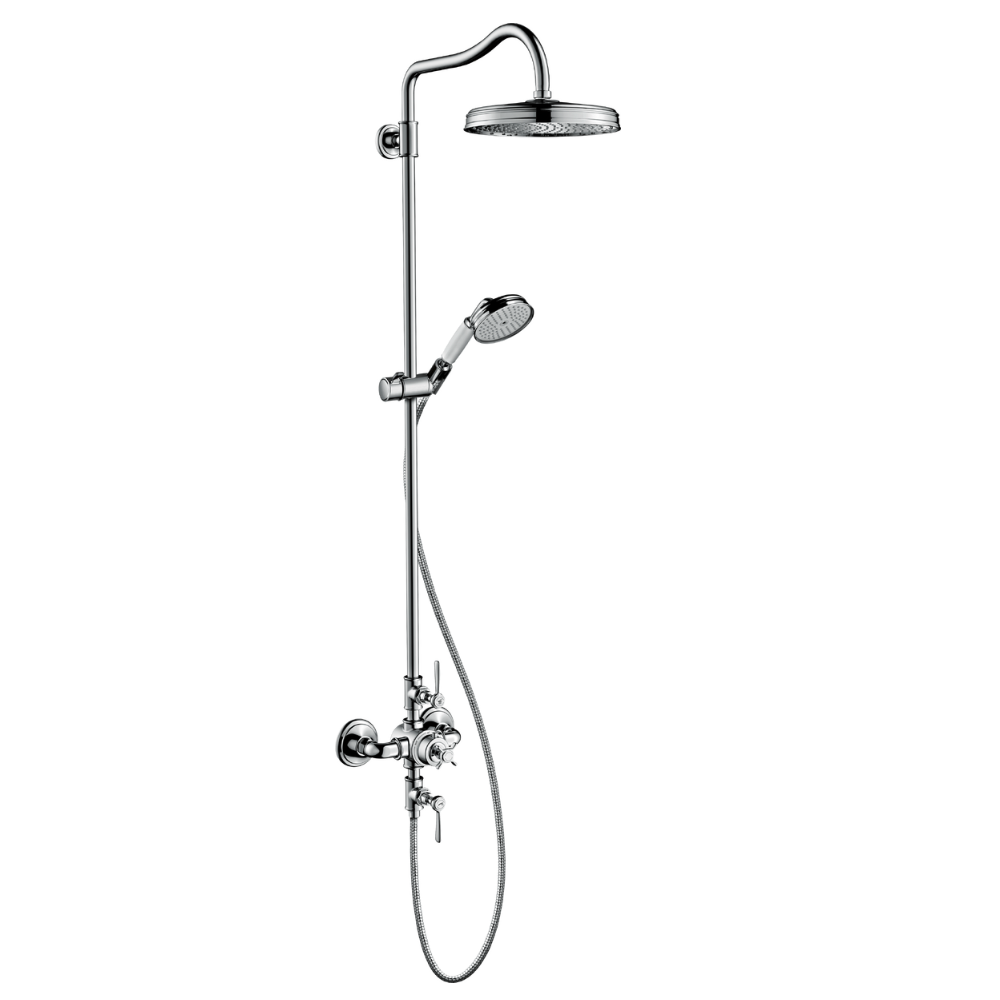

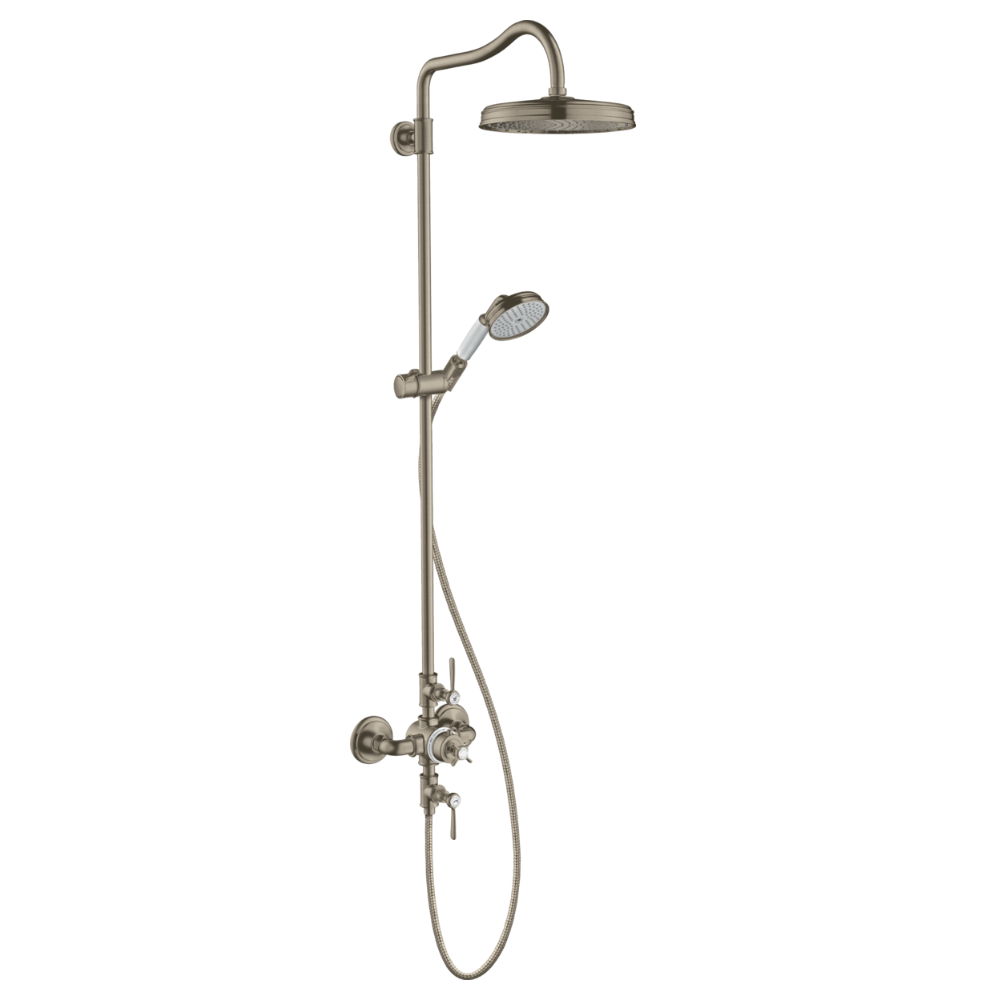

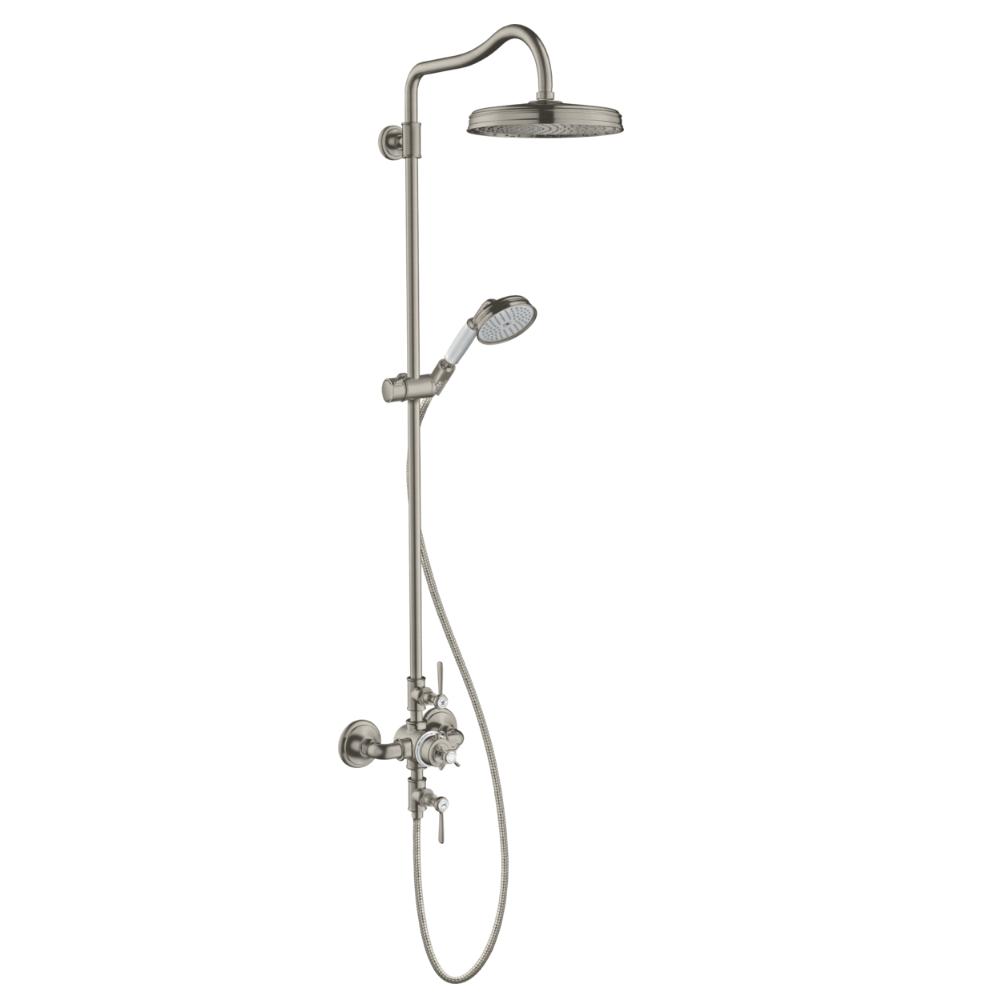

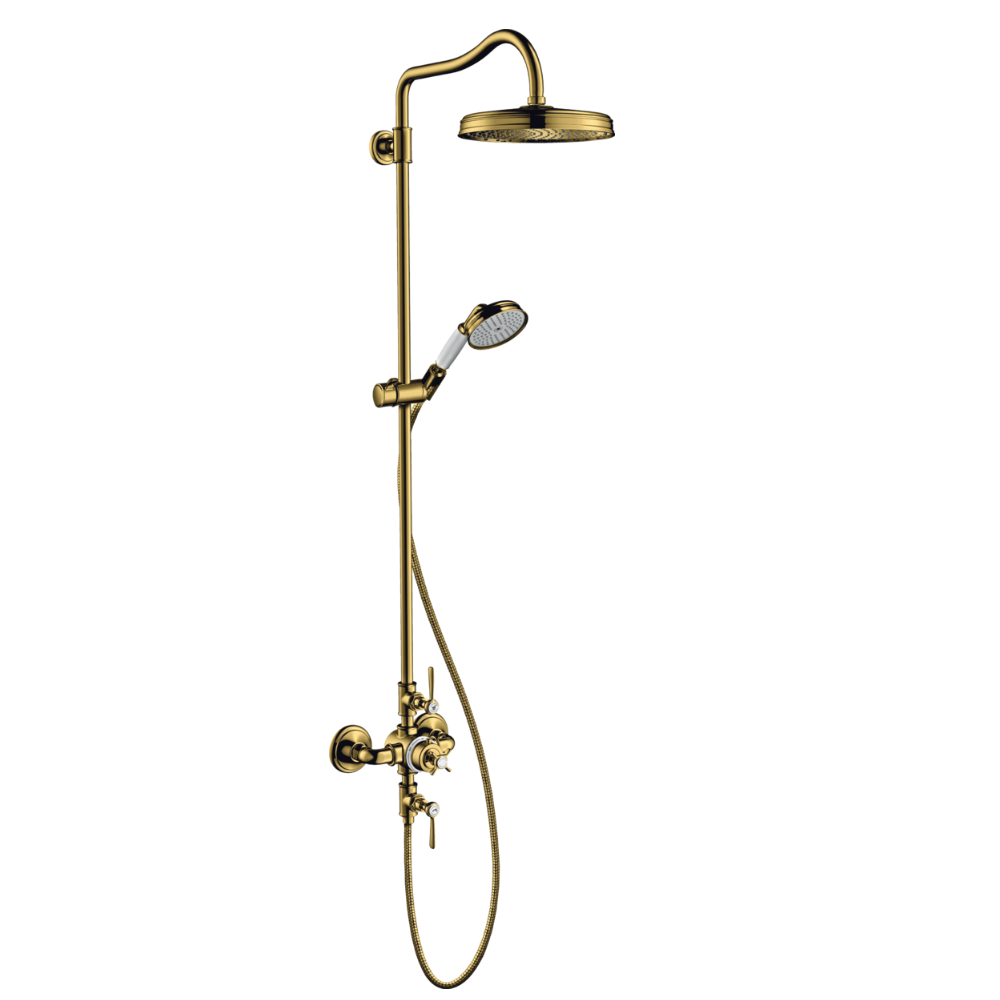

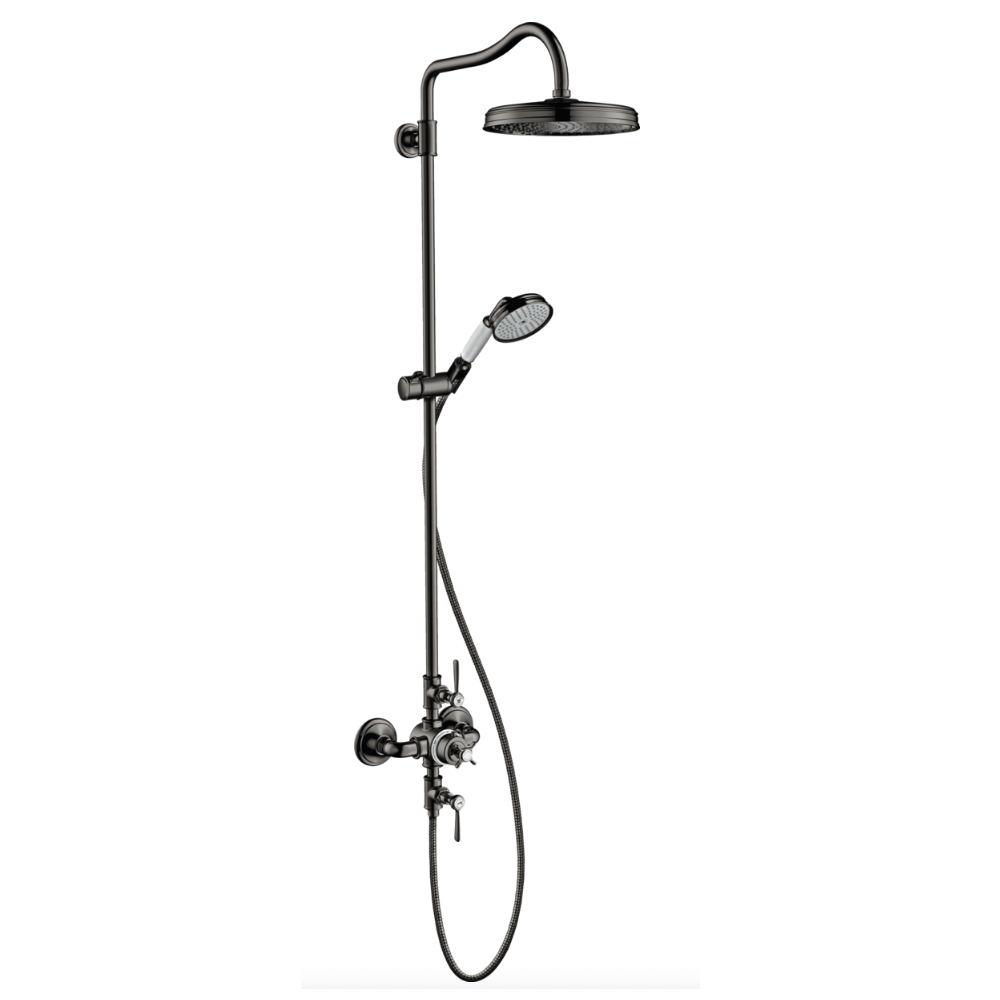

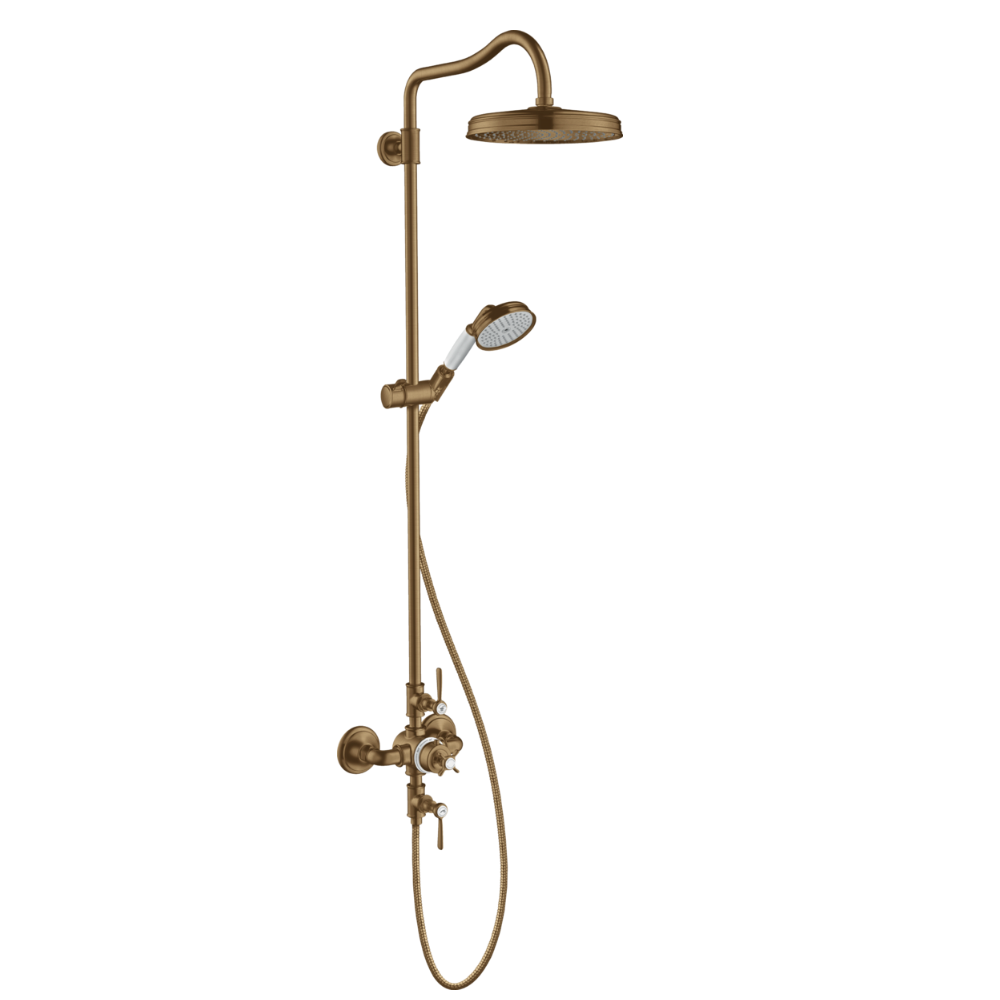

AXOR Montreux Showerpipe with thermostatic mixer and 1jet overhead shower 240

SHOWER SYSTEM SPECIFICATIONS

• Consists of: overhead shower, hand shower, thermostatic shower mixer, shower hose, slider, shower rail
• Shower head size (overhead shower): 240 mm
• Spray type (overhead shower): RainAir
• Flow rate RainAir (overhead shower): 14 l/min at 3 bar
• Spray type (hand shower): RainAir
• Flow rate (hand shower) at 3 bar: 13.3 l/min
• Maximum flow rate for Showerpipe at 3 bar: 22.4 l/min
• Minimum operating pressure: 1 bar
• Maximum operating pressure: 10 bar
• Height-adjustable slider
• Shower arm length (overhead shower): 450 mm
• Swivel shower arm
• Thermostatic mixer: AXOR Montreux
• SafetyStop at 40°C
• Adjustable hot water limitation
• Outlets controlled via turning the handle
• Exposed installation
• Connection dimension: DN15
• Connection thread: G ½
• Centre distance: 170 ± 32 mm
• Intrinsically safe against backflow
• Shower rail diameter: 22 mm
• Number of outlets: 2
• WRAS approval: 2304037
