Impey Aqua-Dec Linear 2 Wetroom Floor Former (Various Sizes)
Choose your drain

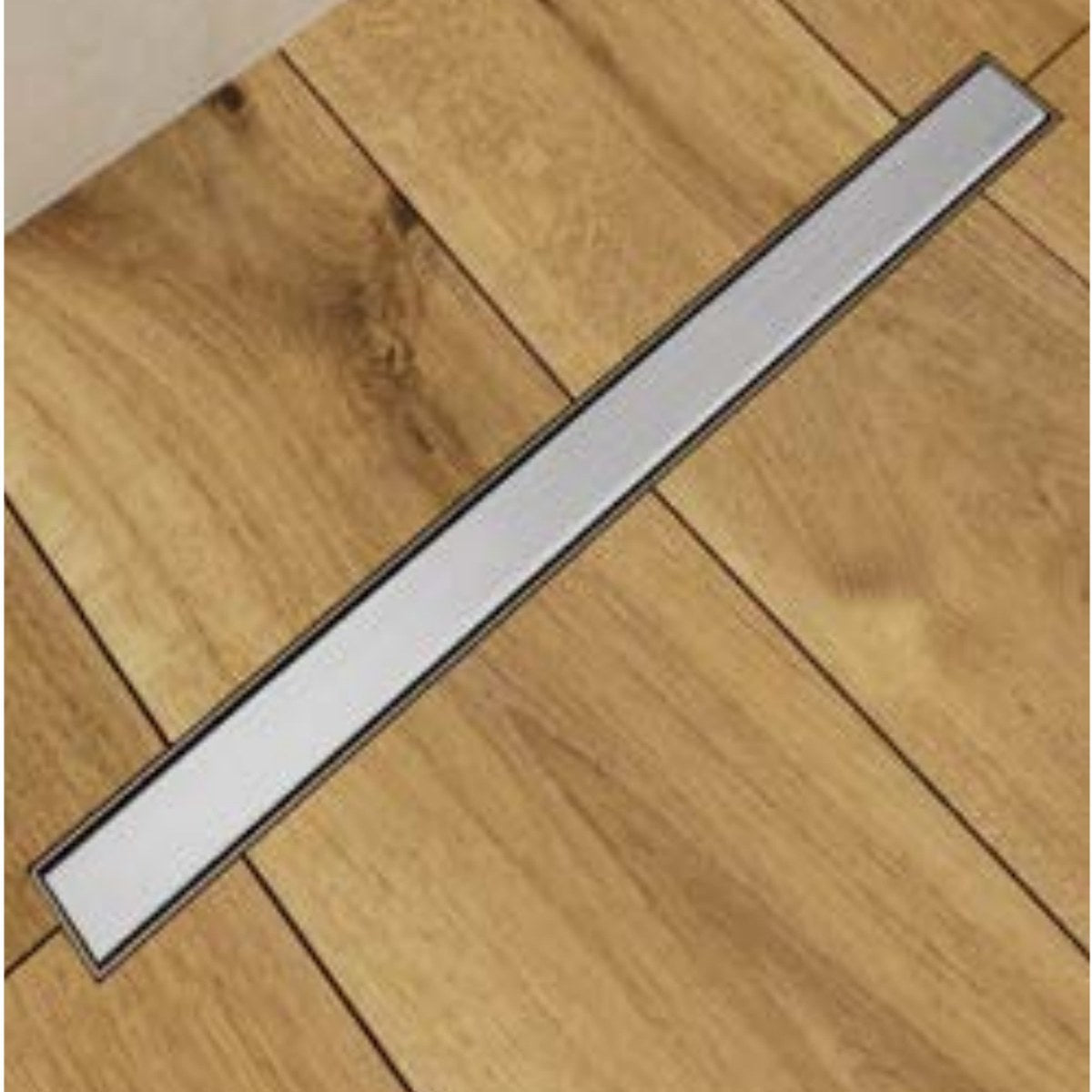

This former needs an Impey 600mm linear drain, sold separately. Choose a finish:
-
Element Brushed Stainless
from £157.10
-
Element Brushed Gold
from £338.08
-
Element Brushed Black
from £338.08
-
Polished Stainless
from £412.57
-
Black Metallic Glass
from £286.94
-
Connect
from £280.77
-
Morse
from £246.03
- Echo Echo from £456.58
- Marrakesh Marrakesh from £484.42
-
Mirage Polished Gold
from £790.09
-
Mirage Polished Black
from £790.09
-
Tiled Insert 13mm
from £203.52
-
Tiled Insert 24mm
from £238.34
- Free deliveryon orders over £500
- Price matchguarantee
- Expert adviceavailable
Product description
The Impey Aqua-Dec Linear 2 wetroom floor former is designed for corner and alcove installations, using two gradients to direct water efficiently towards a 600mm linear drain without the need for diagonal tile cuts.
Now trimmable, it gives extra flexibility on site while keeping a clean, structured tile layout. Where the raised edge(s) meet a wall, the former must be rebated into the wall(s). All Aqua-Dec Linear formers have an average 1 in 40 gradient and a maximum flow rate of 35–40 l/min.
Please note: Impey wetroom floor formers and drains are sold separately — a compatible Impey drain is required to complete the installation.
Add WaterGuard™ tanking
Impey's Lifetime Watertight Guarantee requires the entire wetroom floor to be tanked with Impey WaterGuard™. Choose a WaterGuard kit with your former, sized to the area you're tanking:
- 5m² floor kit (WG5) — 5m² membrane, 500ml BAL primer, 15m jointing tape, 5 internal corners, 1 external corner, butyl sealant
- 10m² floor kit (WG10) — 10m² membrane, 500ml BAL primer, 2 x 10m jointing tape, 5 internal corners, 1 external corner, butyl sealant
- 15m² wall & floor kit (WG15WF) — 5m² + 10m² membrane, 2 x 500ml BAL primer, 15m + 10m jointing tape, 5 internal corners, 1 external corner, 2 x butyl sealant
- 20m² wall & floor kit (WG20WF) — 2 x 10m² membrane, 2 x 500ml BAL primer, 3 x 10m jointing tape, 5 internal corners, 1 external corner, 2 x butyl sealant
WaterGuard™ is a 1mm self-adhesive tanking and decoupling membrane — no drying time, suitable for large-format tiles up to 30kg/m² and compatible with Aqua-Mat™ underfloor heating. Floor coverage is mandatory for the guarantee; tanking the shower-area walls as well is recommended.
Lead time: 2–5 working days from order.
Key features
- Ideal for corner or alcove installations

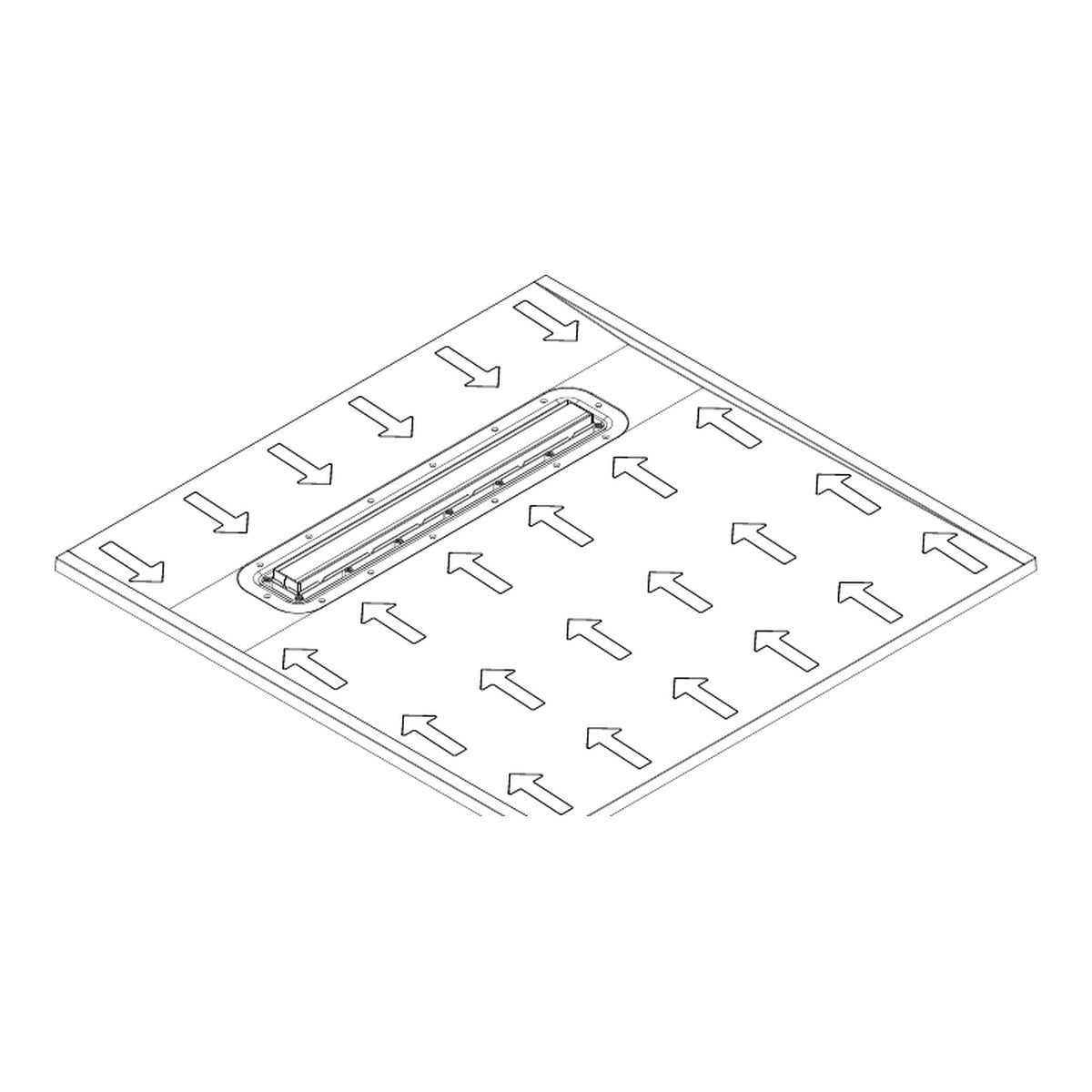

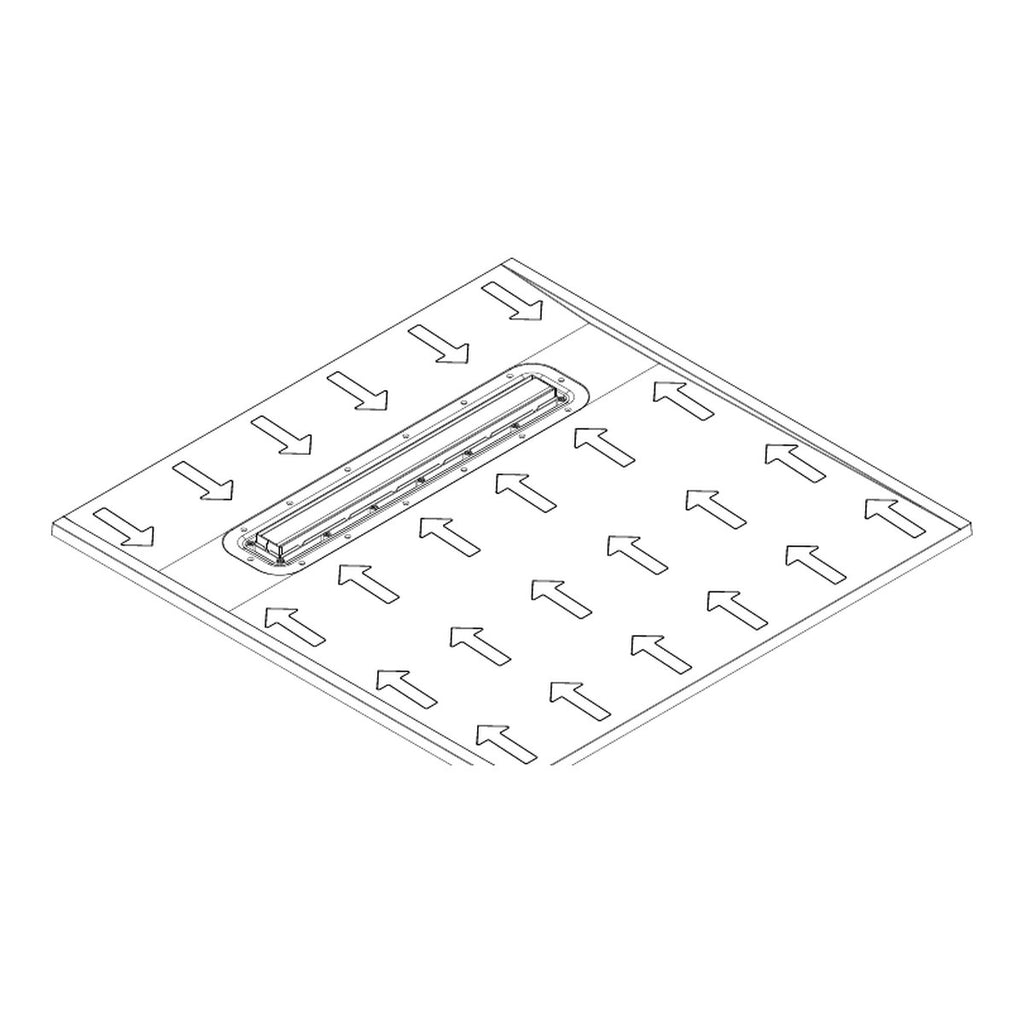

- Two gradients leading to the drain
- No diagonal tile cuts required
- 22mm thick
- 600mm linear drain, positioned 244mm from the wall
- Trimmable (see Impey trimming guidance)
- Suitable for timber or concrete floors
- Underboarding with 18mm plyboard required
- Two sump positions to help avoid pipework and joists
- Lifetime Watertight Guarantee when completed with Impey WaterGuard™
- Manufactured in the UK
Technical information
- Brand
- Impey
- Range
- Aqua-Dec Linear
- Model
- Aqua-Dec Linear 2™

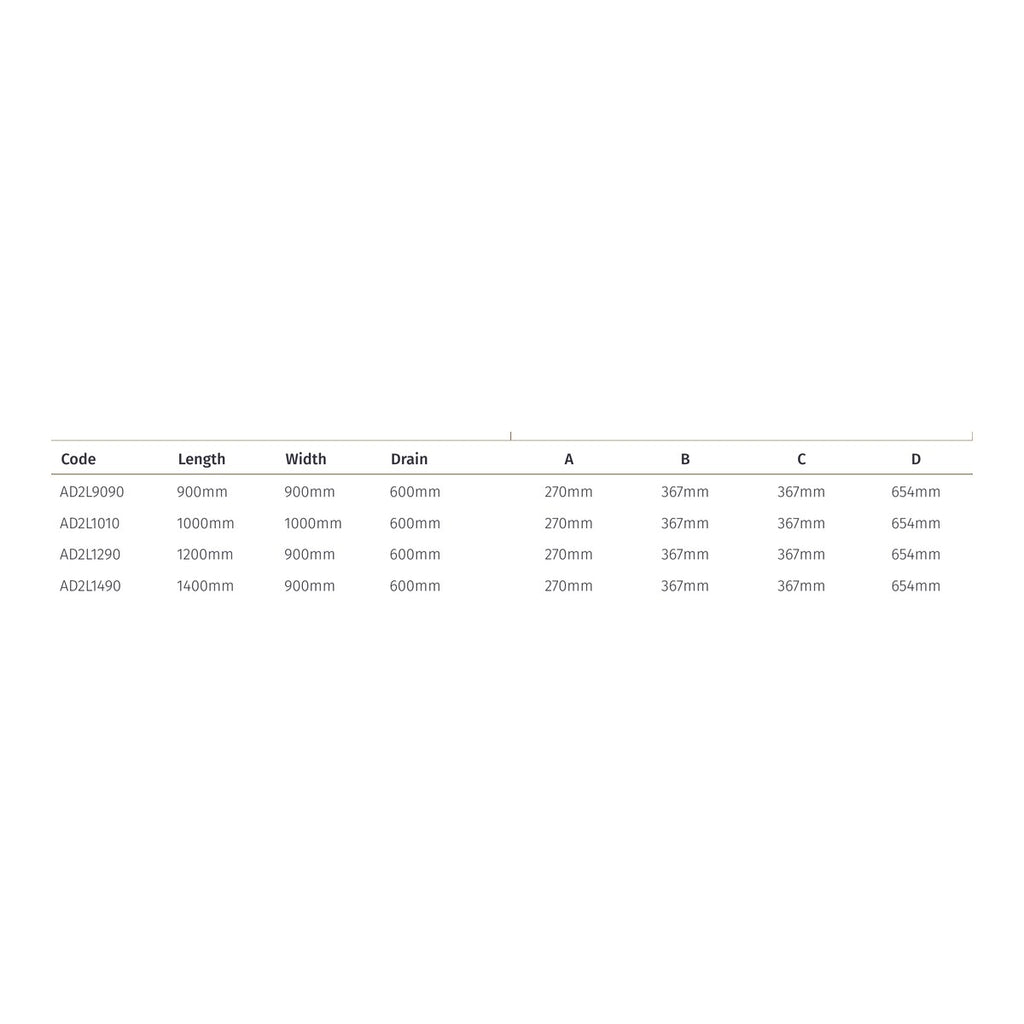

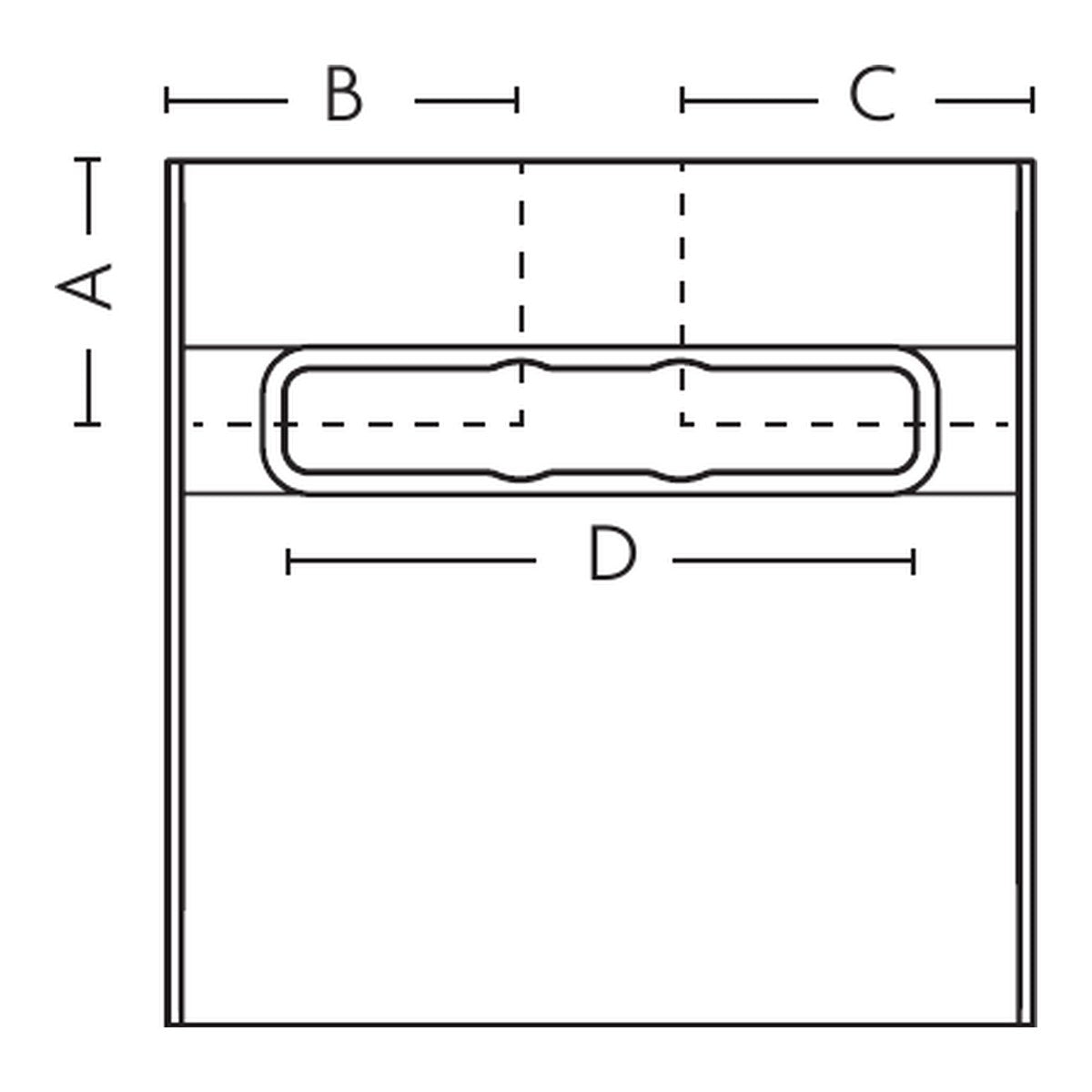

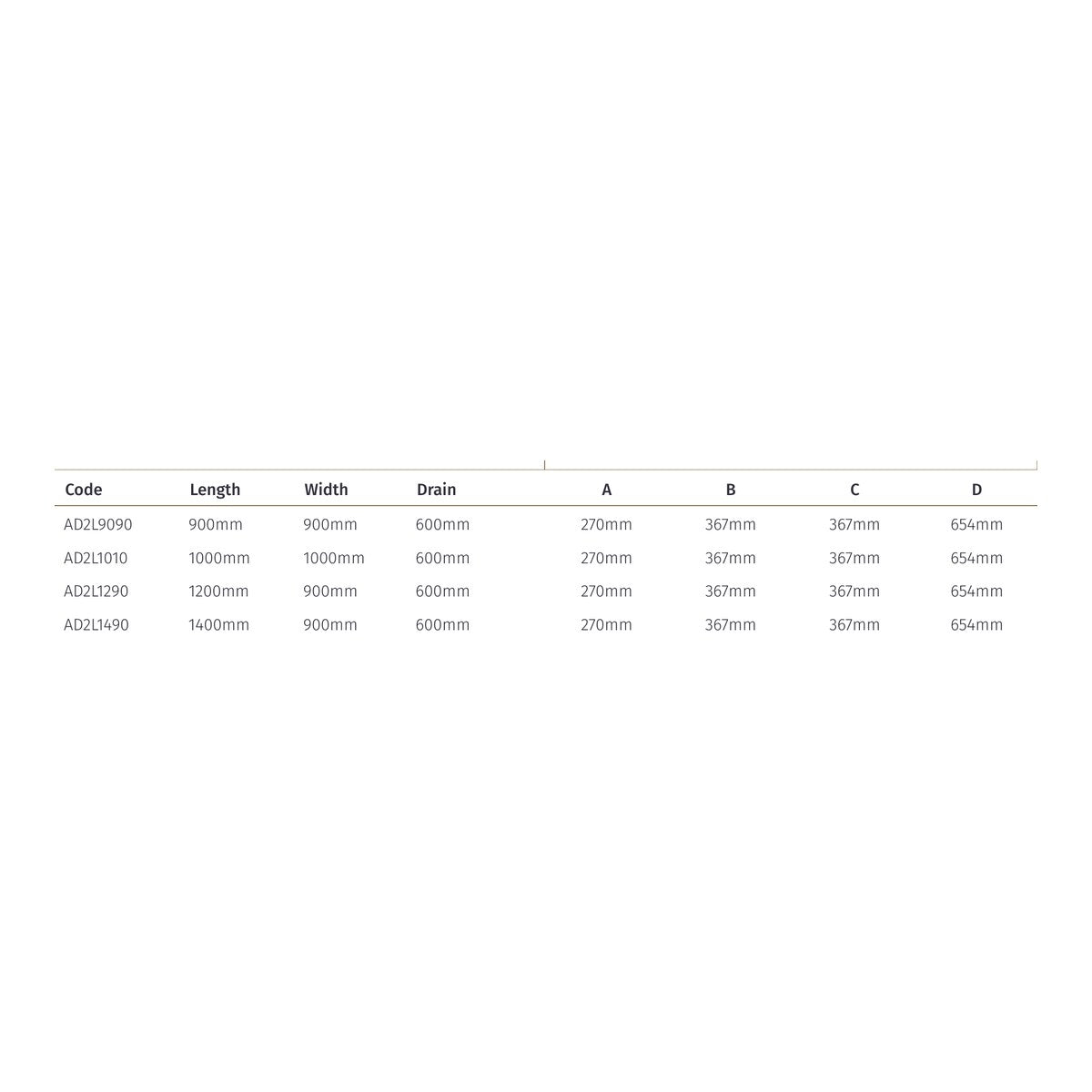

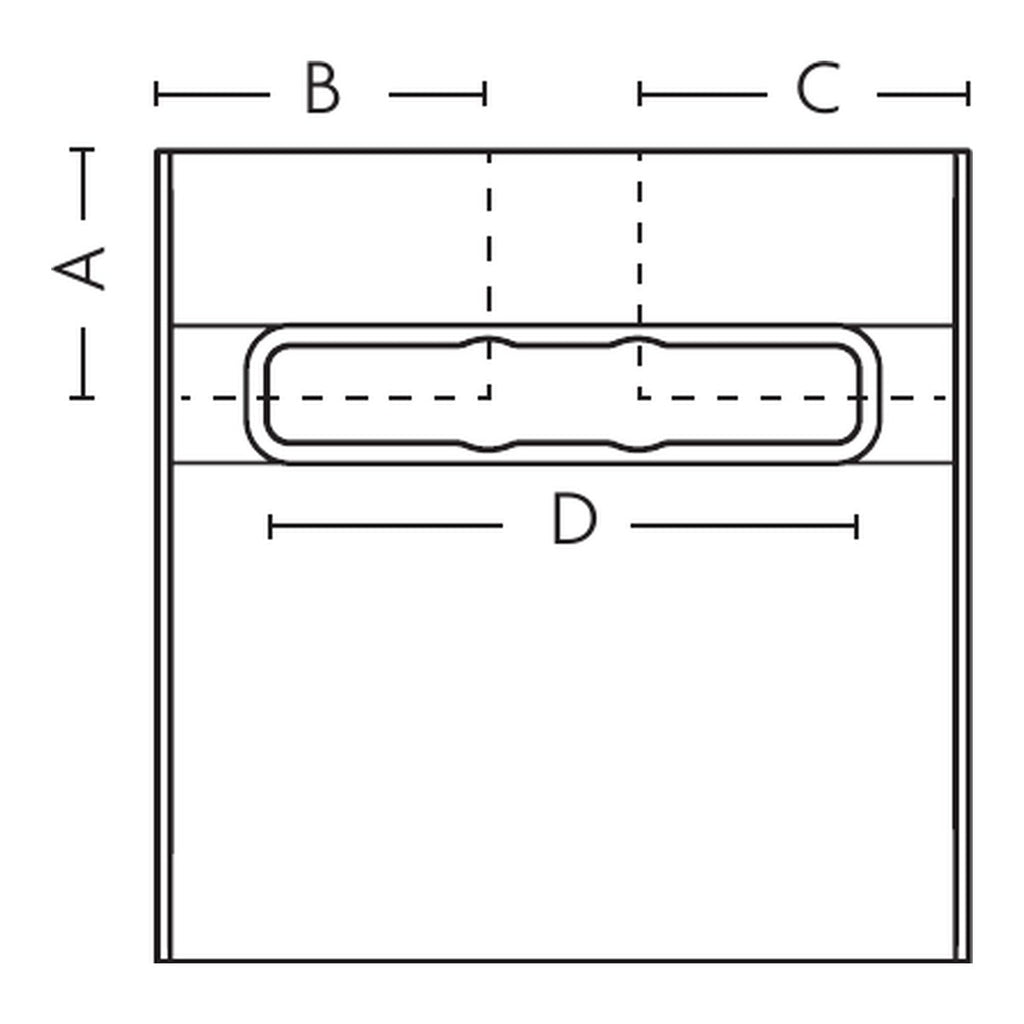

- Sizes
- AD2L9090: 900 x 900mm, 600mm drain (drain centre A 270mm, B 367mm, C 367mm, D 654mm)
- AD2L1010: 1000 x 1000mm, 600mm drain (drain centre A 270mm, B 367mm, C 367mm, D 654mm)
- AD2L1290: 1200 x 900mm, 600mm drain (drain centre A 270mm, B 367mm, C 367mm, D 654mm)
- AD2L1490: 1400 x 900mm, 600mm drain (drain centre A 270mm, B 367mm, C 367mm, D 654mm)
- Thickness
- 22mm
- Gradients
- 2
- Average gradient
- 1 in 40
- Maximum flow rate
- 35–40 l/min
- Linear drain
- 600mm
- Drain position
- 244mm from the wall
- Trimmable
- Yes
- Subfloor
- Timber or concrete (18mm plyboard underboarding required)
- Floor finish
- Tiled
- Drain
- Sold separately — compatible Impey linear drain required
- Guarantee
- Lifetime Watertight Guarantee when completed with Impey WaterGuard™
- Made in
- United Kingdom
- Product codes
- 900 x 900mm / No tanking kit AD2L9090
- 900 x 900mm / WaterGuard 5m² floor kit AD2L9090 + WG5.
- 900 x 900mm / WaterGuard 10m² floor kit AD2L9090 + WG10.
- 900 x 900mm / WaterGuard 15m² wall & floor kit AD2L9090 + WG15WF
- 900 x 900mm / WaterGuard 20m² wall & floor kit AD2L9090 + WG20WF
- 1000 x 1000mm / No tanking kit AD2L1010
- 1000 x 1000mm / WaterGuard 5m² floor kit AD2L1010 + WG5.
- 1000 x 1000mm / WaterGuard 10m² floor kit AD2L1010 + WG10.
- 1000 x 1000mm / WaterGuard 15m² wall & floor kit AD2L1010 + WG15WF
- 1000 x 1000mm / WaterGuard 20m² wall & floor kit AD2L1010 + WG20WF
- 1200 x 900mm / No tanking kit AD2L1290
- 1200 x 900mm / WaterGuard 5m² floor kit AD2L1290 + WG5.
- 1200 x 900mm / WaterGuard 10m² floor kit AD2L1290 + WG10.
- 1200 x 900mm / WaterGuard 15m² wall & floor kit AD2L1290 + WG15WF
- 1200 x 900mm / WaterGuard 20m² wall & floor kit AD2L1290 + WG20WF
- 1400 x 900mm / No tanking kit AD2L1490
- 1400 x 900mm / WaterGuard 5m² floor kit AD2L1490 + WG5.
- 1400 x 900mm / WaterGuard 10m² floor kit AD2L1490 + WG10.
- 1400 x 900mm / WaterGuard 15m² wall & floor kit AD2L1490 + WG15WF
- 1400 x 900mm / WaterGuard 20m² wall & floor kit AD2L1490 + WG20WF
Downloads
- Product data sheetPDF – Manufacturer product data sheet Download
